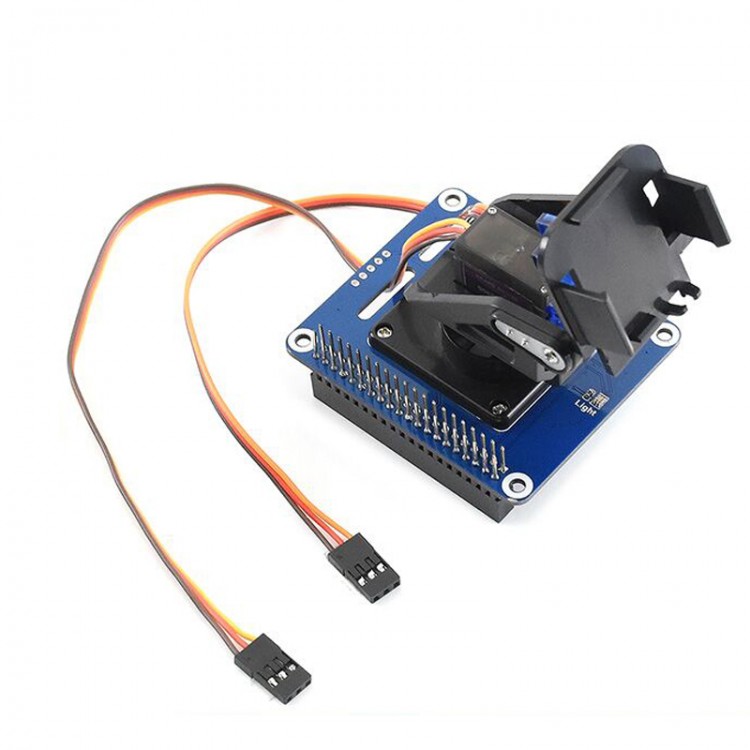

2DOF Pan Tilt Kit Expansion Board Unassembled PCA9685 TSL2581 Ambient Light Sensor For Raspberry Pi
Description:
It is a 2DOF pan/tilt expansion board specially designed for Raspberry P. With onboard PCA9685 chip and TSL2581 ambient light sensor, it can realize pan/tilt rotation and light intensity detection through I2C interface control.
Features:
- Based on interface for Raspberry Pi 40pin GPIO, suitable for Raspberry Pi series motherboards
- I2C interface control, only 2 signal lines are needed to realize pan-tilt rotation and light intensity detection
- Onboard PCA9685 chip can output 12-bit resolution PWM to control pan/tilt rotation
- Onboard TSL2581FN, built-in ADC, can get the response like human eye to light, and assist the module work
- Onboard level conversion circuit, compatible with 3.3V/5V working level
- Matching special acrylic board for fixing camera for Raspberry Pi, easy to install
- Provide complete supporting information manuals (sample programs, user manuals, etc.)
Development Resources
Wiki: www.waveshare.com/wiki/Pan-Tilt_HAT
Parameters:
- PWM driver chip: PCA9685
- PWM resolution: 12bit
- Ambient light sensor: TSL2581FN
- Ambient light resolution: 16bit
- Communication interface: I2C
- Working voltage: 3.3V/5V

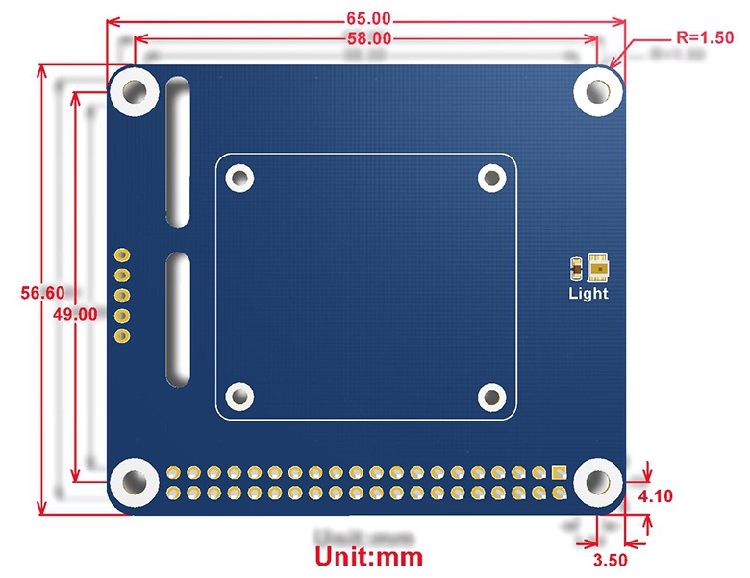

- Product size: 56.6mm x 65mm
Package Included:
- 1 x Pan-Tilt HAT
- 1 x 2DOF Pan-Tilt Kit
- 1 x Set of SG90 Servo
- 1 x Set of MG90S Servo
- 1 x Acrylic Board
- 1 x Bag of M2 Screw
- 1 x Bag of RPi Copper Pillars (2 Sets)
Note:

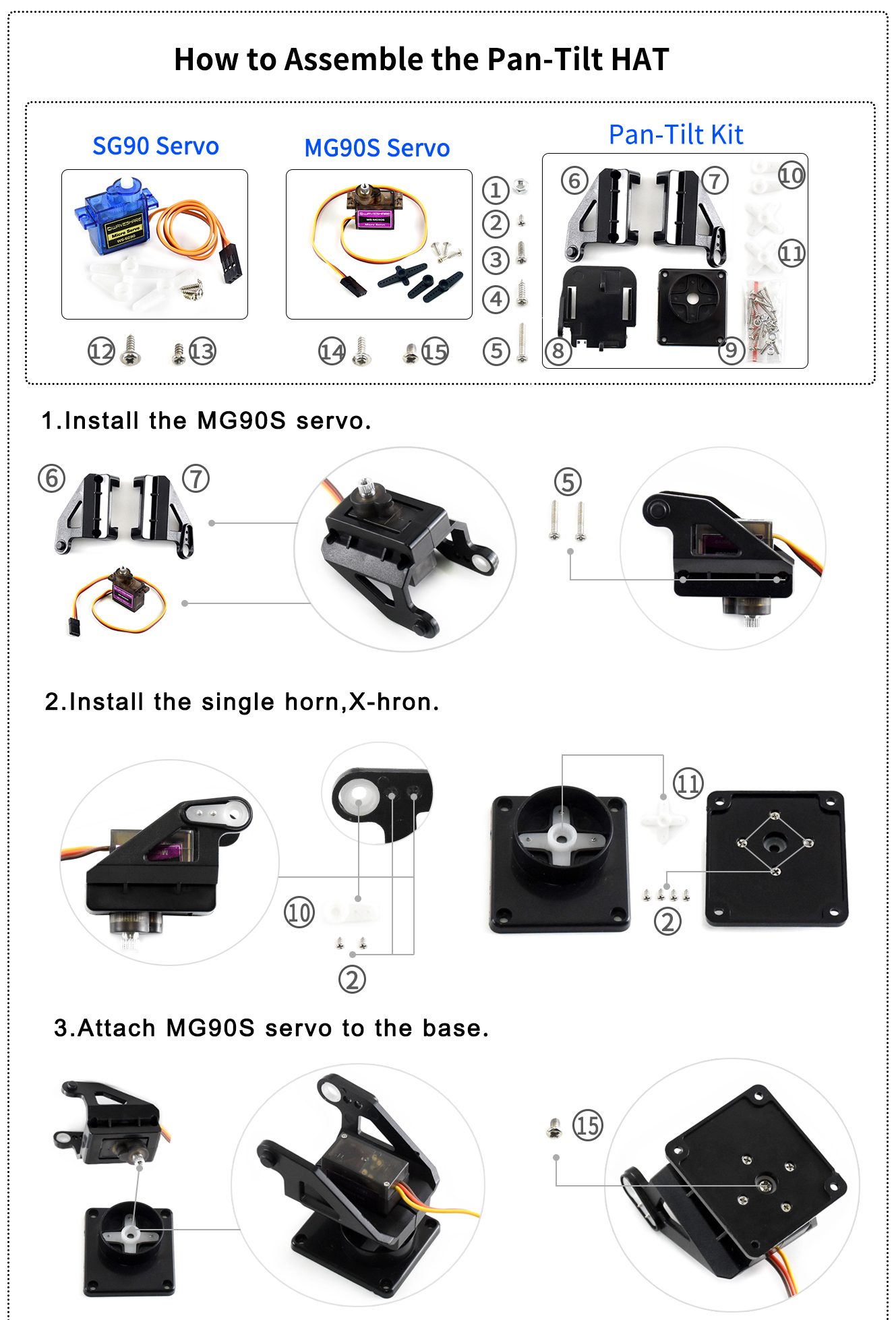

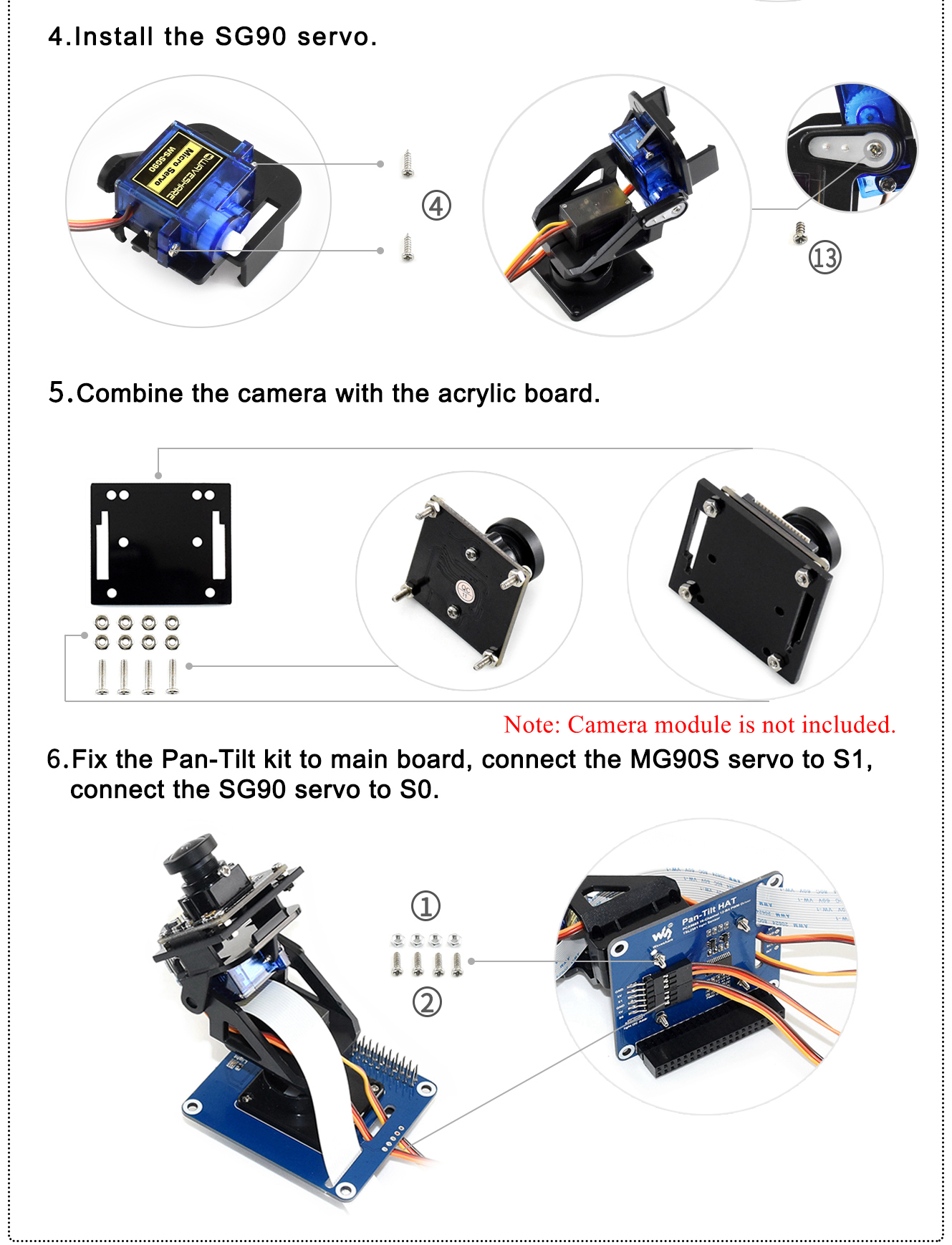

- Assembling is needed.
- Board for Raspberry Pi and camera module are not included, please purchase separately.
