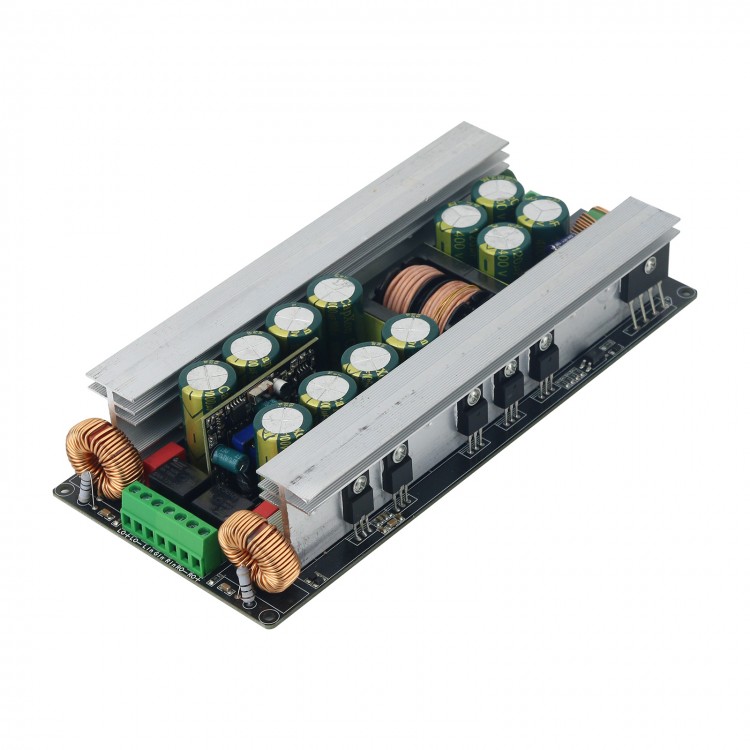

2x700W Stereo Digital Power Amplifier Board w/ Switching Power Supply Be Bridged Speaker Protection
The module adopts American digital power amplifier chip IRS2092S as the core and has been carefully designed for 2 years. The onboard high-power LLC resonant sine wave switching power supply has high power, high fidelity, high sound quality and low noise. It has over-current, over-temperature, short-circuit, speaker relay protection, no impact sound on and off, effectively protecting your expensive speakers. The board has a modular design, and some IC models have been polished and potted with glue.
- Input 220V AC
- 2*700W (2*700W connected to 4 ohms; 2*350W connected to 8 ohms; bridge connection 1*1400W, bridge connection can only be connected to 8 ohms, not 4 ohms)
- Product type: 2x700W
- Board size: 209 x 96 x 38mm
- Net weight: 640g
- 1 x Set of Power Amplifier Module
- For high-power use, pay attention to ventilation and heat dissipation, you can add a fan.
Stereo/Bridge Mode Switch:
The board is stereo, or it can be bridged to mono. When it is connected to stereo, set the switch on the board to ST. And when it is connected to bridge, it is set to MO. The specific wiring is as follows:
