• 3.2" Nextion NX4024T032 USART UART TFT LCD Module Display Panel for Raspberry Pi 2 A+ B+ ARD Kits
  • 3.2" Nextion NX4024T032 USART UART TFT LCD Module Display Panel for Raspberry Pi 2 A+ B+ ARD Kits

3.2" Nextion NX4024T032 USART UART TFT LCD Module Display Panel for Raspberry Pi 2 A+ B+ ARD Kits

Tags: Nextion NX4024T032

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.28
  • Price in reward points: 613 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.05 $58.83 $56.99 $54.54 Contact US
Quantity:

3.2" Nextion NX4024T032 USART UART TFT LCD Module Display Panel for Raspberry Pi 2 A+ B+ ARD Kits




IDE Software

Description:
- Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process,machine,application or appliance.It is the best solution to replace the traditional LCD and LED Nixie tube.
- 3.2" Nextion NX4024T032 HMI TFT Intelligent Display Module Work For Raspberry Pi A+,B+ and Raspberry Pi 2 and DIY kits
Package include: a Nextion 3.2" display,a wire,a power supply test board.
- Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process,machine,application or appliance.It is the best solution to replace the traditional LCD and LED Nixie tube.

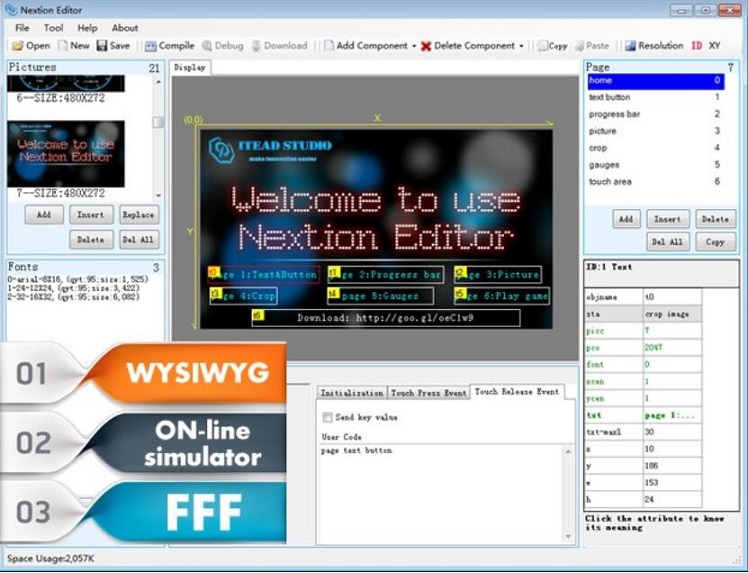

- This solution includes hardware part-a series of TFT boards and software part- Nextion editor.Nextion TFT board uses only one serial port to do communicating.Let you get rid of the wiring trouble.We notice that most engineers spend much time in application development but get unpleasant results.In this situation,Nextion editor has mass components such as button,text,progress bar,slider,instrument panel etc.to enrich your interface design.And the drag-and-drop function ensures that you spend less time in programming,which will reduce your 99% development workloads.With the help of this WYSIWYG editor,GUI designing is a piece of cake.
- It's easy to adapt Nextion family HMI to existing projects,you just need to provide it a UART.
- NX4024T032 is a powerful 3.2" HMI,which is member of Nextion family.
- A 3.2" TFT 400x240 resistive touch screen display,4M Flash,2KByte RAM,65k colors.

Features:
1.320x240 Resolution
2.RGB 65K true to life colours

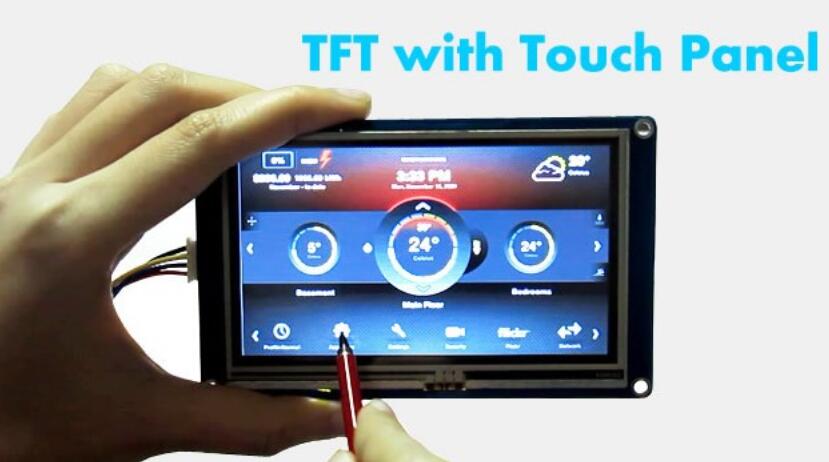

3.TFT Screen with integrated 4-wire Resistive Touch Panel
4.Easy 4 pin interface to any TTL Serial Host
5.4M Flash memory for User Application Code and Data
6.On board micro-SD card for firmware upgrade

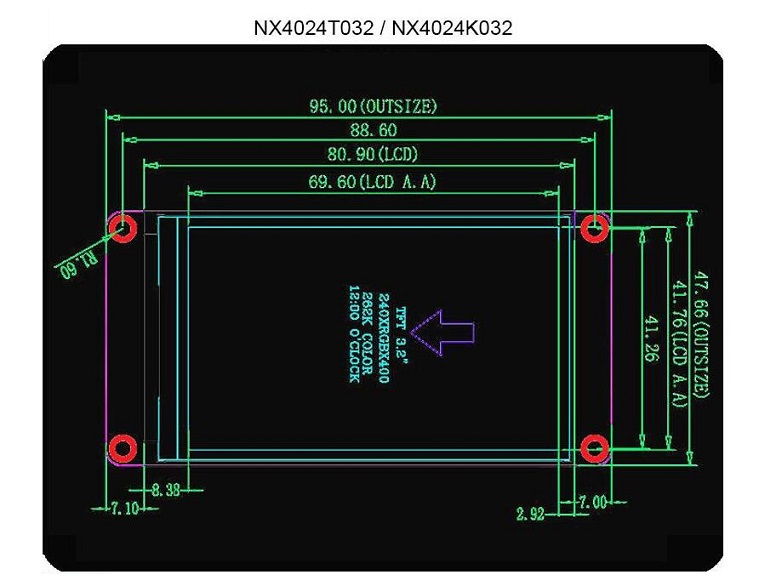

7.Visual Area: 69.60mm (L)x41.76mm (W)
8.Adjustable Brightness: 0~180 nit,the interval of adjustment is 1%

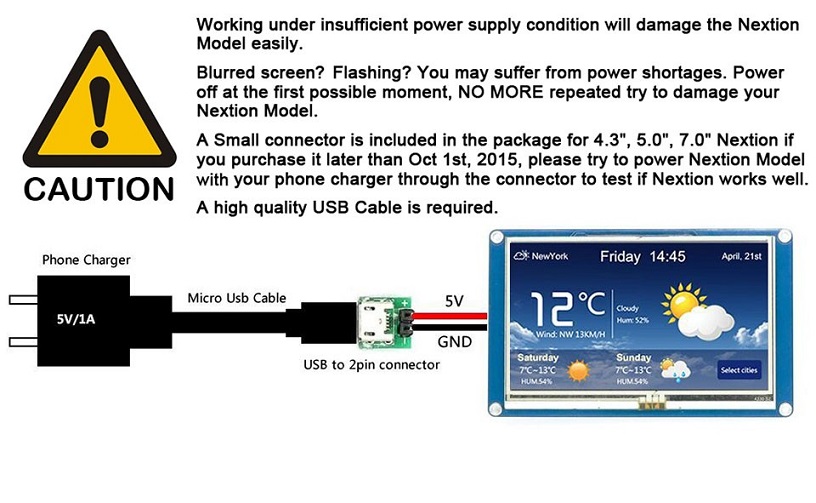

9.5V85mA DC recommended power supply

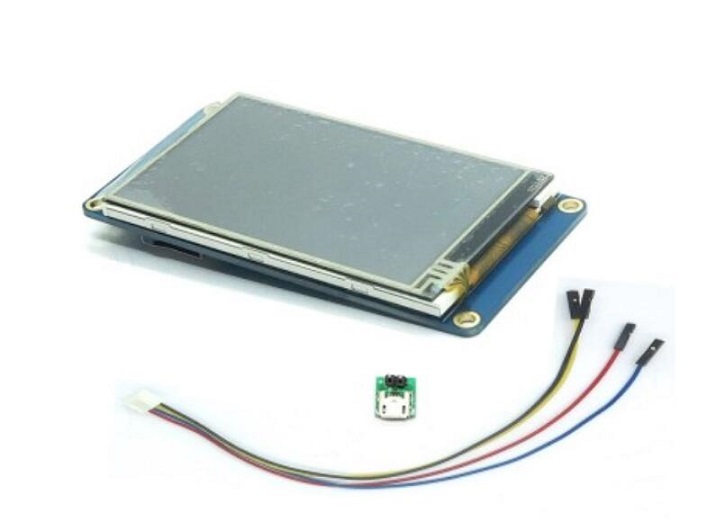

Package List:
- 1 x 3.2 "HMI LCD Display Module With Touch
- 1 x 4P Cable
- 1 x UB to 2pin connector
