3.5" inch TFT LCD Car Rear View Digital Monitor DVD VCR 2CHs Video Gadgets
Description:
- Size: 3.5 inch
- Resolution: 320 x RGB x 240 pixels
- Display mode: transmissive
- Outline dimension: 76.9 x 63.9 x 3.26mm
- Active Area: 70.08 x 52.56mm
- Viewing Direction: 6 O’clock
- Backlight: 6 chip LED backlight
- Interface: RGB interface
- Connecter pin: 54PIN
- Operating temperature: -20 to 60°C
- Storage temperature: -30 to 70°C
- Compliant with RoHS Directive
- Driver Board Function:

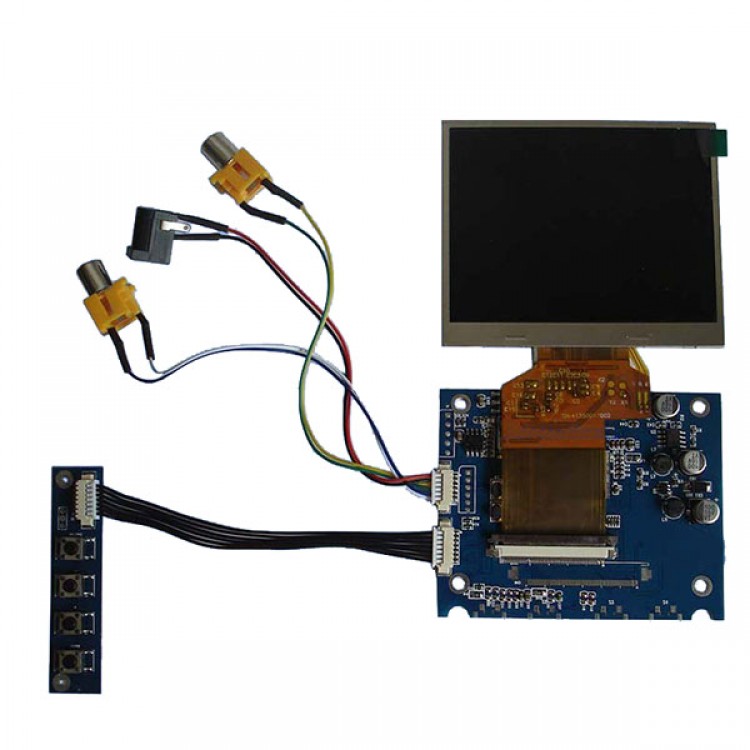

- YT-D1612 Driver board is mainly designed for 54PIN 3.5inch LCD panel.
Function Description:
- CVBS1 and CVBS2 Input Signal,
- Support the reversing switch mode,
- Multi Function Operation (Chinese and English)
- Power Supply: DC +6V to 16V,
- It is widely use for car monitor, visual intercom, video phone, monitoring equipment etc.
