3.5X Optical Zoom Gimbal Camera 4X Digital Zoom Gimbal 1.2MP with Tracking Function ZYX-T14X

3.5X Optical Zoom Gimbal Camera 4X Digital Zoom Gimbal 1.2MP with Tracking Function ZYX-T14X

Description:

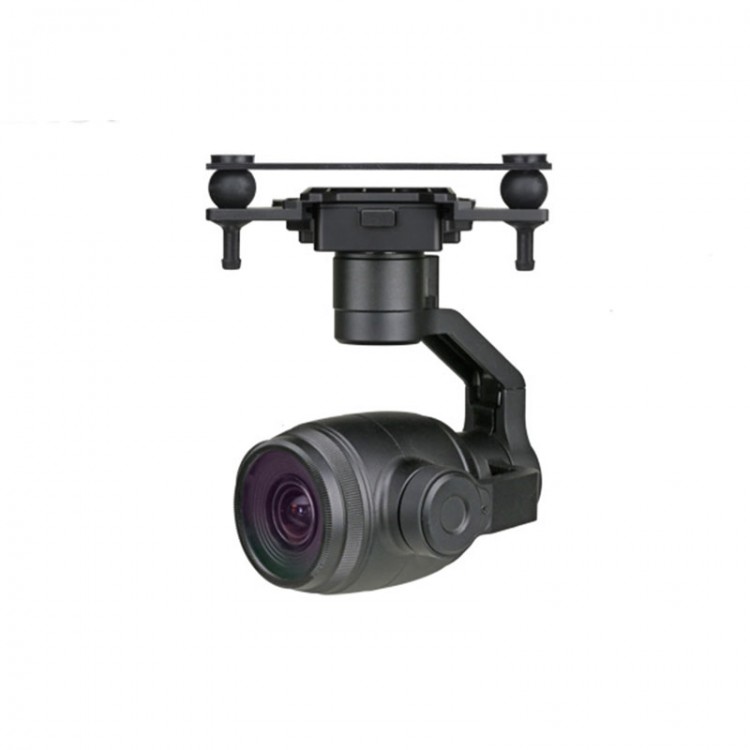

TAROT ZYX-T14X optical zoom brushless gimbal features a 3.5X optical zoom lens, a 1/2.3 sensor for CMOS, 12 million effective pixels, and a high-precision three-axis pan/tilt with target tracking function. It can be widely used in power inspection, survey, monitoring and other industries.

The optical zoom gimbal works with ZYX-T2C series network port data transmission system, 4G data link, 5.8G image transmission or other third-party manufacturers network video transmission systems, display images of full control of lens zoom, photo, video, gimbal control ((third-party network transmission system needs to support USB hotspot sharing or WIFI to be used on mobile phones) can be achieved on the ground PC computer, tablet for Android system, mobile phone system for Android.

Features:
1. High-precision cloud platform stabilization technology: High-precision control technology of cloud platform, stability accuracy of cloud platform reaches 0.008°
2. Modular quick demolition interface: Adopt standardized quick interface to realize rapid replacement of different equipment
3. Damping shock absorber technology: Using new generation damping shock absorber to filter out high frequency vibration in UAV
4. Intelligent Tracking: Motion Target Tracking Function
5. 4 K Super Clear: 12 million effective pixels, maximum model supports 4K video
6. Networked data communications: Using network data communication, each task load is an Internet of Things terminal
7. Two-way wireless communication: Data link with two-way wireless communication function, data transmission, control instructions in one
8. Remote Download: Support for remote download of photos, videos SDK
9. Open SDK: Open SDK, provide 3D appearance structure, facilitate user to develop integration design twice
10. HD multiplexing lens: 3.5 times optical zoom, 4 times digital zoom

Specifications:
Project parameters:
- Product Name: T14X Optical zoom gimbal
- Operating voltage: 12V-25V
- Power: 7W
- Weight: Body 275g; IDU 100g
- Size(W): 96 * 79 * 120mm
- Interface Type: Netport
- Display Control: For Windows PC or Android Phone, Tablet

Environmental parameters:
- Operating temperature: -10℃~ 60℃
- Storage temperature: -20℃~70℃

Gimbal parameters:
- Angle shaking momentum: ±0.01°
- Installation: detachable
- Controlled rotation range: pitch: +70° to -100°; Heading: ±300°
- Structural design range: pitch: +75° to -110°; Heading: ±310°; Rolling: +90° to -50°
- Maximum control speed: pitch: 120 ° / S; Heading 180 ° / S

Camera parameters:
- Sensor: For CMOS: 1/3"; Total Pixel: 12.71MP; Maximum Resolution: 4152x3062
- Lens: 3.5X optical zoom lens F 3.85-13.4mm (21-74mm equivalent focal length); minimum shooting distance: 1mm-3mm (near focal length-far focal length); Viewing angle (horizontal): 82-25°
- Image Formats: JPEG
- Video Formats: MP4
- Working Modes: Record, Taking pictures
- Penetrating fog: Electronic fog penetration
- Exposure: Auto/Manual
- Resolution:
* 10HZ; 20fps (4608x3456) 1600w;
* 50Hz; 20fps (4000x3000) 1200w
* 50HZ; 25fps (3840x2160) 800w
- Minimum illumination: Color: 0.5Lux/F2.4
- 2D Noise Reduction: Supported
- 3D Noise reduction: Supported
- Electronic Shutter: 1/3 to 1/30000s
- Exposure: Auto
- Electronic zoom: 4X
- OSD: Supported
- Pointing zoom: supported
- Pointing zoom range: 1-14X
- One-click zoom to single image: Support
- Support SD Cards: Micro SD Card

Package Included:
- 1 x Netport Version T14X Gimbal Body
- 1 x IDU Gateway Shock Absorber Group
- 1 x T14X to Third Party Open Network Port Video Transmission Cable
- 1 x Cable for Gimbal to PC

Note: Camera is included in the package.
