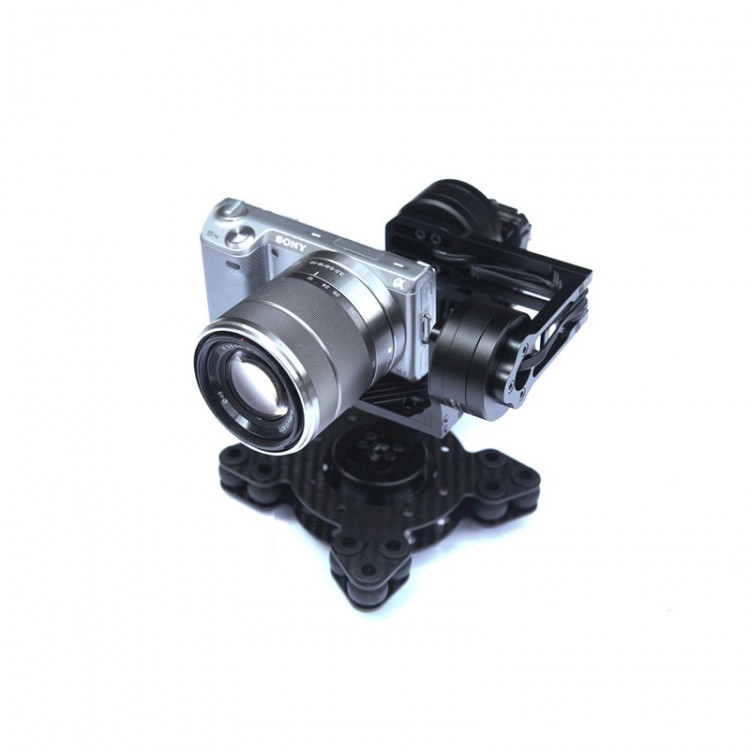

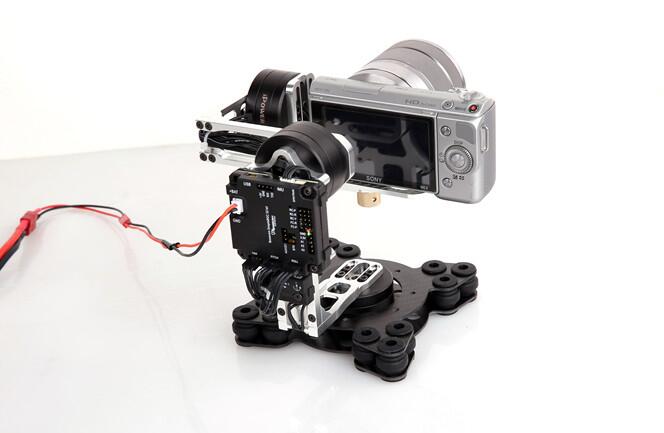

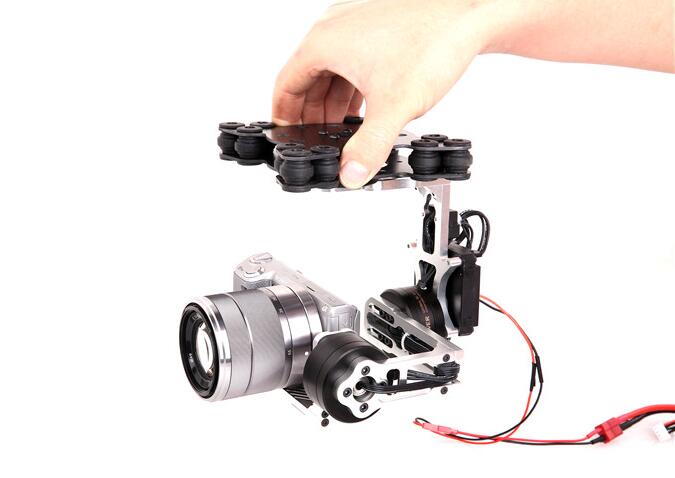

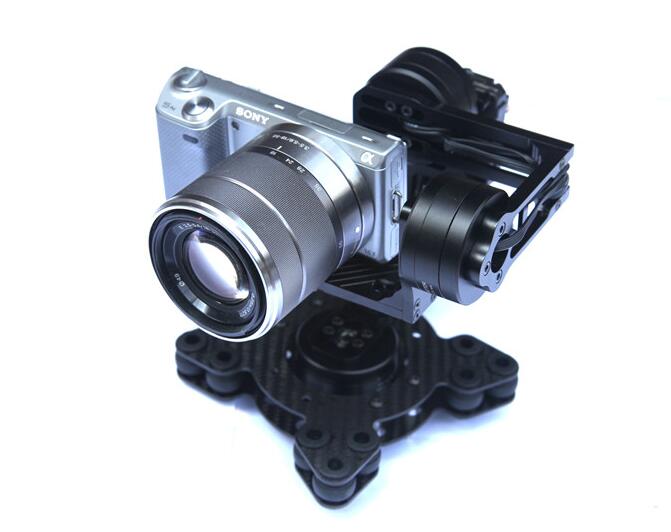

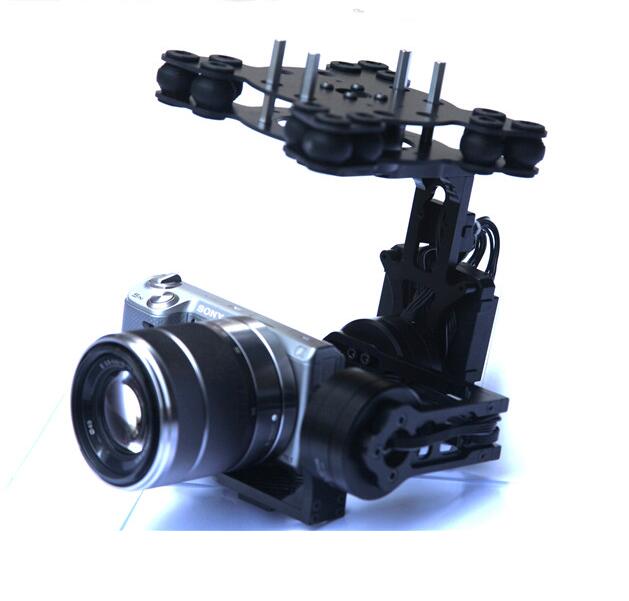

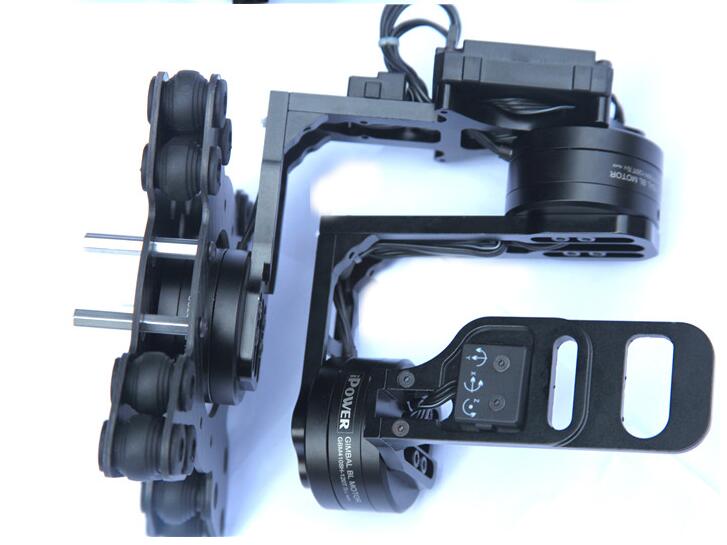

3 Axis Brushless Gimbal PTZ BMPCC G4 Sony NEX5/6/7 with Motor Control Board

3 Axis Brushless Gimbal PTZ BMPCC G4  Sony NEX5/6/7 with Motor Control Board

Features:
- Specially designed for micro DSLR,such as BMPCC  G4  Sony  NEX5/6/7

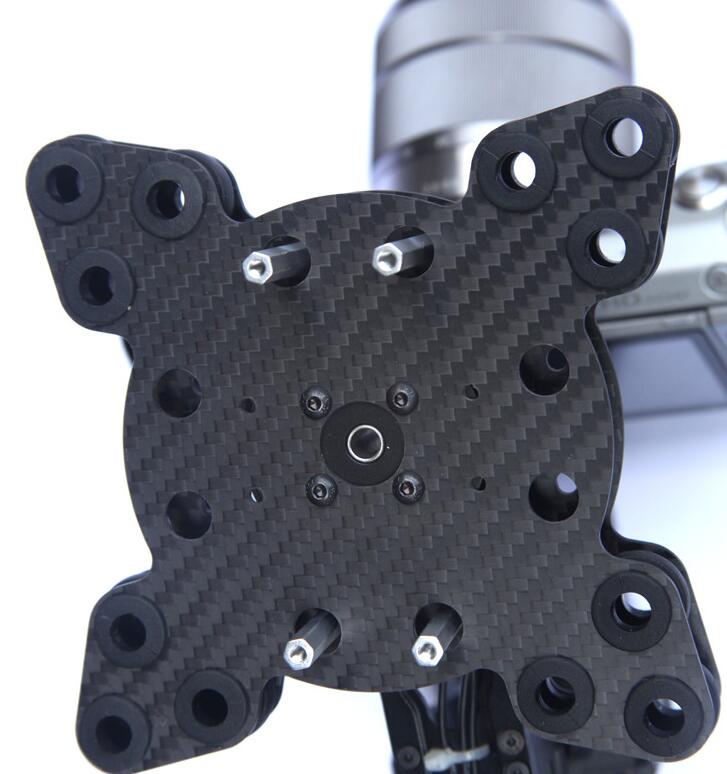

- The frame uses high qualtiy light aluminum material CNC aerial processing,carbon fiber vibration damper plate
- All adjustable design,balance adjustion.

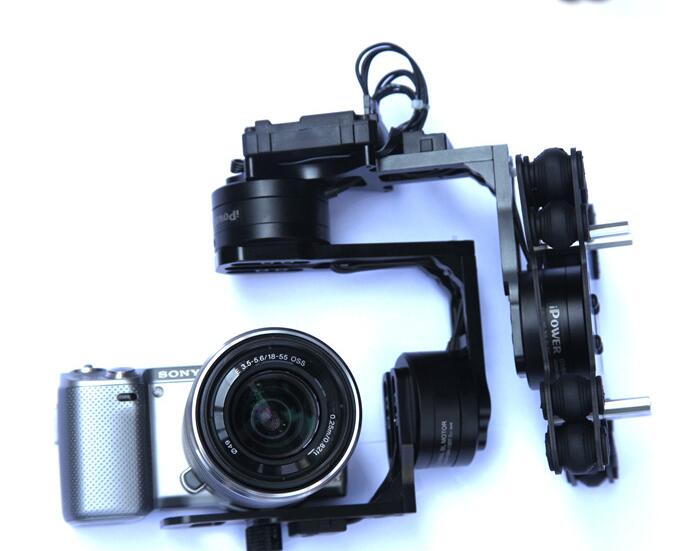

- With three iPower high quality special custom brushless PTZ motor,specially designed for micro DSLR.

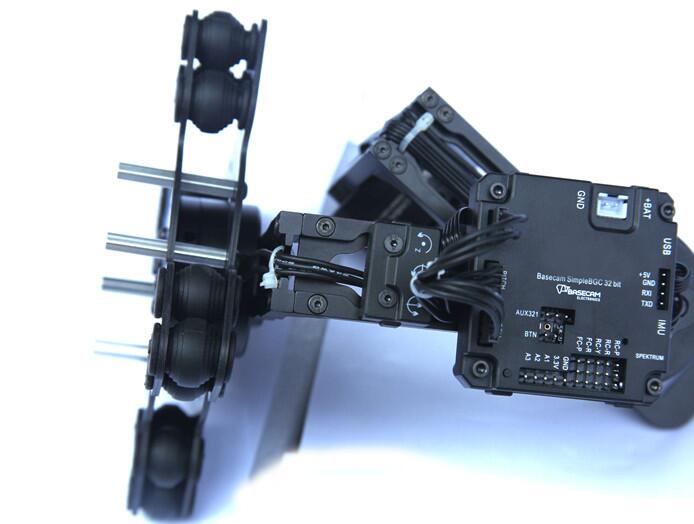

- BaseCam SimpleBGC (AlexMos) Controller.
- PTZ+Controller+Shockproof system
Net weight:600g
- PTZ dimension:20*16*16CM
- Aluminum material,half single arm frame,light and firm.
- Brushless motor direct drive,quick response
- Camera gravity adjusting,can adapt to different lens
- Active stabilization technique,closed-loop measurement and control,accurate stability augmentation compensation

Technology parameter:
- Support sensitivity parameter adjustment & software 3D pose display
- Support rocker rate mode & angle mode
- Support receiver:standard receiver,PPM receiver,DSM2/DSMJ/DSMX receiver
- Support remote control device:PPM/PCM/2.3G
- Working voltage:DC 7.4V~14.8V (recommend 11.1V,3PCS lithium battery)
- Working current:200mA-2A (It is related to the power voltage and motor power)
- Working temperature:-15℃~65℃
- Processor: MEGA328P processor
- Sensor:MPU6050 Three-axis gyroscope and accelerometer
- Big angle rate:2000°/SEC
- High acceleration:16g
- Control frequency:1600Hz
- Motor drive frequency:8/32KHz (Noise power saving drive/no-noise smooth drive)
- Control accyracy:.1°
- Control angel range:-45°~45°(roll)-90°~90°(pitch) (Other values can be set on your own)
- Used software:Russia ALEXMOS genuine software license,can update firmware any time

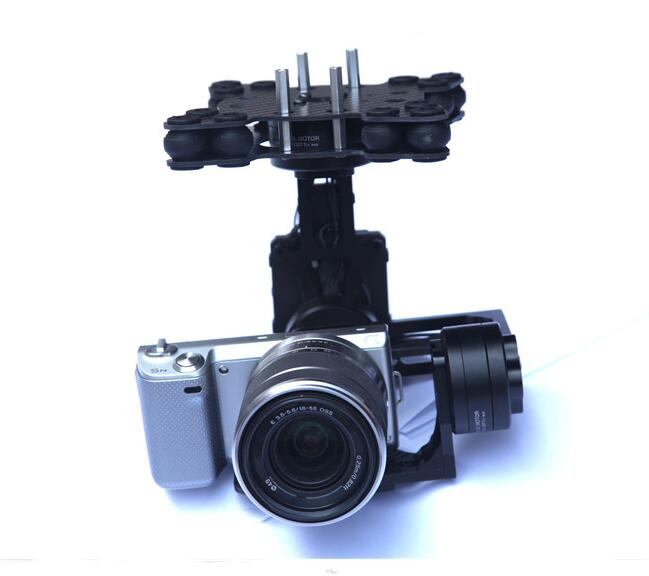

Support camera:BMPCC  G4 SONY NEX-5n,5r,5t.

Gravity adjusting tips:
Fixed the camera on the PTZ with camera screws.swing it at random andlet it go before the power is switched on.If the camera  can not swing any more,but can fixed on certain direction.This means the camera gravity is adjusted well.Install the circuit board and switch on the current after adjusting gravity.

Package Included:
- 1 x  3-Axis Brushless Gimbal
- 3 x Motor
- 1 x 32 Bit control board
