3-Axis Mechanical Robot Arm Industrial Manipulator with Air Pump Remote Control Adapter Hand Grab

Availability: In stock, usually dispatched in 1 business day

  • Price:$718.56
  • Price in reward points: 7186 Reward Points: 72
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $704.19 $689.82 $668.26 $639.52 Contact US
Quantity:

3-Axis Mechanical Robot Arm Industrial Manipulator with Air Pump Remote Control Adapter Hand Grab

Working Parameters:
Number of axis: 3
Load: 0.5KG
Maximum working diameter (including end tray): 860mm
Power supply voltage: 220V, 50HZ
Power input: 24V / 6A
Power: 144W MAX
Operating temperature: -10 to +60 degrees
Product model: ZK-Bot303

Axis Motion Parameters:
X axis base working range: -320 degrees to 0 degrees
Y-axis big arm working range: -60 to 0 degrees
Z axis small arm working range: -70 degrees to +10 degrees

Machine Physical Features:
Base size: length 180mm * 180mm
Body material: 6061 aluminum alloy, anodized
Remote control box size: length 193mm * width 116 * height 26mm
Packing specification: length 490mm * width 320mm * height 380mm

Stepper Motor Parameters:
Holding torque: 0.4N * M
Rated voltage: 24V
Rated current: 1.7A
Step angle: 1.8°
Phase number: 2 phase 4 wire

Planetary Reducer Parameters:
Reduction ratio: 1:10
Maximum output torque: 5N * M
Backlash: less than 15 arc minutes
Rated input speed: 3000

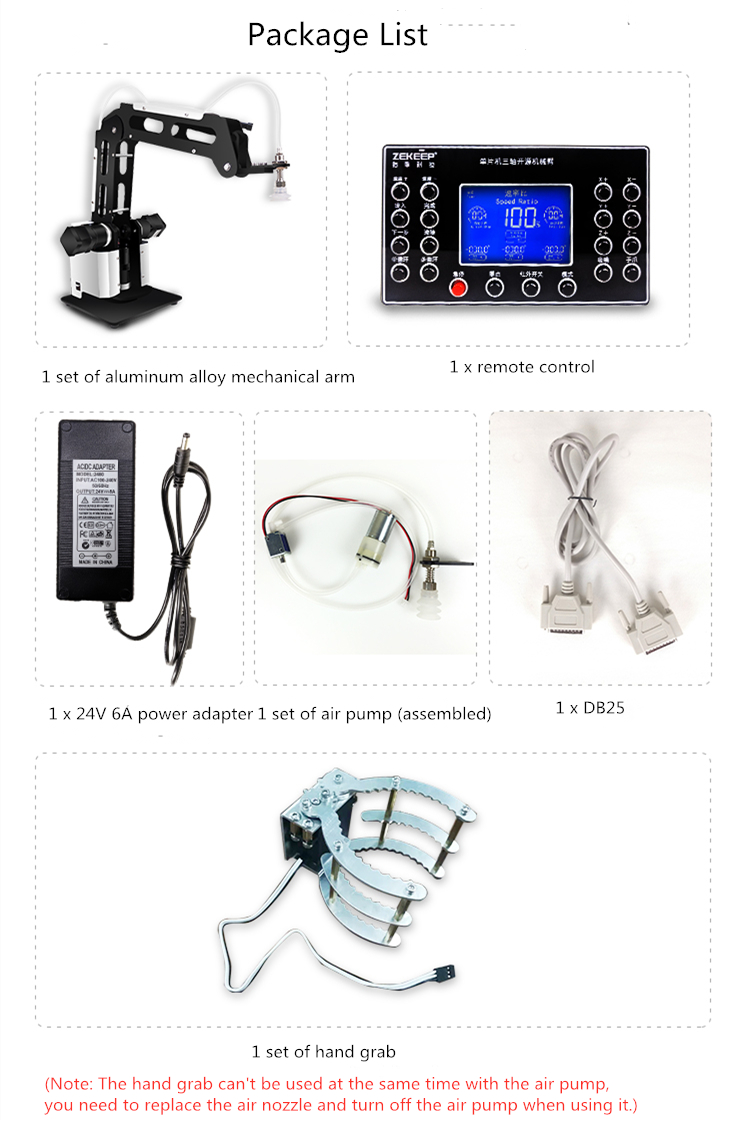

Package List:
-1 Set of Aluminum Alloy Mechanical Arm
-1 x Remote Control
-1 x 24V 6A Power Adapter
-1 Set of Air Pump (assembled)
-1 x DB25
-1 Set of Hand Grab
