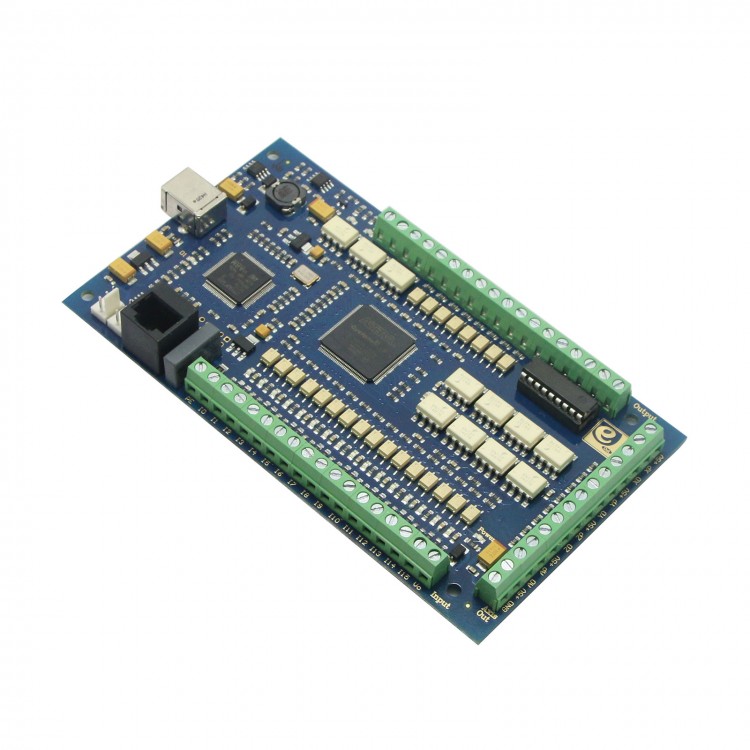

3 Axis USB CNC USBCNC Stepper Motor Controller Card MACH3 1 MHz 24V Input for CNC Milling Machine

Availability: Out Of Stock

  • Price:$109.50
  • Price in reward points: 1095 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $107.31 $105.12 $101.84 $97.46 Contact US
Quantity:

3 Axis USB CNC USBCNC Stepper Motor Controller Card MACH3 1 MHz 24V Input for CNC Milling Machine

Features:
- This is for 24V input version
- Motion Control Card Manual Version: 1.1
- e-Cut motion control card features:
- Supports all Mach3 versions, including the Mach3 R3.042.040 version.
- Supporting Windows series, including the latest version of Windows7.
- No need to install any USB drivers,it can be used after plugging in the computer.
- Full support for USB hot-swappable, the card is Monitoring USB connection status at any time.
- Supports 3 axis linkage,including point to point move
- Supporting auto tool zero,electronic handwheel and software limit,return difference eliminating.
- 48Mspeed,signal is independently handled by motion control card to ensure real-time and reliability.
- Maximum step-pulse frequency is 800KHz, which is suitable for the servo or stepping motor.
- Status indicator LED can be useful to show the USB connection, and working status by flashing.
- 16 general-purpose inputs , with indicators.
- Real-time spindle speed can be observed in March3.
- Measures real-time speed and spindle speed can be observed in March3.
- Use external 12V-24V DC power supply to isolate USB and external port,and to make the system more stable.
- 9 high-speed optical couplers with 10MHz, 25 general optical couplers for isolating all of the input/output signals, the high-cost designed can be provided the safe separation distance of 2.5mm.
- Accurate 0-10V analog output,reducing external device and making the spindle speed more stable
- PWMoutput port of 5v drop-down provides PWMspeed control.
- The 4 layer circuit board selected high-quality devices is exquisite.

Software Download: click here

Package including
- 1 set x 3 Axis USB CNC Controller card MACH3 1 MHz 24V input version usb cable free
