3 In 1 Soldering Rework Station 220V + Hot Air Gun + DC Power Supply with Full Accessories 909D+
This products is designed based on market research needs of four in one tool, it combines together in one common tool (soldering station, hot air rework, and power supply for repairing mobile phones), there kind of function can be used independent switch or simultaneously, it occupies less area, practical and saves energy.
The product uses double-side fiberglass circuit board material, the components installation processes are performed orderly to ensure the clarity of electric signal floe.
Soldering iron, hot air rework station and DC power supply are using independent dual-core micro-controller, which means they can work independently, when the problem occurs on one tool it does not affect the others. Dual-core CPU is used to avoid failures.
Soldering iron hot air rework used for sensor closed loop circuit, micro-computer zero trigger-controlled temperature, LED display. Larger power, temperature heating goes up quickly, temperature accuracy and stability, avoid to airflow impact, its really come ture lead-free soldering and desoldering. Machine's parts has self-detection devices, full-intelligent's over-temperature, short circuit, open circuit, overload etc. Failure of display and protection function.
- Model: 909D+
- Power consumption: ≤ 800W
- Measurement: 25 * 185 175 mm
- Working environment: 0~50℃
- Storage environment: -20~80℃
Hot Air Reworks:
- Airflow type: Diaphram pump spiral wind
- Air flow: ≤ 24 L/min
- Temperature range: 100~480℃
- Temperature stability: ±1℃
- Display type: LED digital display
Soldering Iron Station:
- Temperature range: 200~480℃
- Temperature stability: ±2℃
- Tip of ground voltage: <2mv
- Tip ground impedance: <2ohm
DC Power Supply:
- Output voltage: DC 0~15V
- Load stability: <0.01±2mv
- Temperature coefficient: 1mvrms
- Protection current: 1A ~3A
- Power Supply: 220V AC
- Output voltage: 5V
- Rated current: 2A
- Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMA, etc.
- Shrinking, paint drying, adhesive removal, thawing, warming, plastic welding.
- Mobile phones repair: it provides powers supply, circuit board voltage testing, and detects mobile radio signal's strength, etc.

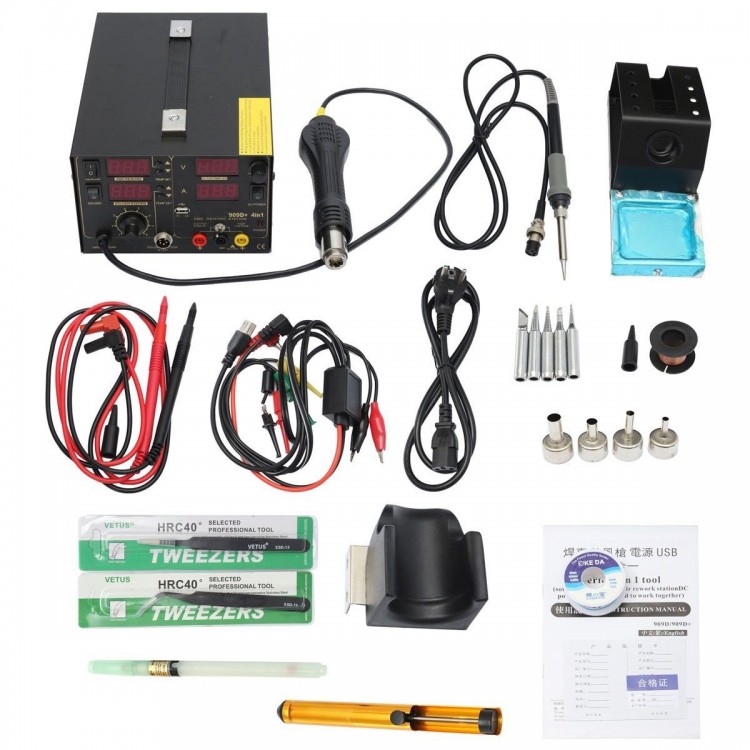

- 1 x Set of 909D+ Soldering Station Hot Heat Air Gun (As the following picture shows)
