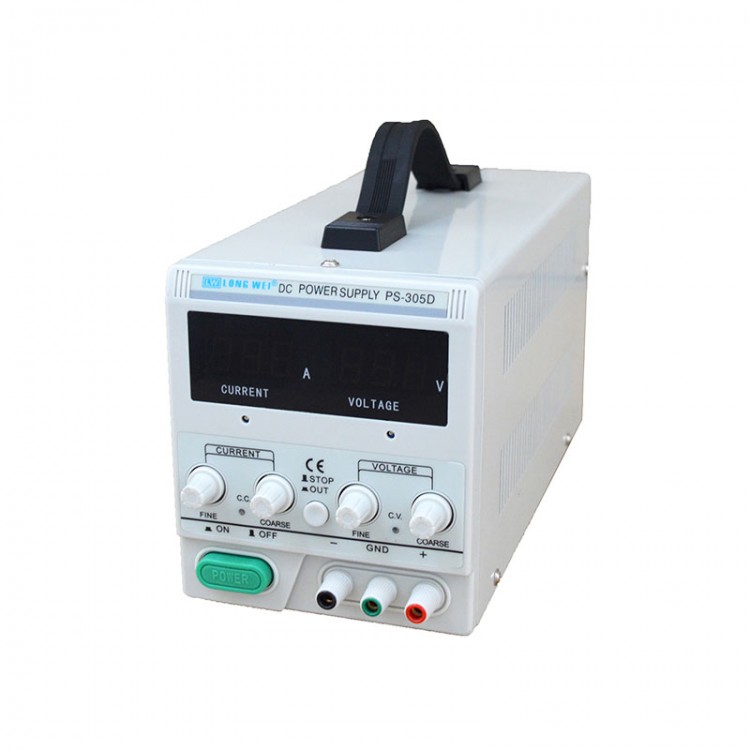

30V 5A Adjustable DC Power Supply LED Display for Lab Testing Aging Products PS-305D

Availability: In stock, usually dispatched in 1 business day

  • Price:$140.40
  • Price in reward points: 1404 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $137.59 $134.78 $130.57 $124.96 Contact US
Quantity:

30V 5A Adjustable DC Power Supply LED Display for Lab Testing Aging Products PS-305D

Features:

- Premium quality and affordable price
- Single output, high precision, high reliability with low ripple and noise
- 3-Digit LED digital screen displays voltage and current values
- Designed with coarse and fine knobs to adjust the voltage and the current, which can help you control the current and voltage accurately
- Constant voltage and constant current operation mode which can be automatically converted
- With current limiting protection

Applications:
- For teaching, experiments, researches
- For testing aging products
- For the repair of communication equipment
- Other occasions where a DC regulated power supply is needed

Technical Parameters:
- Model Number: PS-305D
- Input Voltage: AC 220V/110V ±10%, 50Hz/60Hz
- Output Voltage: 0-30V
- Output Current: 0-5A
- Operating Temperature: -10℃ to 4℃,Humidity<90% RH
- Storage Condition: -10℃ to 70℃,Humidity<80% RH
- Product Size: 270 x 128 x 145mm
- Weight: approx. 5kg

Constant Voltage Status:
- Voltage Stability: ≤0.01% + 3mV
- Load Stability: ≤0.01% + 5mV
- Recovery Time: ≤100μs
- Ripple Noise: ≤ 1mVRMS
- Temperature Coefficient: ≤300PPM/℃

Constant Current Status:
- Current Stability: ≤0.2% + 3mA
- Load Stability: ≤0.2% + 3mA
- Ripple noise: ≤3mARMS

Package Included:
- 1 x DC Power Supply
- 1 x Power Cable
- 1 x User Manual
