Product Description: The use of high-quality RF devices, well-designed, operating frequency range 60MHz-88MHz,the output power of 15 watts,input 50 milliwatts (that is,17dBm),12-14V power supply,the circuit structure using linear amplifiers for multi-channel linear amplification, Image transmission,used in intercom indoor coverage system,walkie-talkie relay station coverage system,315MHZ remote control extended range and 350MHz image transmitter amplifier.
Indicators:
- Operating frequency: 300MHz-400MHZ,including 315MHZ remote control and 350MHz band
- Output power: 15 watts @12.5V power supply,the operating frequency range is very flat output power
- Input power: 17dBm maximum,that is 50 milliwatts
- Output Harmonics: Typical value -25dBc
- Power supply;12-14V,operating current with the operating frequency and output power changes,the current maximum 2.4A
- RF interface and power terminals: RF signal input and output are SMA female,external thread hole,power supply for the heart capacitor
- Dimensions:110x75x50mm(LxWxH)
- On the heat: the amplifier with a solid aluminum alloy shell plus heat sink,good heat dissipation.
Connection:

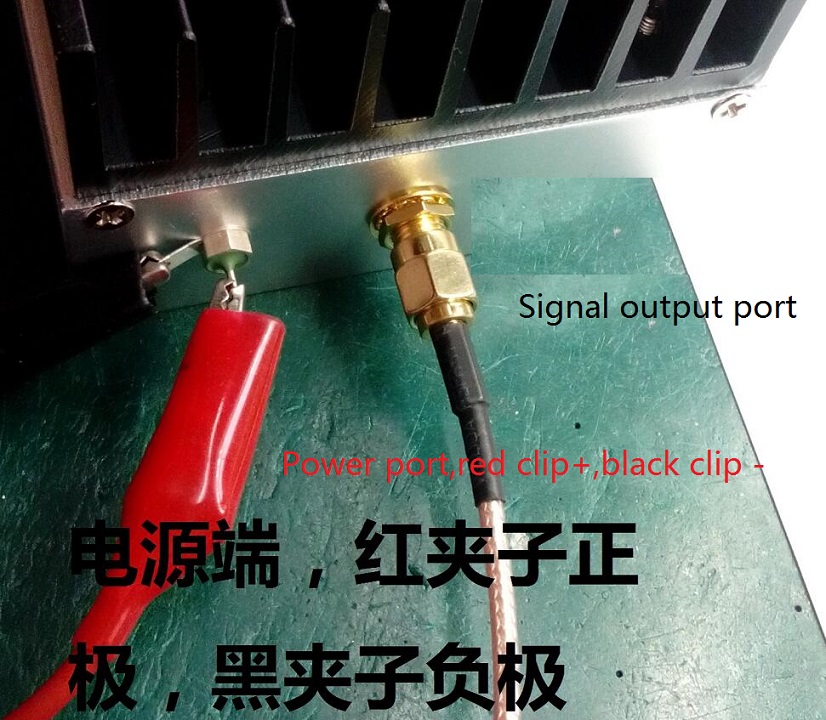

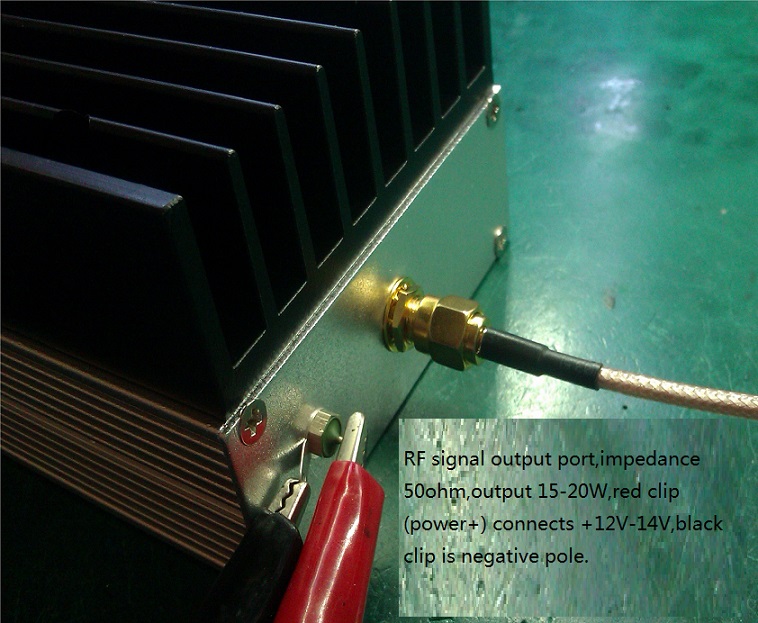

- RF signal output port,impedance 50ohm,output 15-20W,red clip(power+) connects +12V-14V,black clip is negative pole.

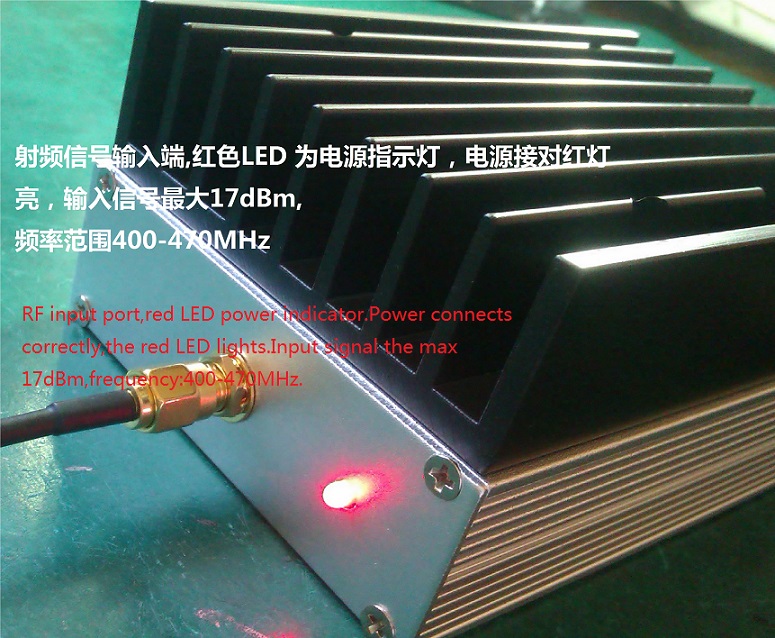

- RF input port,red LED power indicator.Power connects correctly,the red LED lights.Input signal the max 17dBm,frequency:400-470MHz.
Package List:
- 1 x RF Power Amplifier
