32-CH Logic Analyzer 1GHz Sample Rate USB 3.0 Bandwidth 5Gbps Maximum DSLogic U3Pro32

32-CH Logic Analyzer 1GHz Sample Rate USB 3.0 Bandwidth 5Gbps Maximum DSLogic U3Pro32

Key Features:
- 32 digital channels
- USB 3.0 interface
- Up to 1GHz sample rate
- Up to 2Gbits hardware memory
- Up to 16G sample depth (stream mode)
- Adjustable Threshold (0.1V Step)
- Shielded fly wires
- Unibody aluminum case

Connectivity:
- USB Type-C interface (USB 3.0 device port)
- 1.27mm dupont female connector (Host device)
- 2.54mm dupont female connector (Fly wires)

Power Source:
- Power source voltage: 5VDC±5%
- Power consumption: 2 W maximum

Input Output Ports:
                        Direction     Descriptions                                   Protected Voltage Range
USB 3.0 port     InOut          Connect to host computer               4.75v ~ 5.25v
CH0 ~ CH15     Input           Connect to under test signals          -30v ~ 30v (with fly wires)
CK                   Input          Clock input at state sample mode     0v ~ 3.3v
TI                     Input          External trigger signal input              0v ~ 3.3v
TO                   Output        External trigger signal output            —

Designed to make your work enjoyable:

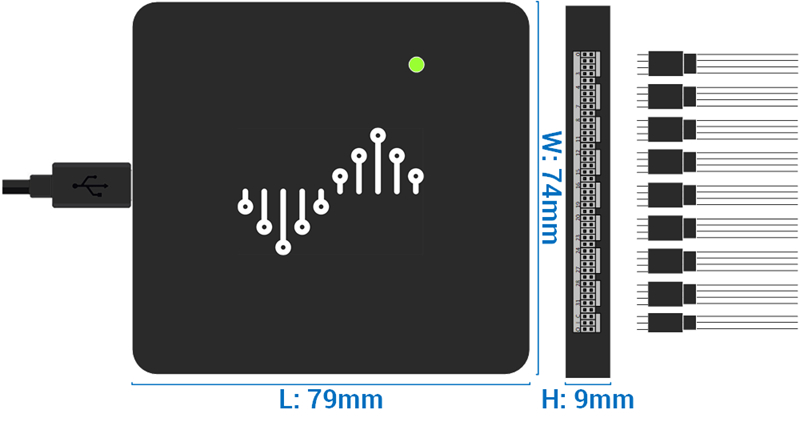

DSLogic U3Pro32 is an USB-based logic analyzer, which has a portable size (79x74x9mm), but powerful performance (up to 1GHz sample rate, USB 3.0 interface). With the easy-to-use and cross platform software for DSView, you can use your favorite computer to debug and analysis your circuits, observe the digital wave and decoder various protocols at anywhere and anytime.

Technical Specifications:
Input Voltage and Thresholds:
- Operation voltage range: -0.9v ~ 6v
- Threshold voltage: 0v ~ 5v (0.1v step)
- Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.)
- ESD protected

Input Impedance:
- 250KΩ // ~13pF

Max. Sample Rates:
Buffer mode                       Stream mode
8 channels: 1GHz              3 channels: 1GHz
16 channels: 500MHz        6 channels: 500MHz
32 channels: 250MHz        12 channels: 250MHz
—                                    30 channels: 100MHz
—                                    32 channels: 50MHz

Max Sample Depth:
- Buffer mode (without RLE compression): 2G / num. of channels
- Buffer mode (with RLE compression): 16G / num. of channles
- Stream mode: 16G

Error/Accuracy:
- Minimum acquisition pulse: 2ns
- Acquisition Accuracy: ±sample interval (for example: ±10ns@100M sample rate, ±1us@1M sample rate)

Noise Immunity:
- Each channel provides independent shielding ground.

System Requirements:
- For Windows XP, Vista, Win7, Win8 & Win10
- For Mac OS X 10.12 or above
- For Linux: For recent Ubuntu, Fedora, Arch, etc.
- USB 3.0 Host port

Package Included:

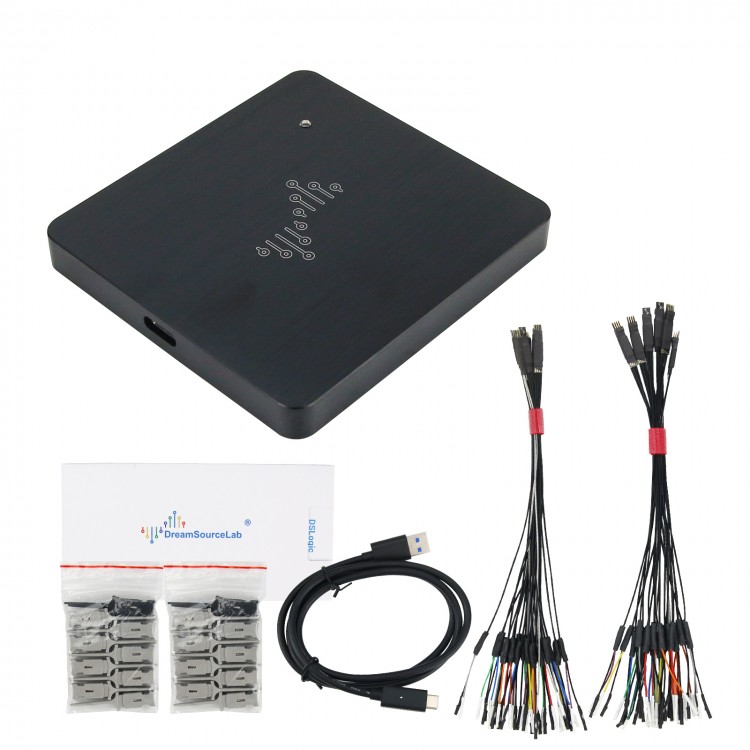

- 1 x DSLogic U3Pro32
- 1 x USB 3.0 Data Cable
- 1 x 8-Group Shielded Cables
- 32 x Signal Hook Clips
- 1 x Carrying Case

Download Software Here:
https://www.dreamsourcelab.com/download/
