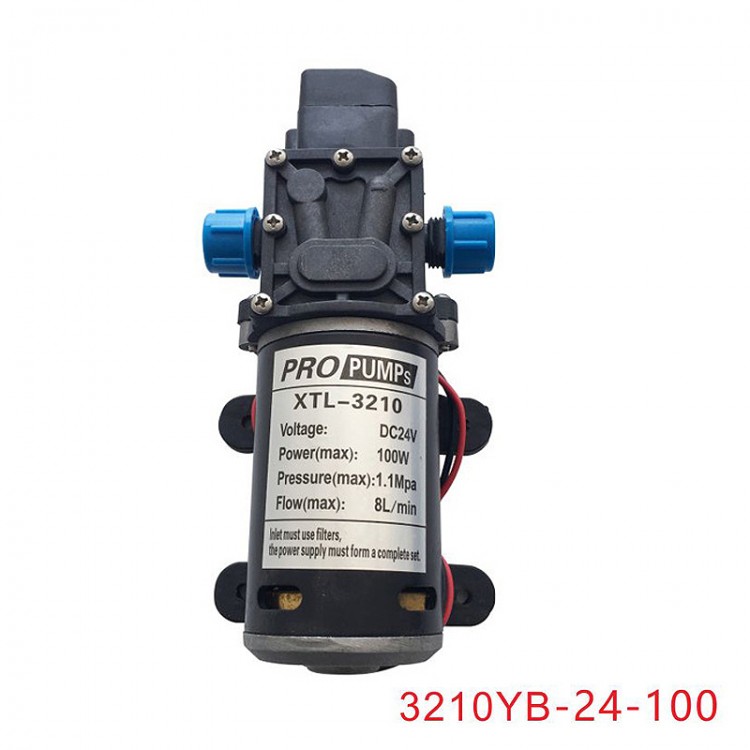

3210YB-24-100 High Pressure Electric Diaphragm Pump Pressure Switch Type B Connector 100W DC 24V
Basic Parameters:
- Name: High-pressure electric diaphragm pump
- Voltage: 24V
- Maximum power: 100W
- Maximum pressure: 11kg
- Working pressure: 7kg
- Opening flow: 8L/Min
- Vertical suction lift: 1.5M
- Head: 70M
- Pump size: 182.8 x 73.1mm
- Hole Spacing: 55.5mm
Package Included:
- 1 x Diaphragm Water Pump
Note:
- DC motor power cord is not divided into positive and negative poles.
Applications:
- Car wash
- Water flowers
- Spray
- Spray fruit tree
Pressure Switch Type:
When
the outlet is completely blocked (no water leakage), power supply will
be automatically cut off, the motor will stop, and the water outlet will
run again after opening. Matching nozzle hole should not be too small,
which will damage the pressure switch in the pump, but the nozzle hole
should not be too large, and the working pressure will be small. It is
best to use a pressure gauge to test the matching nozzle. Without tests,
the nozzle hole should be large rather than small.
Adjust Maximum Pressure:
Pressure
type pump does not have a pressure adjusting screw, and the maximum
pressure has been set at the factory. The maximum pressure cannot be
adjusted during use.
Interface Connection Method (Type B):
