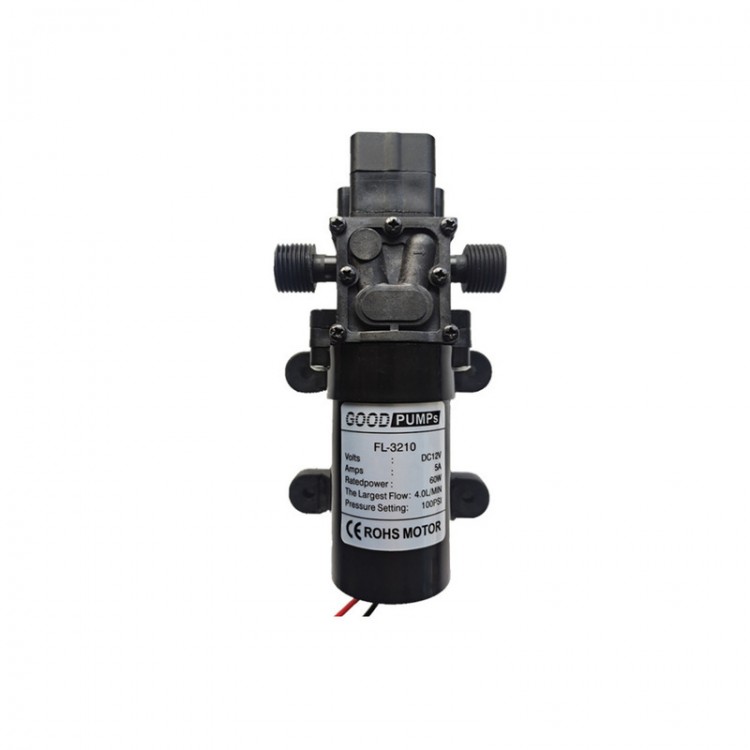

DC12V 60W High Pressure Water Pump 1.0MPa Micro Electric Diaphragm Pump 80W Large Flow Self-Priming Pump-Screw Type

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.50
  • Price in reward points: 245 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.01 $23.52 $22.79 $21.81 Contact US
Quantity:

DC12V 60W High Pressure Water Pump 1.0MPa Micro Electric Diaphragm Pump 80W Large Flow Self-Priming Pump-Screw Type



Please note this is 7 screws Type,Under the same conditions, the pressure resistance and sealing of the water pump with 7 screws are better than those with 5 screws

Features:

1.Diaphragm pump combines the advantages of self-priming pump and chemical pump. Installed in a dry, well-ventilated location; pumps can not work in water.
2.Using a variety of imported corrosion-resistant materials, self-priming, thermal protection, smooth operation, long-time continuous idling, long-time continuous load operation.
3.Totally sealed, high stable pressure.
4.Rubber bracket can absorb vibration from the pump when working.
5.When the water pressure is too high, pump will protect themselves and normal work, water pipes will not burst, it is safe and durable.
6.Pressure protection: pressure switch power protection.
7.The maximum flow of 5-6 L / min, Maximum pressure 7.0 kg, both of them can't be adjusted.
8.The work: intermittent service (continuous working at different working pressures at different times)
9.The use of media: water or solvent PH value 5--8, oil. Service life: more than 500-1000 hours of continuous work.
10.Pressure Switch Type Features: When the water turned off, it will automatically cut off power,the motor is stopped. After the water turned on, will automatically power on, motor running.
11. The shell is made of ABS plastic.
12. The maximum pressure has been set at the factory, and the maximum pressure cannot be adjusted during use.

Features:
- High quality, heavy duty pump
- Gather good advantage of self-priming pump and chemical pump
- Corrosion Resistant, Can work in bad environment
- High temperature protect
- Work stability, can running no-load and work for long time
- High pressure
- Low consumption
- Intelligent: Pressure Switch Control
- Long span.

Specifications:
- Suction Lift(max): 1.5m
- Voltage: 9V VDC-14.4VDC
- Rated Power:60W
- Power (max):80W
- Max load current:5A
- Pressure (max): 1MPa
- Rated flow:0.5-5L
- Flow (max): 6L/min
- Head(max): 30m-70m
- Motor lifespan: 3-5 years
- Inlet and outlet size: 10mm
- Size:175x100x62(mm)
- Installation size:175x76x56(mm)


Kinly note:
All of our pump product has to pass a water test before shipment to confirm that it can be used normally by customers. Therefore, the products received by customers may bring some water or water stains. Please rest assured that our products are brand new.
