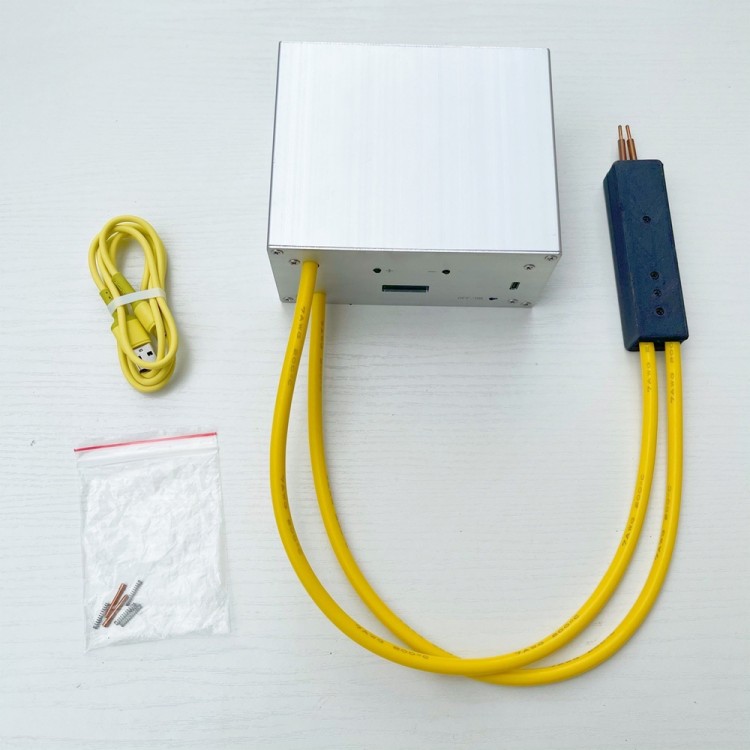

3400W Portable Battery Spot Welder 18650 Spot Welding Machine Double Pulse Digital Display For 0.3MM
Instructions:
1. The device needs to be charged when the voltage is lower than 6.5v. Please switch off when charging. Green light is always on when charging; the light is off when fully charged
2. This product is suitable for welding 0.2mm pure nickel and 0.3mm nickel plating. Aluminum and copper cannot be directly welded; it is forbidden to weld copper, aluminum and other metals with low internal resistance
3. Pulse time setting: The default pulse time after power on is 5MS. 0.1mm nickel plating is set to 2~3MS, 4~6MS for 0.15mm nickel plating, 6~9MS for 0.2mm nickel plating, 10~13MS for 0.3mm nickel plating. When the device voltage is lower, the pulse time needs to be adjusted longer. The maximum pulse time is 15MS
4. Automatic spot welding: automatic welding after the solder pin touches a nickel sheet for 0.8 seconds
Specifications:
- Power: 3400W at 8.4V
- Size of main unit: 115 x 136 x 65mm/4.5 x 5.4 x 2.6"
- Net weight: 1200g/2.6 lb
Package Included:
- 1 x Set of Spot Welder
Note:
- Battery is not included.
