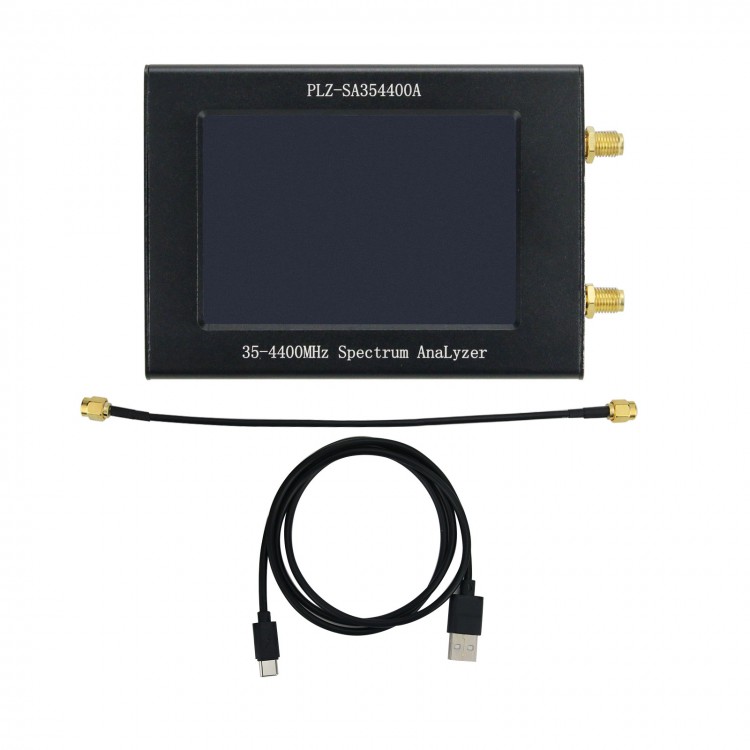

35-4400M Simple Spectrum Power Frequency Bandwidth Amplitude Tracking Generator 3.5" TFT Touch Screen
Features:
* 35-4400M (35M-4.4G) signal source, sweep frequency signal generator, simple frequency spectrum, with tracking generator
* Output frequency range is 35MHz-4.4GHz
* Step: 1kHz
* Output power (for reference): ±2dBm
* Spectrum input frequency range: 35-4400M (35M-4.4GHz)
* Frequency accuracy (after calibration): ±1k at 1GHz
* Low noise input signal amplitude: -70DBM at 0.5G
* Maximum input power: +5dBm
* Power supply: USB2.0, USB3.0 (+5V/0.3A, preferably connected to USB3.0)
* Interface: USB2.0, USB3.0, SMA
* Control: Full touch control is as follows
1. FREQ (Frequency): STAR, STOP, CENTER
2. AMPL (Amplitude): RLV, DIV UNIT
3. SPAN (Bandwidth): SPAN FULL ZERO
4. MEMU (Menu)
Package Included:
- 1 x Set of Simple Spectrum
Note: Battery is not included.
