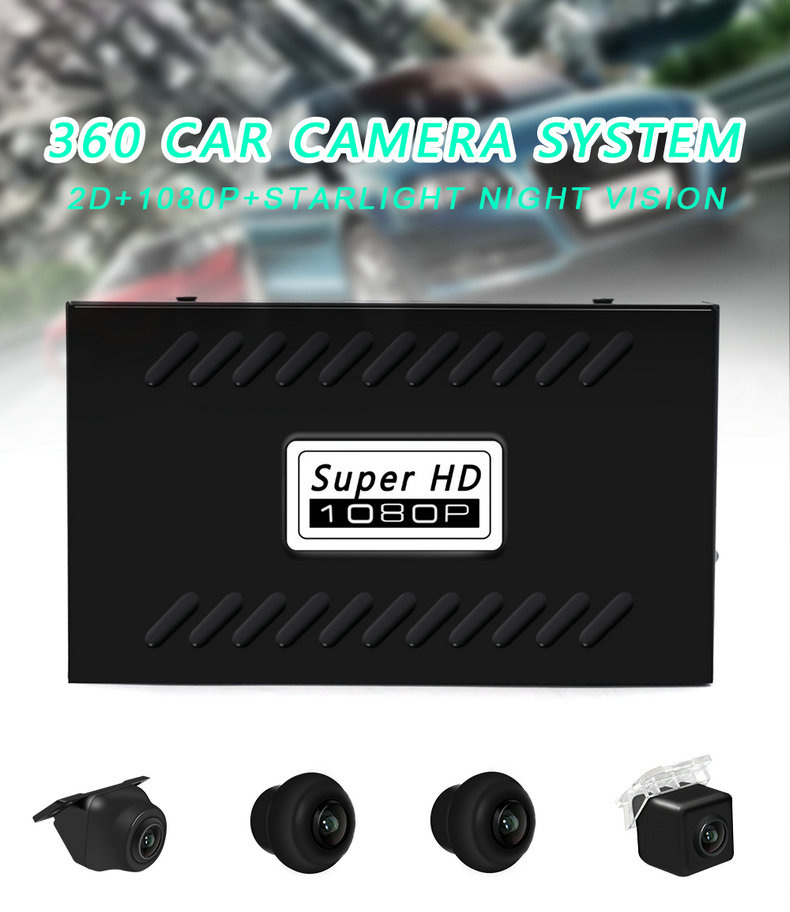

360 Degree Panoramic Driving Recorder 1080P HD 180° Wide Angle Cameras System DV360B

360 Degree Panoramic Driving Recorder 1080P HD 180° Wide Angle Cameras System DV360B

Description:
This 360 degree view car camera system is a support technology that assists drivers to park more easily by better understanding the vehicle's surroundings through a virtual bird's-eye view from above the vehicle. It helps drivers visually confirm the vehicle's position relative to the lines around parking spaces and adjacent objects, allowing the driver to maneuver into parking spots with more ease. The system can display the bird's-eye, front and rear views, making it possible to check the vehicle's 360-degree surroundings simultaneously with either the front and the back.

Features:
- 4pcs 180° fisheye lens
- HD CMOS image sensor, all-glass camera lens & high-speed DSP processor
- Fisheye correction based on hardware acceleration
- Video recording based on motion detection
- Support USB as a recording medium
- Low-cost calibration peripherals and the most simplified calibration steps
- Intelligent 2D power consumption management mode
- Chip meeting vehicle standards and protection device ensure stable operation of the system

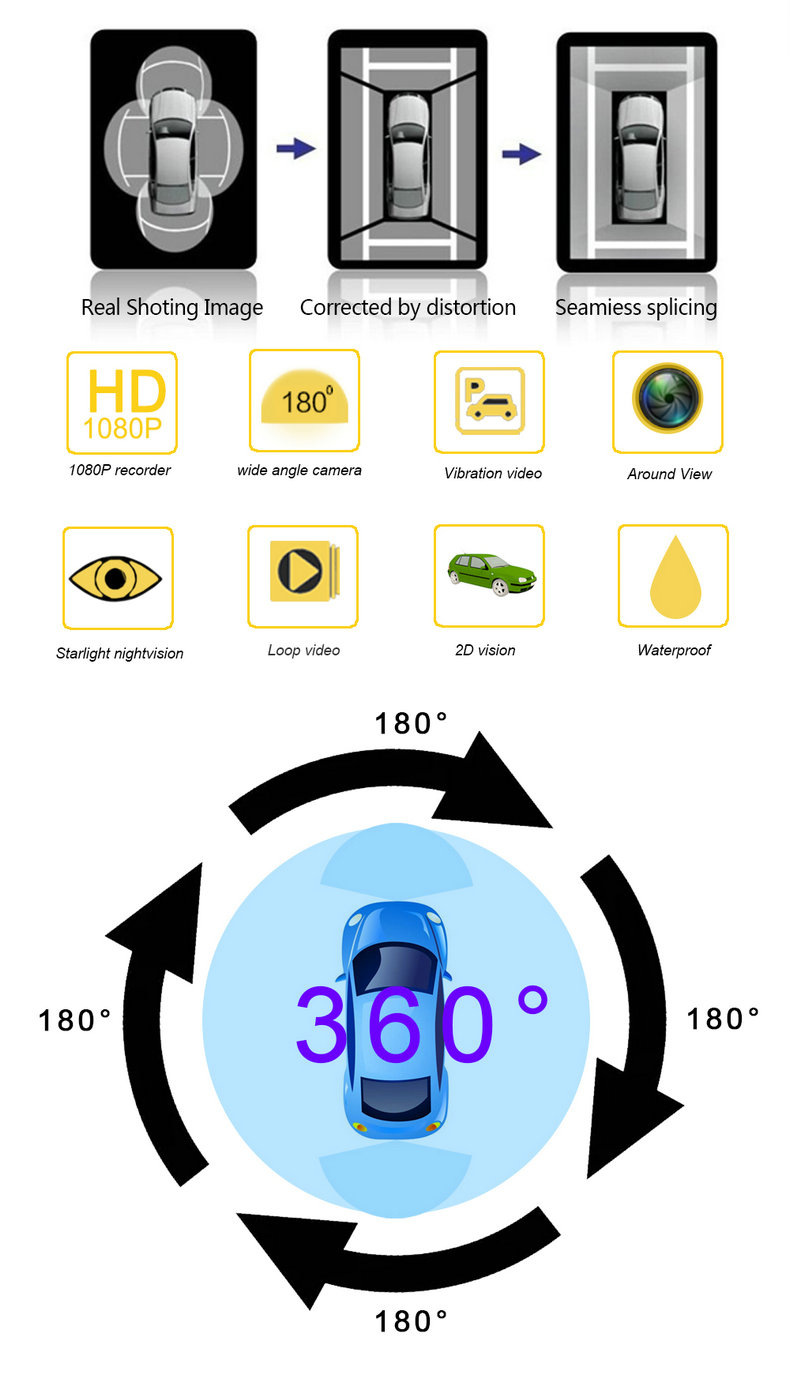

- 360 panoramic bird's eye view, seamless mosaic & no blind area on the ground
- Convenient to calibrate automatically
- 4 way image real-time driving record, supporting local playback
- HD signal input, clear and smooth picture

Specifications:
1.Image sensor: PC1233
2. Optical size:1/3 inch
3.Pixel pitch: 5.0*7.4um
4. Effective pixel: 1280(h)*720(v) pixel
5.Horizontal resolution: 1000 TV lines
6.Video format: NTSC
7. Dynamic range:>72db
8. S/N ratio: >48db
9. minimum illumination: 0.1 Lux
10. view angle: 180°
11.video output: 1.0V@75Ω

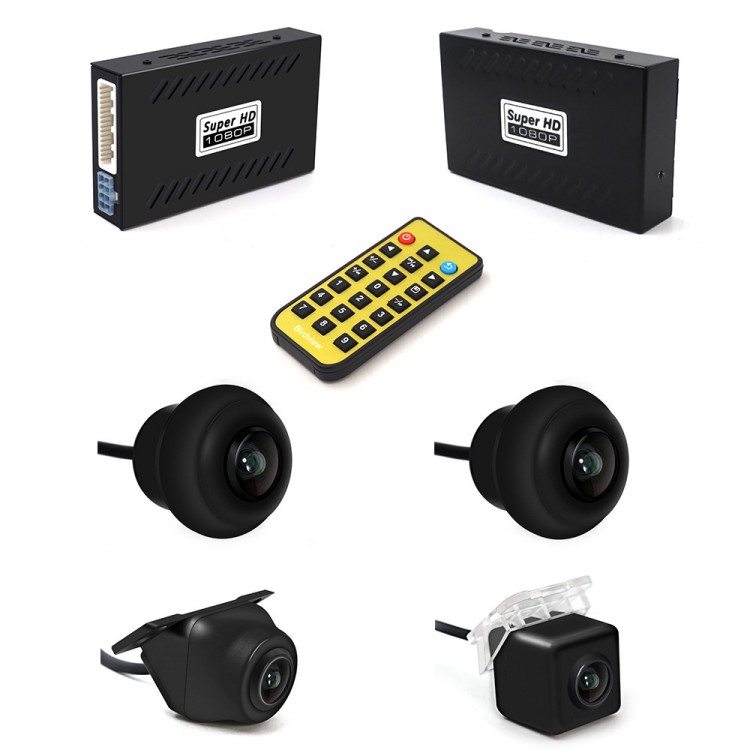

Package Included:

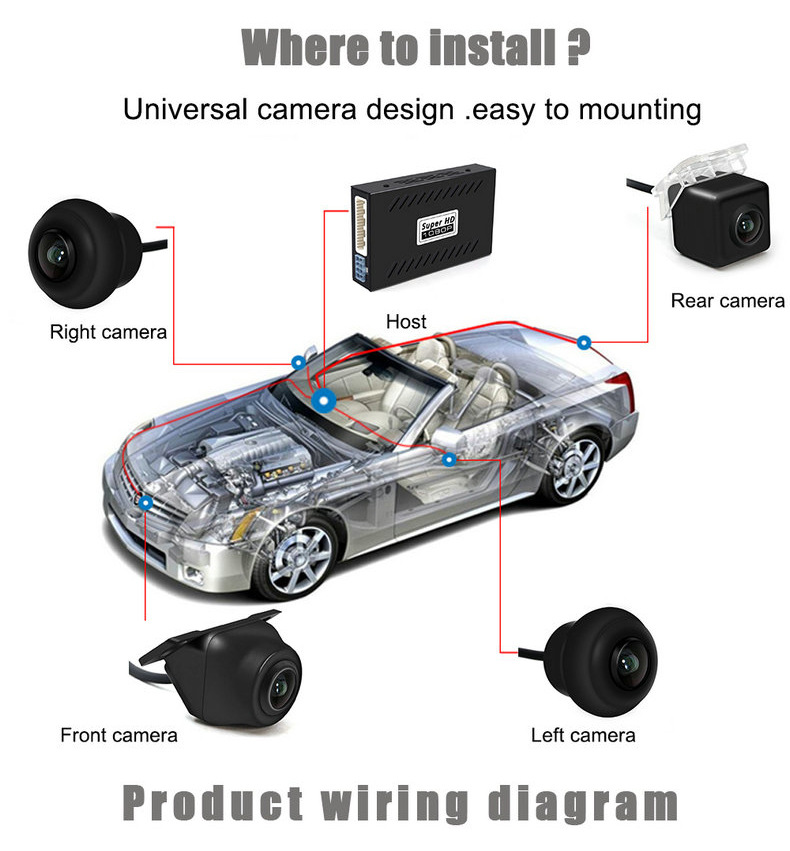

- 1 x Control Host
- 4 x Cameras (Front, Rear, Left, Right)
- 4 x Camera Extension Cords

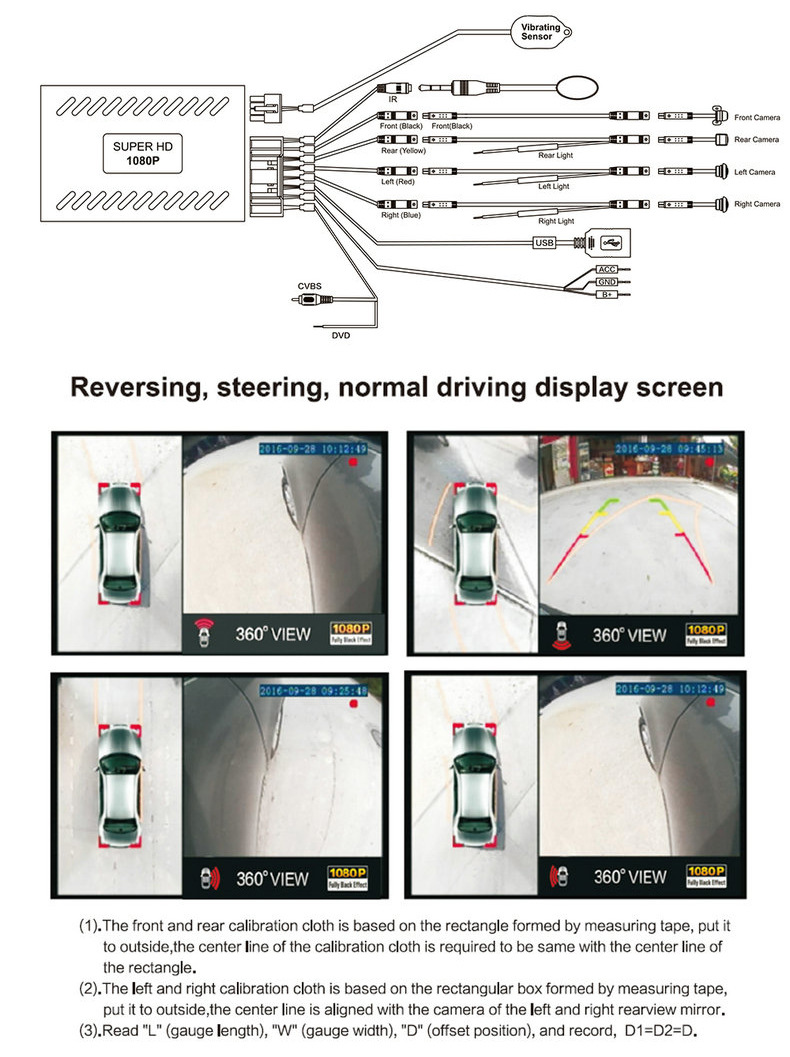

- 1 x Wire Harness
- 1 x Infrared Receiver
- 1 x Remote Controller
- 1 x G Sensor Vibrator
- 1 x User Manual

Note:

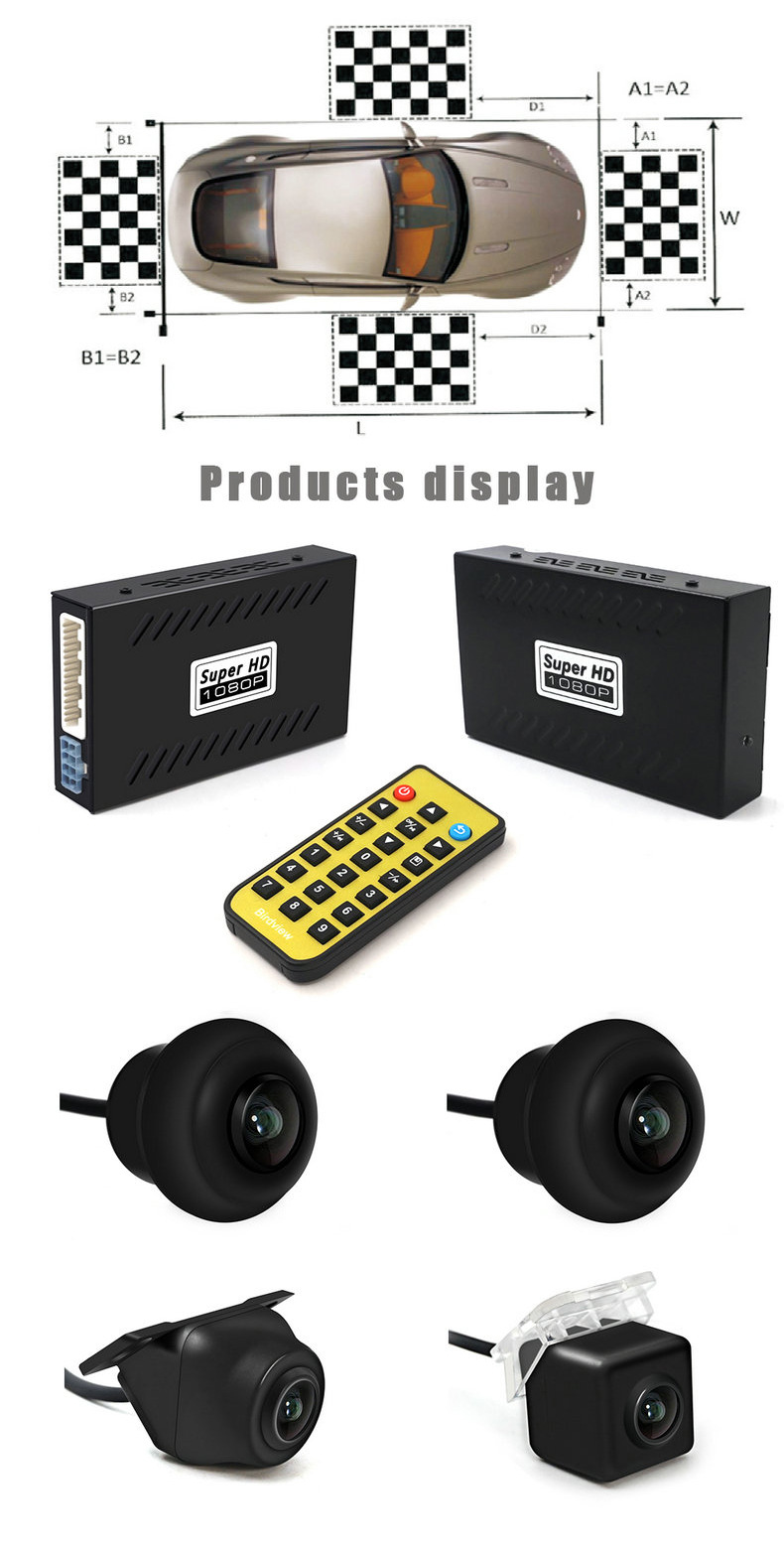

- Calibrated checkerboard cloth is not included. If it is needed, please contact us for price.
- If your original vehicle screen is used with our product, an extra decoder is needed to display the picture. It fits for navigation screen and no decoder is needed.
