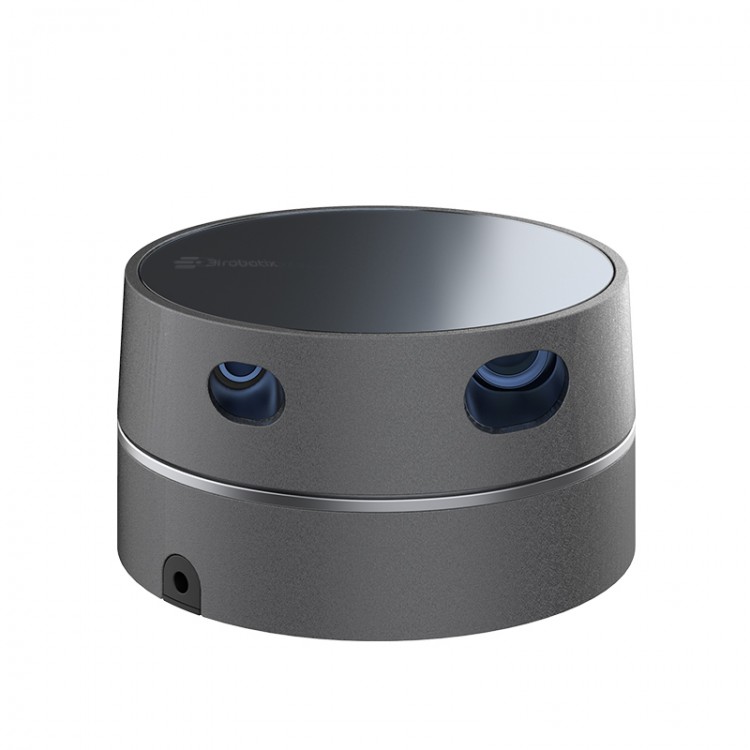

360° Lidar Sensor Scanner Laser Ranging Radar Module Detecting Radius 16M 8K/s LiDAR Delta3

360° Lidar Sensor Scanner Laser Ranging Radar Module Detecting Radius 16M 8K/s LiDAR Delta3

Features:
- 360° Lidar scanner.
- 16M detection radius.
- Sampling rate 8K/s.
- Dual-band optical communication.
- Identification of black items.
- Adjustable scanning frequency 5-15Hz.
- Driven by modulated pulse, low-power infrared laser is in line with Class I IEC Standard.
- Widely used in robotic SLAM location, obstacle avoidance, smart home appliances, warehouse management and robot ROS development.
- It can be applied to sweeping robots and mobile air purifiers.
- It can be connected to your PC by USB module 3i LIDAR Delta3. Plug to play, requiring no coding. With serial and USB interfaces, open source SDK and tools, it fits ROS.

Specifications:
- Detecting Range: 0.15m-16m (Reflectivity 80%)
- Sampling Rate: 8K/s
- Scanning Frequency: Adjustable 5-15Hz
- Laser Wavelength: 780nm
- Laser Power: 3mW Max.
- Accuracy: <1%@16m
- Measuring Resolution: 0.25mm
- Communication Interface: UART (3.3V TTL)
- Voltage: 5V
- Power Consumption: 3W
- Starting Current: 1.7A
- Working Current: 600mA
- Weight: 193.5g
- Operating Temperature: 0℃ to 45℃
- Levelness: <1°
- Operating Humidity: <90%
- Working Illumination: <1000 lux

Communication & Interface:
- Working Mode: 8-digit data bits & 1-digit stop bit, without parity bit
- Baud Rate: 230400
- Output Low Level: <0.4
- Output High Level: 2.9-3.5

Development & Supported Devices:
- Development Kit: Support 3i LIDAR Delta3 relevant tools
- Various Files: Data sheet, user manual, application manual and protocol range
- SDK & Demo: Fit for Linux & Windows

Package Included:
- 1 x LiDAR Delta3 Module
