36V-42V Balance Scooter Motherboard Hoverboard Motherboard w/ Bluetooth Board Full Set of Accessories

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.39
  • Price in reward points: 294 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.80 $28.21 $27.33 $26.16 Contact US
Quantity:

36V-42V Balance Scooter Motherboard Hoverboard Motherboard w/ Bluetooth Board Full Set of Accessories

PCBA Parameters:

1. Input voltage: 36V-42.5V
2. Output power: 250W-350W
3. Output current: 18A
4. Charging voltage: 42V/2A
5. Standby power consumption: ≤ 8ua
6. Charging indicator: yellow light will flash when charging; when fully charged, the yellow light will stay on. Your scooter cannot be used during charging
7. Low-voltage alarm: 34v
8. Maximum speed: 18KM/H. When it is 12KM, it starts to raise the head and alarm, and the maximum angle is 5 degrees
9. Tilt protection: When the machine is turned over or upside down, there is no output, and the buzzer will alarm. When the machine is positioned correctly, it works
10. Automatic shutdown: the machine will automatically shut down when it is not used within 10 minutes

Instructions for use:

1. Short press the switch to turn on. Green light will be on after turning on the power, block the photoelectric switch, the leaf light and the status light will be on;
2. Balance reset: place the machine flat on a level surface, and then press and hold the switch for a long time. When the balance is successful, the buzzer will beep and the red indicator will light up.

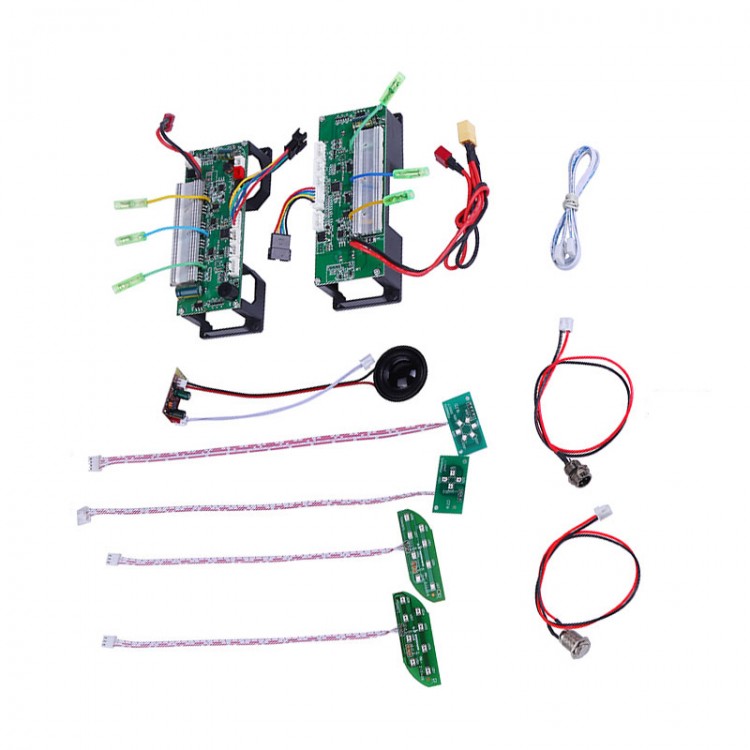

Package Included:
- 1 x Motherboard

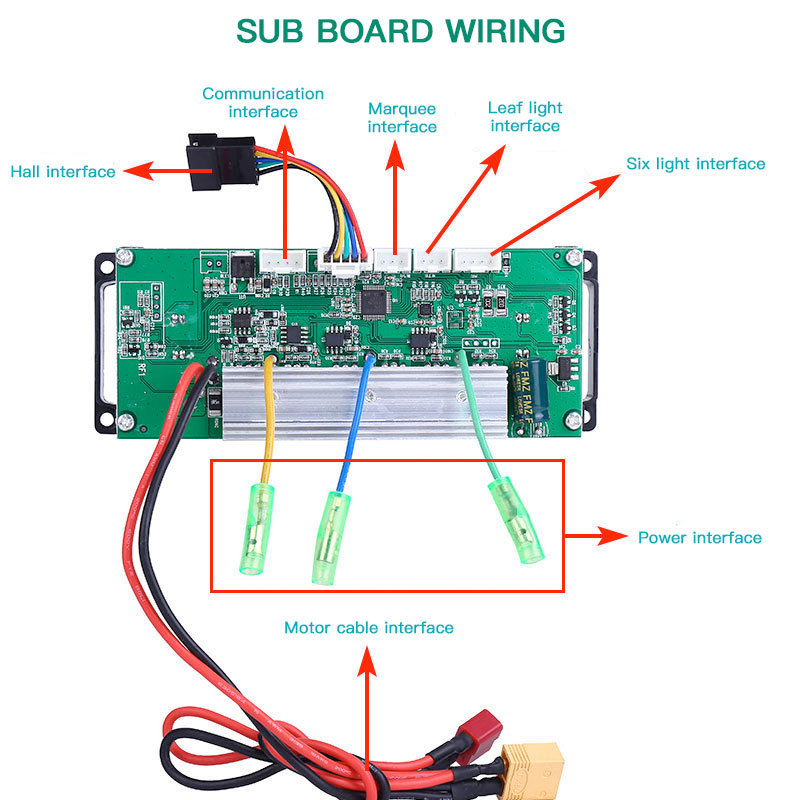

- 1 x Sub Board
- 1 x Communication Cable
- 1 x Charging Cable
- 1 x Switch Cable
- 1 x Bluetooth Board
- 1 x Six-light Board
- 1 x Four-light Board
- 1 x Leaf Light Board
