4 Channel 100MS/s MINI Nano DSO213 DS213 Professional Portable Digital Oscilloscope Digital DSO 213 DS 213 with X1 & X10 Probe

4 Channel 100MS/s MINI Nano DSO213 DS213 Professional Portable Digital Oscilloscope Digital DSO 213 DS 213 with X1 & X10 Probe

 Description :
- DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs

Feature :
- Mini size, light weight, portable and handheld;
- It can store waveforms, making waveform analysis clearer and more effective;
- Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;
- Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.

Specification :
- CPU: ARM Cortex M3
- FIFO & Control: FPGA
- ADC: HWD9288-100
- Analog Channels: 2（[CH_A] [CH_B]）
- Digital Channels: 2（[CH_C] [CH_D]）
- Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B]、 [CH_A]-[CH_B]、[CH_C]&[CH_D]、[CH_C] | [CH_D]
- Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)

                100mV-100V/div (1-2-5 STEP) (using X10 probe)
- Vertical Resolution: 8 bits
- Sample Memory Depth: 4 channels, 4*4K
- Coupling: DC, AC
- Max Input Voltage: ±40Vpp (using X1 probe)
                 ±400Vpp (using X10 probe)
- Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger
- Trigger Mode: Auto, Normal, Single, Slow
- Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]
- Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;
- Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources
- Storage: built in 8M USB disk
- File Types: BMP、BUF、CSV
- Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average
- Cursor Measurement: Time value, Amplitude value
- Display Modes: 4 wave lines: Line 1: [CH_A], HIDE
Line 2: [CH_B], HIDE

Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE

Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE
- Sampling Mode: Real-time Sampling
- Sampling Rate: 100M Sa/s
- Battery: 1000mAh
- Size: 99.5mmx58.5mmx13.5mm
- Weight: 129g (with battery)

Certificate: CE, FCC​

Package included :

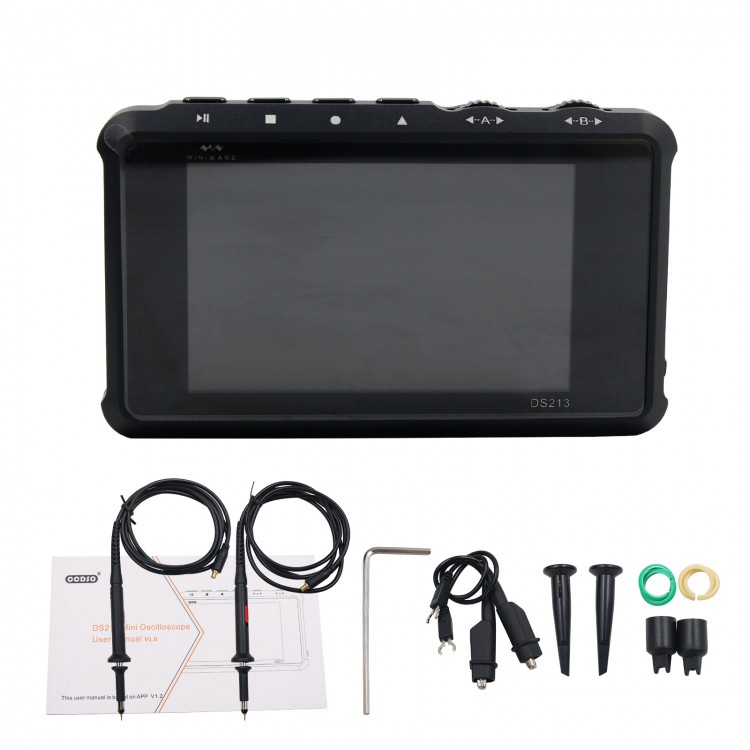

- 1 x DS213 Digital Oscilloscope
- 1 x X10 Probe
- 1 x X1 Probe
- 1 x USB Cable
- 1 x Screw driver
- 1 x Cover Bag
- 1 x User Manual
