DS100 Mini Oscilloscope Digital Oscilloscope 2 Channel 50M 250MSa/S Signal Generator Basic Version

DS100 Mini Oscilloscope Digital Oscilloscope 2 Channel 50M 250MSa/S Signal Generator Basic Version

Features:

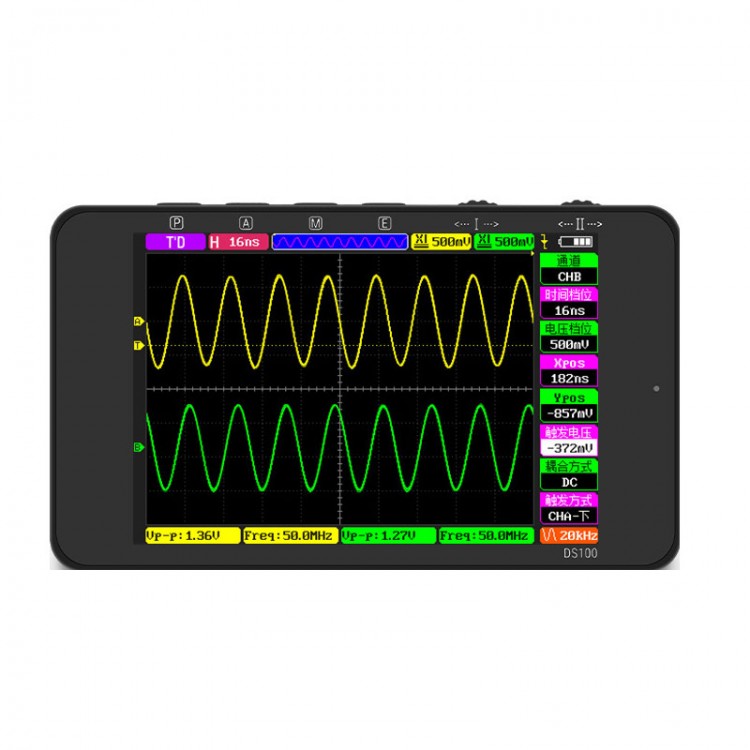

- Small and exquisite. Simple design, smooth feel. About 1/62 of the size of a benchtop oscilloscope. Complete all controls through 4 buttons + 2 scroll wheels. 3.5-inch IPS high-resolution screen has delicate display and no dead angles to watch the waveform. PC+ABS alloy material+high-elastic plush paint, smooth to the touch and exquisite appearance. Product size 100mm*58mm*15mm
- Dual channel: Freely switch between single channel and dual channel, which is more widely used. Dual-channel measurement of low-speed signals, single-channel measurement of high-speed signals
- Signal generator: Output waveform: square wave, sine wave, triangle wave, sawtooth wave. Frequency range: square wave 1Hz~10MHz; other 1Hz~50KHz
- High speed: 50M analog bandwidth, 250MSa/S sampling speed. The analog bandwidth is calibrated strictly according to -3dB, 1/5 sampling rate, and the parameters are true. The 250MSa/S high sampling speed can ensure high-quality restoration of various signal waveforms. 50M analog bandwidth can meet the actual needs of most users. This waveform is measured using MCX to BNC direct connection
- Accuracy: Voltage accuracy: ±2%, frequency accuracy: ±1‰. Repeatedly polish the front-end analog circuit to optimize the noise floor to ensure accurate and reliable measurement. Built-in pure hardware trigger circuit, accurately collect every waveform, avoid jitter, and refuse to lose data
- Automatic setting: One-key automatic (A: Automatic) to set all parameters, and output waveform in seconds. One-key centering (50%) to set the center of the waveform and trigger position, and quickly return to the waveform
- Parameter measurement: More than ten measurement parameters can be selected, including frequency, period, duty cycle, peak-to-peak value, effective value, average value, positive pulse, maximum value, minimum value, etc., and cursor measurement is supported. Support automatic (Automatic), normal (NORMAL), single (SINGLE) trigger mode, suitable for waveform analysis in various occasions
- Waveform analysis: 128Kpts waveform storage depth, after pause, the stored waveform can be expanded and moved left and right for analysis
- Use experience: Intelligent anti-burn design, built-in protection circuit, can avoid burn-in to the greatest extent. Automatic scroll wheel speed, assist in quickly completing waveform adjustment & measurement. Automatic power consumption control to maximize battery life

Introduction of Buttons & Scroll Wheels:
P: Power supply/Run/Stop
A: Automatic
M: Menu/OK
E: Exit/One-click centering
I: Selection Thumbwheel
II: Adjustment Thumbwheel

Specifications:
- Model: DS100
- Channel data communication: 2
- Screen size: 3.5 inch IPS
- Screen resolution: 480*320
- Analog bandwidth: 50M
- Sampling rate: 250MSa/S
- Rise time: <7ns
- Storage depth: 128Kpts
- Input impedance: 1MΩ
- Time base range: 8ns~50s
- Vertical sensitivity: 10mV/div~100V/div
- Maximum measuring voltage: ±40V (at X1 file); ±400V (at X10 file); ±4kV (at X100 file); ±40kV (at X1000 file)
- Trigger mode: automatic/normal/single
- Trigger type: rising edge/falling edge
- Display mode: YT/XY/scroll
- Afterglow time: >0/1s/∞
- Coupling mode: AC/DC
- One-key automatic: support
- One-click return: support
- Waveform save: support bmp and csv format
- Waveform measurement: 19 types
- Measurement accuracy: ±2%
- Frequency accuracy ±1‰
- Output waveform: square wave/sine/triangle/sawtooth
- Output frequency: Sine/Triangle/Sawtooth 1Hz~50KHz at 3V Vp-p; Square wave 1Hz~10MHz at 3V Vp-P
- Firmware upgrade: support
- Language selection: Simplified Chinese/Traditional Chinese/English
- Interface: MCX (probe interface); USB (charging & communication)
- Endurance time: about 7 hours
- Charging time: about 3 hours (USB)
- Product net weight: 109g
- Dimensions: 100mm*58mm*15mm

Package Included:
- 1 x Set of Portable Oscilloscope
