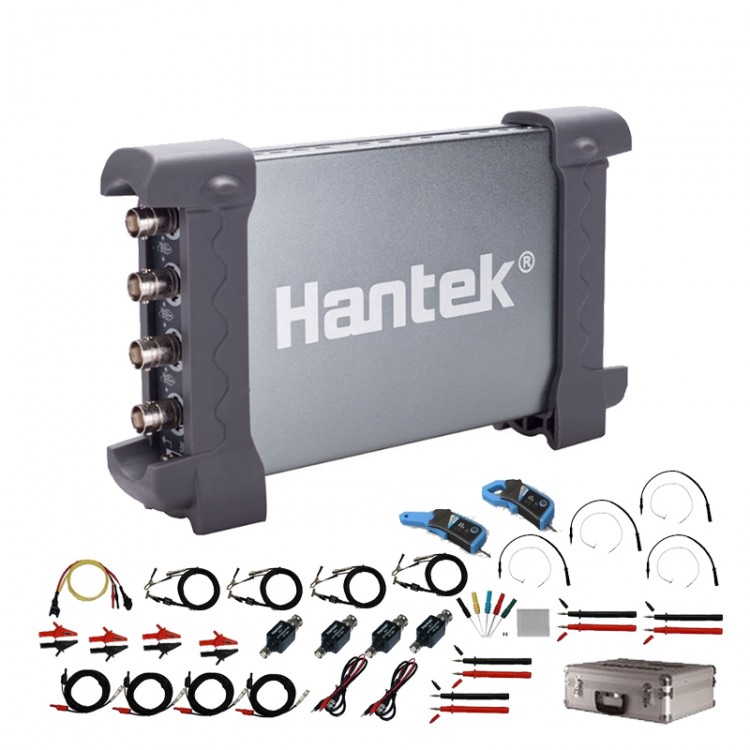

4 Channel Oscilloscope Hantek Automotive USB Oscilloscope 70MHz 1GSa/s Sampling Hantek6074BE Kit IV

Availability: In stock, usually dispatched in 1 business day

  • Price:$576.31
  • Price in reward points: 5763 Reward Points: 58
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $564.78 $553.26 $535.97 $512.92 Contact US
Quantity:

4 Channel Oscilloscope Hantek Automotive USB Oscilloscope 70MHz 1GSa/s Sampling Hantek6074BE Kit IV

Product Introduction:
Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup & Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support for WIN10/ WIN8/WIN7, etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate. 4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.

Features:
* Standard equipped over 80 types of automotive measurement function;
  First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
  Ignition: primary and secondary
  Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
  Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
  Performer: Petrol/Diesel
  Starter and charging circuits
* Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support for WIN10/ WIN8/WIN7 etc.
* USB 2.0 interface plug and play, and no need extra power supply;
* Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
* Good mechanical design with small size which is easy for carrying. The outer case is made by the same material as that for iPad - Anodized aluminum. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminum alloy surface is greatly improved.
* 4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
* The waveform data could be output to EXCEL, BMP, JPG.
* Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
* FFT spectrum analyzer
* One computer could connect with multiple oscilloscopes, expand the channel number easily.
* Provide secondary development library DLL; Provide developing examples for Labview\VB\VC\QT.

Package Included:
- 1 x Set of Digital Oscilloscope
