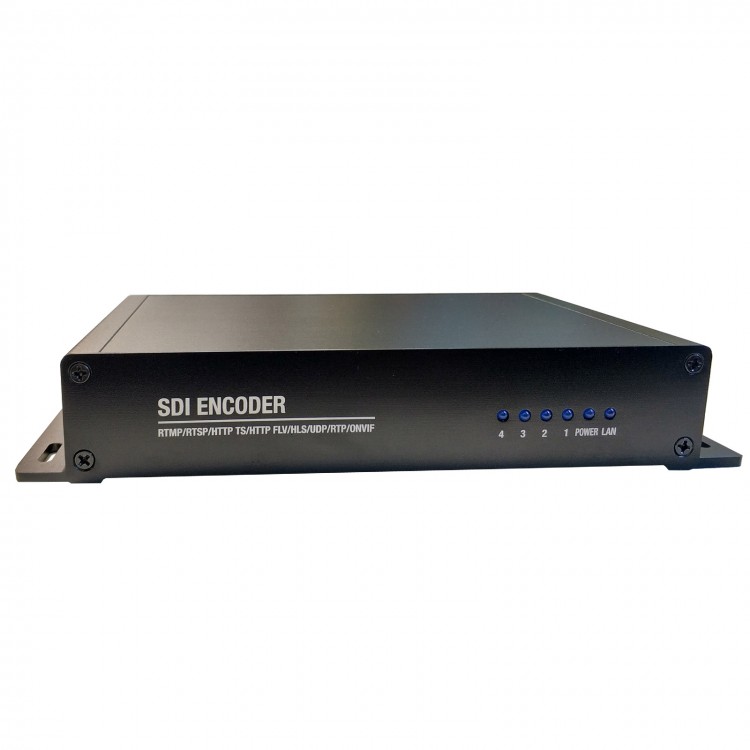

4-Way SDI Video Encoder H.265 1920 x 1280 H.264 SDI Video Card For RTMP Live Streaming XE4S

4-Way SDI Video Encoder H.265 1920 x 1280 H.264 SDI Video Card For RTMP Live Streaming XE4S

Advantages:
- 4-way SDI Video Encoder
- Support video cropping
- For standard ONVIF to connect NVR for Hikvision and Dahua
- Support for live broadcast platforms RTMP live streaming
- Multiplayer live broadcast on LAN
- 2-Way separate audio + 4-way built-in SDI audio
- Each channel supports 1-way main bit stream and 3-way secondary bit stream
- Video screen can add LOGO, scroll text

Specifications:
Audio and video input:
- Video input: 4 channel SDI
- Audio input: 4 channels SDI built-in audio; 2 channels 3.5mm external audio

Video encoding:
- Encoding type: H.264/H.265
- H.264 level: Baseline/Main/High optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480 /352x228/320x256/320x240/320x180/240x180/ same as input resolution
- Stream control: CBR/VBR optional
- Streaming: Support for RTMP/ RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast

Audio encoding:
- Audio input: digital/analog/mixed
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC/AAC+/AAC++/MP3/MP2/AC3 optional
- Encoding bit rate: AAC: 48000-256000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/AC3: 40000-640000 adjustable
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disable/enable/enable and resampling is 8K optional

OSD:
- Transparency: 0-128 adjustable
- Type: Text/Picture/Scrolling Text
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: 16 LOGOs can be uploaded for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: Gigabit
- Configuration management: configuration management through WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: <5W
- Working temperature: -20℃+60℃
- Operating humidity: <90%, no condensation
- Product Size: 20.5 x 10.5 x 3.5 cm

Package Included:
- 1 x Set of Video Encoder
