400W BL Spindle Motor w/ DDBLDV1.0 Brushless DC Motor Driver 12000RPM for CNC Engraving Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$122.14
  • Price in reward points: 1221 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $119.70 $117.25 $113.59 $108.70 Contact US
Quantity:
Buy it now Add cart

You might like

Brushless Motor Driver without Hall Controller CNC for Spindle Engraving Machine NVBDL+

Brushless Motor Driver without Hall Controller CNC for Spindle Engraving Machine NVBDL+

$50.76

(0)
400W BLDC Motor Driver Controller Engraving Machine ER11 Principal Axis CNC DC Brushless Stationary Fixture for Three Suites

400W BLDC Motor Driver Controller Engraving Machine ER11 Principal Axis CNC DC Brushless Stationary Fixture for Three Suites

$116.98

(0)
MPG02 Standard Pulse Generator Handwheel + CNC Engraving Machine Control Box NCB02

MPG02 Standard Pulse Generator Handwheel + CNC Engraving Machine Control Box NCB02

$259.39

(0)
Brushless Motor Driver without Hall Controller CNC + Motor for Engraving Machine NVBDL+

Brushless Motor Driver without Hall Controller CNC + Motor for Engraving Machine NVBDL+

$114.26

(0)
400W BLDC Motor Driver Controller Engraving Principal Axis Machine CNC DC Stationary Fixture Switching Power Supply for Four Suites

400W BLDC Motor Driver Controller Engraving Principal Axis Machine CNC DC Stationary Fixture Switching Power Supply for Four Suites

$144.14

(0)
Brushless Motor Driver without Hall Controller CNC + Motor + Motor Mount for Engraving Machine NVBDL+

Brushless Motor Driver without Hall Controller CNC + Motor + Motor Mount for Engraving Machine NVBDL+

$125.47

(0)
600W DDBLDV1.0 Brushless DC Spindle Motor Driver Controller for CNC Engraving Machine

600W DDBLDV1.0 Brushless DC Spindle Motor Driver Controller for CNC Engraving Machine

$46.42

(0)
Upgraded 400W 12000RPM Brushless Spindle Motor Air Cooled ER11 Collet Holder with Driver Motor Clamp

Upgraded 400W 12000RPM Brushless Spindle Motor Air Cooled ER11 Collet Holder with Driver Motor Clamp

$123.88

(0)

400W BL Spindle Motor w/ DDBLDV1.0 Brushless DC Motor Driver 12000RPM for CNC Engraving Machine


Description:
DDBLDV1.0 is a High performance BL motor Driver with the chip SCM1243MF of SANKEN inside. It appropriate to driver little and middle power Brushless DC motor. The most power is 750W. To driver the same motor, this driver can make more speed and more power to motor. It’s control method is sample and reliable.

Specifications:
- Three-phase intelligent driver chip
- Supply voltage24~60VDC
- Input electrical signal TTL compatibility
- No current when static
- Easy to install
- Max. power output is 600W
- There are 3 methord of speed control, regulation resistance inside, voltage signal, PWM signal
- Drive BL motor the most rotation to 12000r/min
- There is speed port, it’s easy to measure the rotation of BL motor.
- There are overvoltage, overcurrent and lock rotor test inside.
- There is IPM chip SCM1243MF inside, It’s more stabilize than MOSFET.
- Weight: 250g

Application:
It is suitable to various kinds of small or middle size of automation equipment and instrument, like the small size engraving machine and chip mounter.

User Manual Download: Click Here

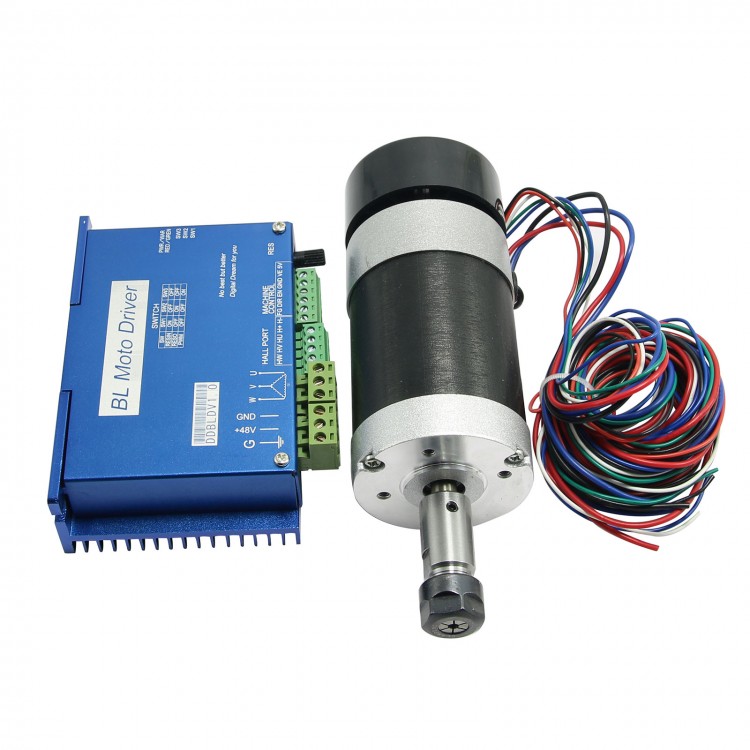

Package list:
- 600W DDBLDV1.0 BL Motor Driver 1pc
- 400W Spindle brushless motor with ER11 clamp 1pc
- Motor extension cable 1pc
