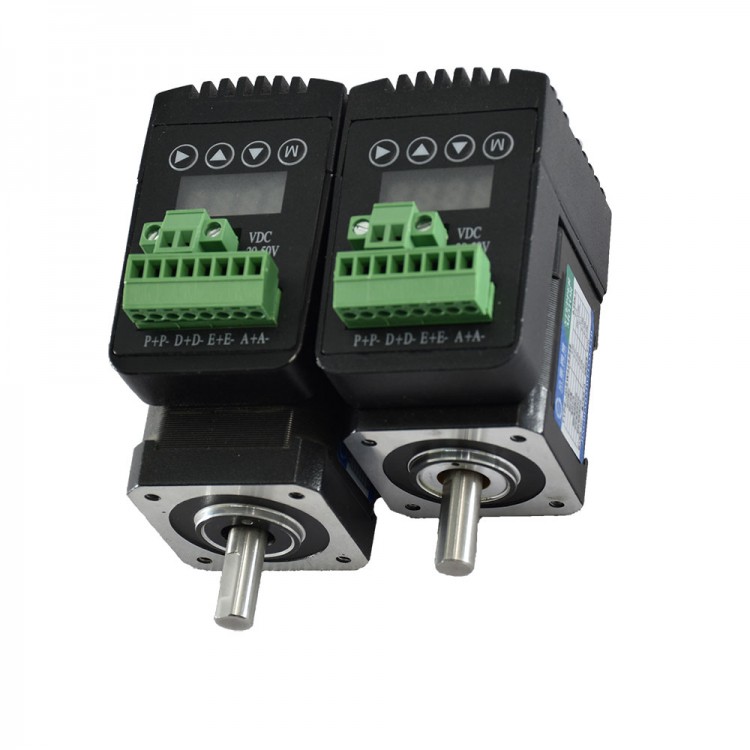

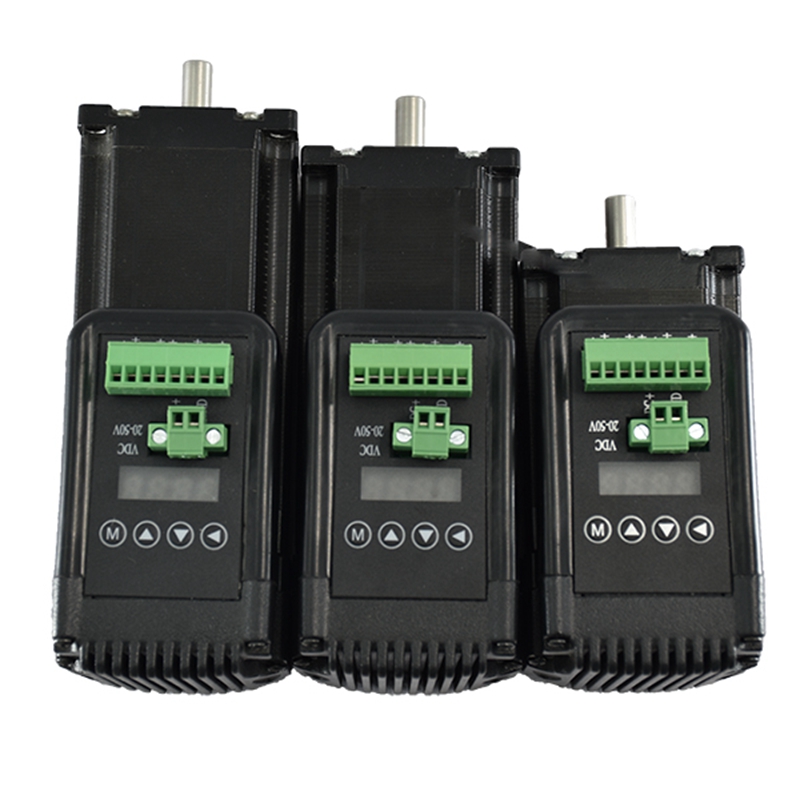

• 42-60 Back Head Closed-loop All in One Stepper Motor Support Simple PLC Mode and JOG Inching Mode

42-60 Back Head Closed-loop All in One Stepper Motor Support Simple PLC Mode and JOG Inching Mode

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.29
  • Price in reward points: 483 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.32 $46.36 $44.91 $42.98 Contact US
Quantity:

42-60 Back Head Closed-loop All in One Stepper Motor Support Simple PLC Mode and JOG Inching Mode

Wiring mode:

AL-: Alarming Signal; connect PLC or controller alarming signal interface
AL+: Alarming Voltage; VDC (+5V and +24V)
EN-: Enable Signal; connected to PLC or controller enable signal terminal
EN+: Enable Voltage; VDC (+5V and +24V)
DR-: Direction Signal; connected to PLC or controller direction signal terminal
DR+: Direction Voltage; VDC (+5V and +24V)
PU-: Pulse Signal; connected to PLC or controller pulse signal terminal
PU+: Pulse Voltage: VDC (+5V and +24V)
VCC: Input power supply (positive pole); VDC (24-60V); recommended common voltage 24V/36V/48V
GND: Input power supply (negative pole); VDC (24-60V); recommended common voltage 24V/36V/48V

Package Included:
- 1 x 42-60 Stepper Motor
