| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $14.85 | $14.54 | $14.09 | $13.48 | Contact US |
XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (24V 7000r/min) with Threaded Shaft
$31.66
XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (12V 3500r/min) with Threaded Shaft
$31.66
200W 24V DC Worm Gear Reduction Motor XD5D200-24A18S 1800RPM DC Motor and NRV40 Gear Reducer
$185.00

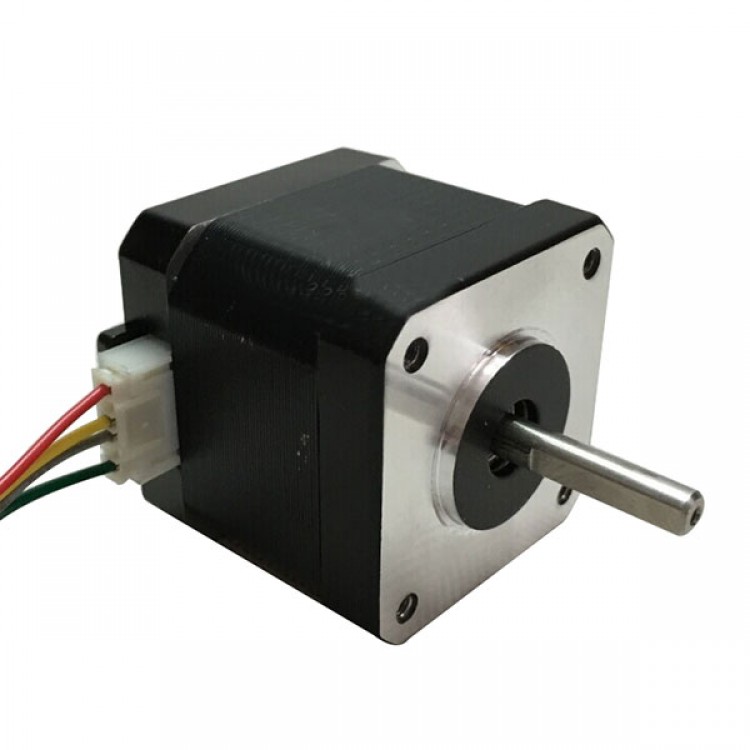

42 Stepper Motor 42BYGH 2 Phase 1.8 Degree 40mm 12V 3D Printer Motor Carving Machine
Description:
- Length: 40mm
- Current: 1.2A/ 1.7A
- Torque: 0.366N/M 4 cables
- Axis dia: 5mm
- Voltage: 2.8V
- Current: 1.68A
- Resistance: 1.65 ohm
- Inductance: 3.2mH
- Static moments: 3.6kg/cm
- Outlet: 4
- Moment of inertia: 54g/cm²
- Motor weight: 0.28kg
- Detent torque: 150KG/cm
- Length: 40mm
Note:
- The motor axis has different types, default sending 23MM D type axis, leading wires, if you have different demand on specification, please be sure to notice us when placing the order
- Motor axis length has 13mm round axis/ 20mm round axis/ 23mm round axis/ 23mm D type axis
- Motor cable: lead wire/ plug wire / with 30cm cable
