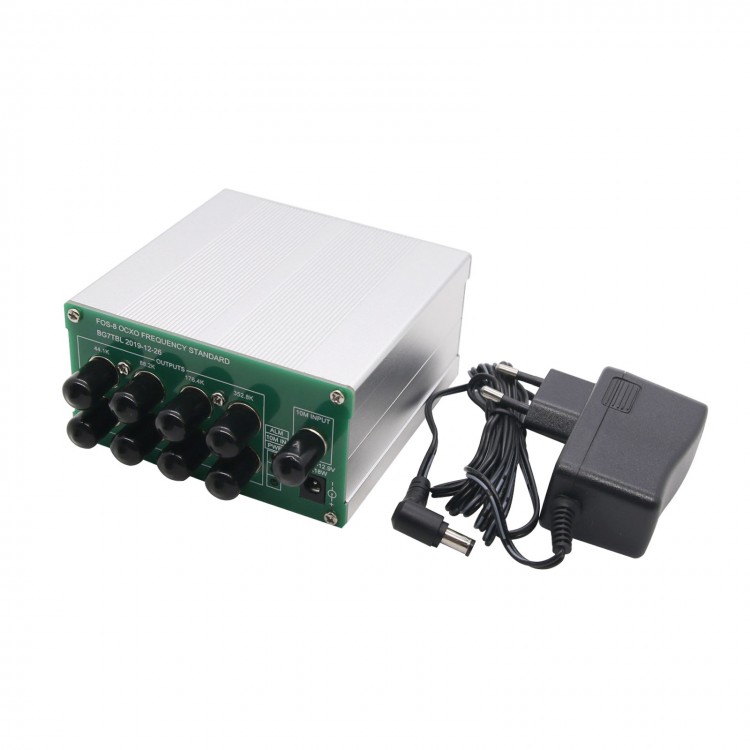

44.1K 48K Word Clock FOS-8 OCXO Frequency Standard Assembled Support For Rubidium Clock
Features:
- 44.1K 48K word clock with built-in OCXO can connect to rubidium clock
- Power Supply: DC11.7-12.9V. Maximum 12W
- Input: 10M, 0.1Vpp-5Vpp
- Output:
8-Port
Frequency: 44.1K-88.2K-176.4K-352.8K-48K-96K-192K-384K
Waveform: 3.3Vpp square wave (5Vpp square wave optional)
- Indicators:
PWR: Power Indicator
EXT 10M: External 10M Input Indicator
ERROR: It is lit when OCXO is preheating and it can be used but not with perfect performance. It flashes when frequency is unlocked and it cannot be used.
- Adjustable Frequency: Use F.ADJ to adjust the frequency of the internal OCXO. Built-in constant temperature crystal oscillator frequency standard. Signals are output even when there is no external input.
- N.W.: 600g
Package Included:
- 1 x Word Clock
- 1 x DC12V /1.0A Power Adapter
Note: It is finished and ready to use.
FAQ:
Q1: What is this?
A1: It can output accurate frequency for speakers.
Q2: What can it be used for?
A2: It provides a frequency standard for audio equipment, make it sound smoothly, enhanced details and make background more quiet.
