48V 5500W Pure Sine Wave Inverter Driver Mainboard with MOS Pipe

Tags: Inverter Driver Mainboard

Availability: In stock, usually dispatched in 1 business day

  • Price:$79.97
  • Price in reward points: 800 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $78.37 $76.77 $74.37 $71.17 Contact US
Quantity:

48V 5500W Pure Sine Wave Inverter Driver Mainboard with MOS Pipe

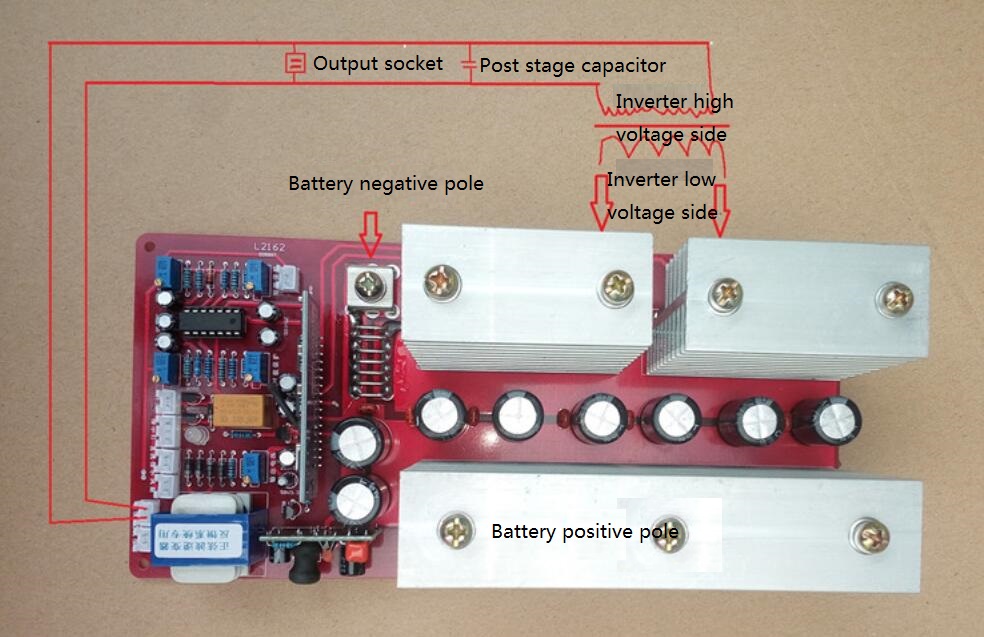

Main board interface description:
- Switch:connects a small switch,controlling ON/OFF or standby.
- LED indicator:standby or switch-on indicator
- DC indication:connects DC voltmeter
- Fan:connects 12V 2A fan
- Feedback:inverter high voltage side feeding back to mainboard
- AC indication:connects AC voltmeter

Features: auto stable voltage,over voltage protection,under voltage protection,short circuit protection,over load protection,over heat protection.

External connection a power frequency transformer, it can convert output sine wave AC. Optional Output for Your Choice: 220V, 50Hz or 110V, 60Hz.
It uses TO-247 encapsulated large power MOS pipe,large bearing current.
After you connects the mainboard to the inverter and battery,it can work.

We also supply inverter mainboard: 12V(1500W);24V(3000W);36V(4000W);60V(6500W).If you need,please contace us.

Note: Please leave a message about the output specification you want when purchasing. Thank you!

Package List:

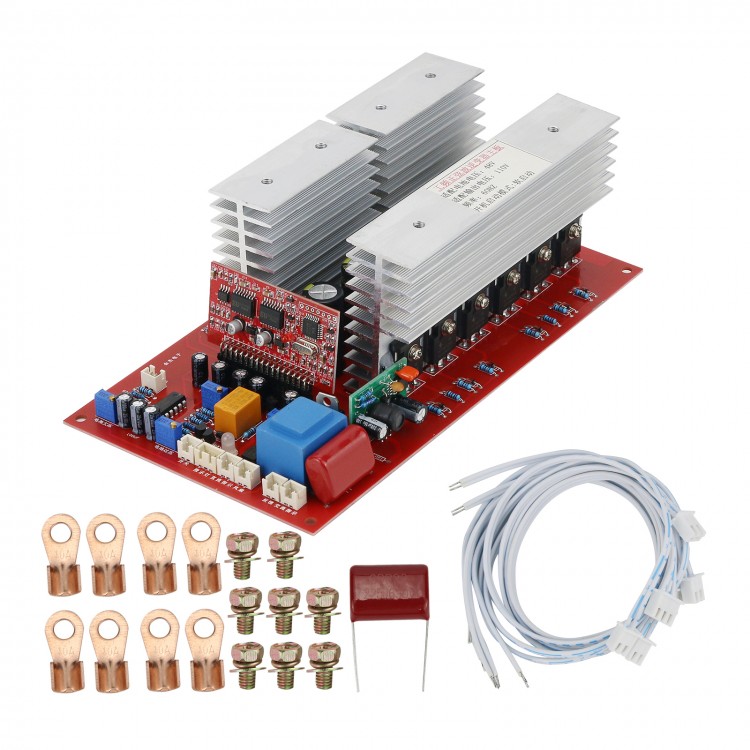

- 1 x Inverter Driver Mainboard
