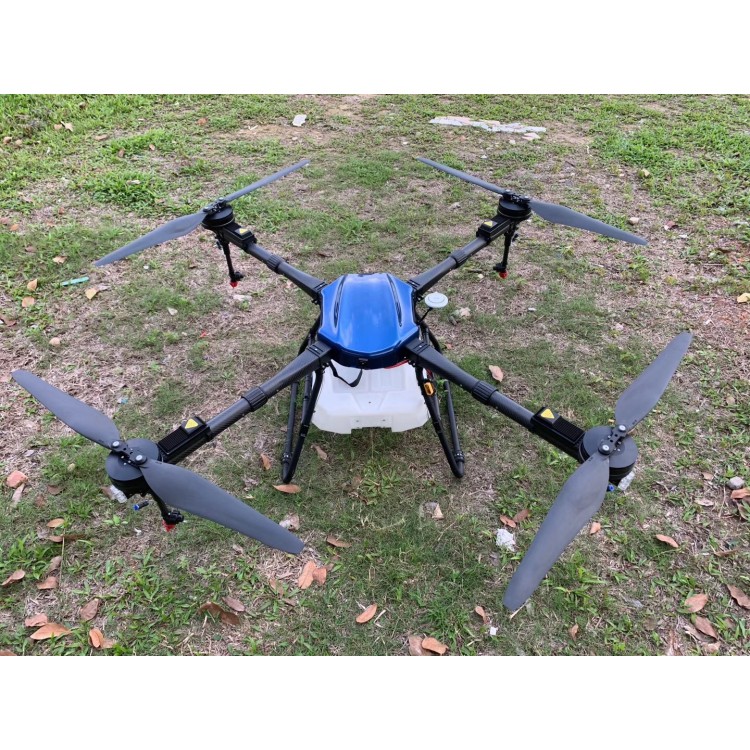

4Axis Agriculture Drone 10L Spray Drone Foldable 1300 mm HD PAD+FPV Camera Assembled Y4-10L

4Axis Agriculture Drone 10L Spray Drone Foldable 1300mm HD PAD+FPV Camera Assembled Y4-10L

Specifications:
Body:
- Symmetrical motor wheelbase: 1300 mm
- Overall dimensions of folded arms: 570 x 570 x 500 mm
- Material: carbon fiber and aviation aluminum
- Structure: foldable, quick-release structure

Power System:
- Quantity: 4 sets
- Power system: 8120 100KV integrated power system
- Propeller: 3090

Spraying System:
- Medicine box volume: 10L
- Standard working load: 10L
- Nozzle type: high pressure nozzle
- Number of nozzles: 4
- Nozzle flow: 0.4-0.8 L/min
- Spray width: 3-5m
- Atomization particle size: 60-180 um

Flight Parameters:
- Total weight (without battery): 10kg
- Standard take-off weight: 23kg
- Maximum effective take-off weight: 25kg
- Maximum operating flight speed: 6 m/s
- Maximum flight speed: 8 m/s
- Maximum flight altitude: 2000m
- Operation flying height: 1-3 m from the top of the crop
- Recommended working environment temperature: 0℃ to 40℃

Features:
1. The arm is upgraded to a square carbon fiber tube with better stability;
2. This model has been mass-produced more than 1,000 pcs, with good consistency and stability;

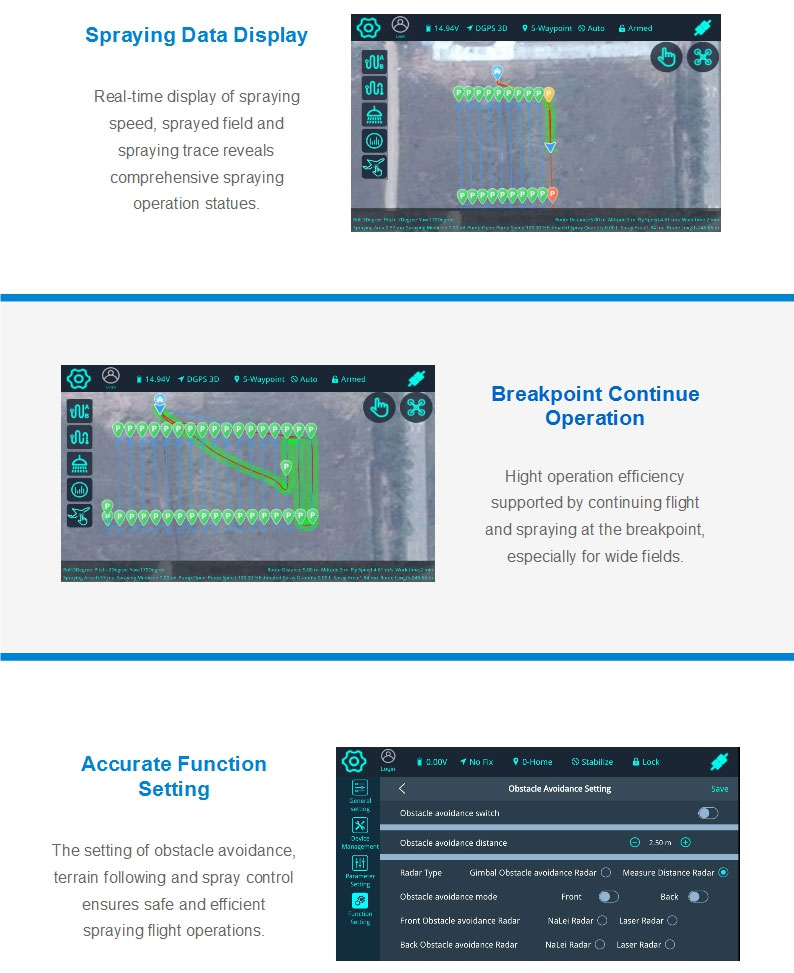

3. Hankun F2 intelligent operating system can realize variable spraying and reserve obstacle avoidance interface.

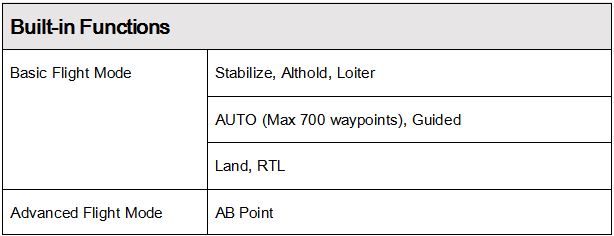

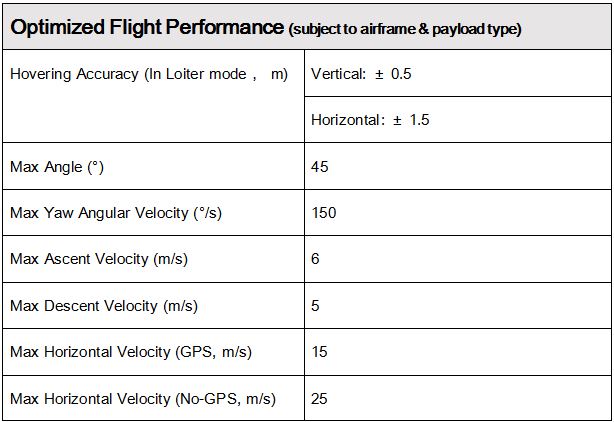

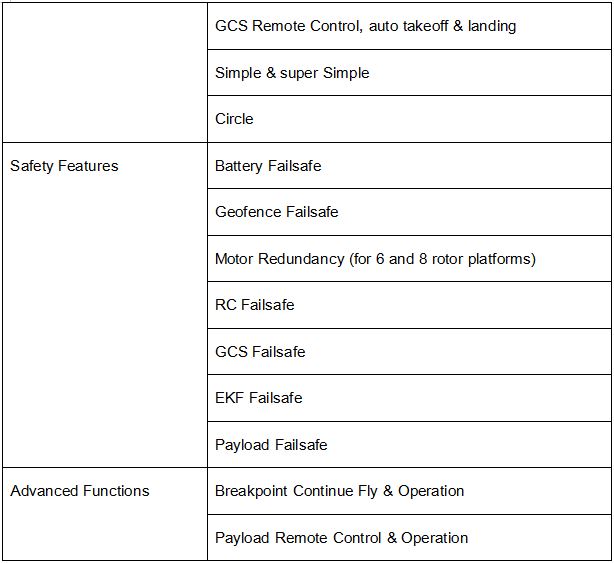

F2 Flight Control:

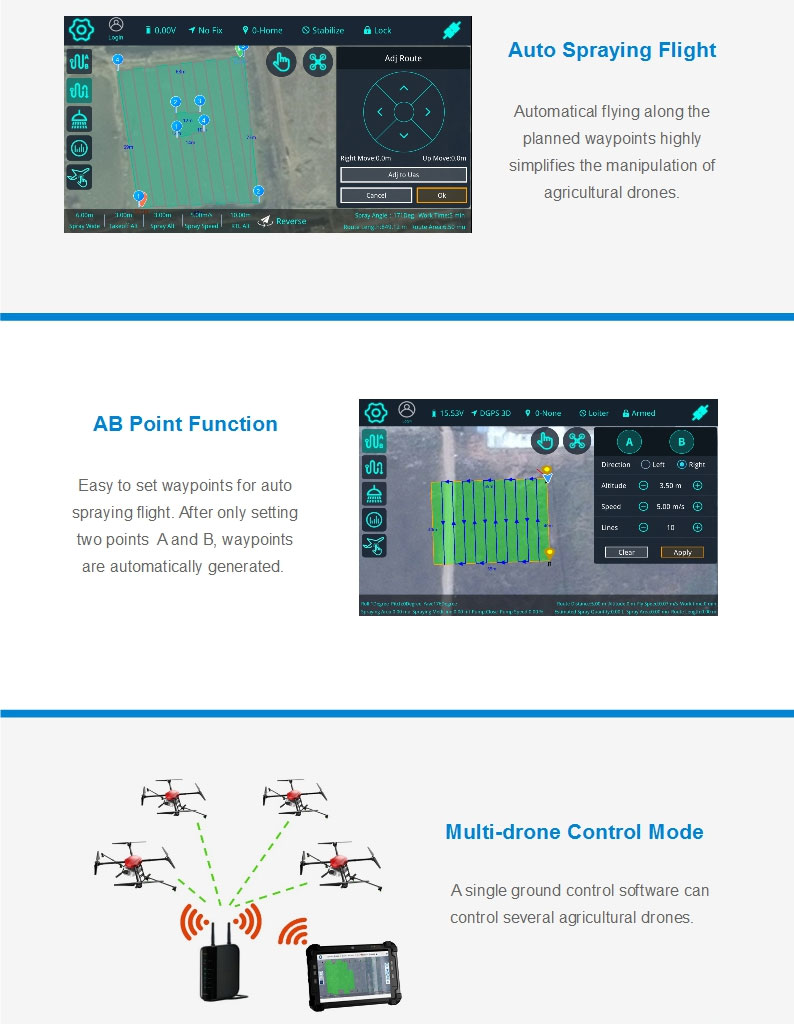

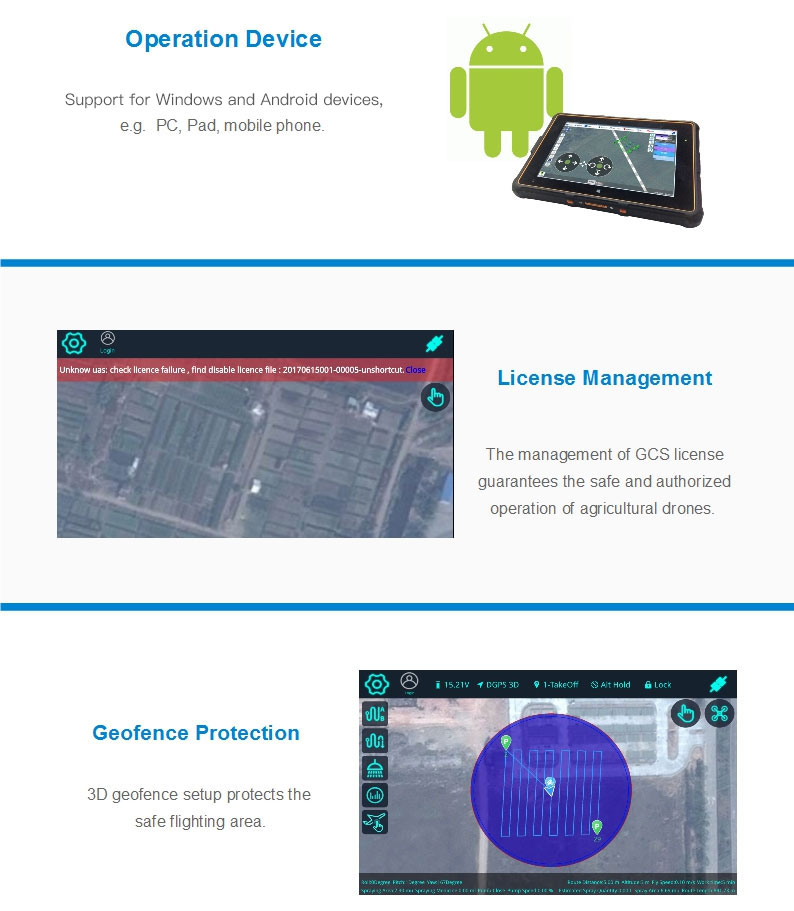

The hardware of our flight control system is improved based on pixhawk. Our software is non open source version. So our hardware is compatible with pixhawk software. The firmware is special designed for agricultural drones. With our ground control software for android equipment, this flight control system supports agricultural drones flying in an automatic way to spread farm insecticide and chemicals.

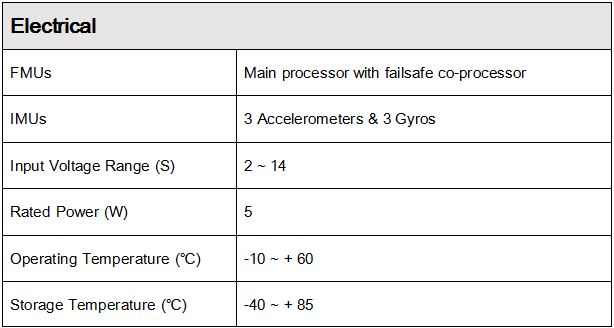

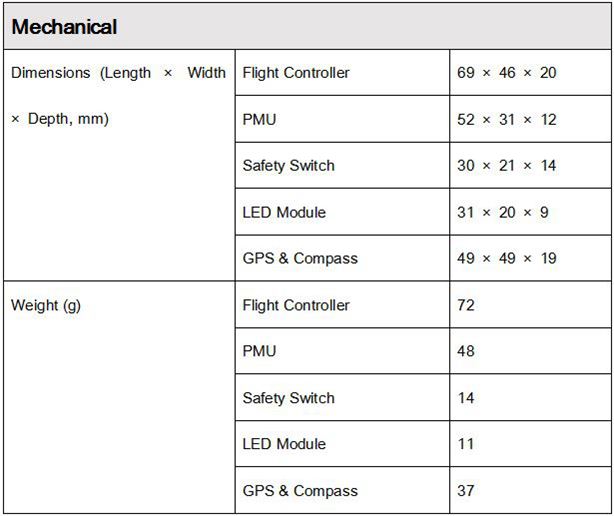

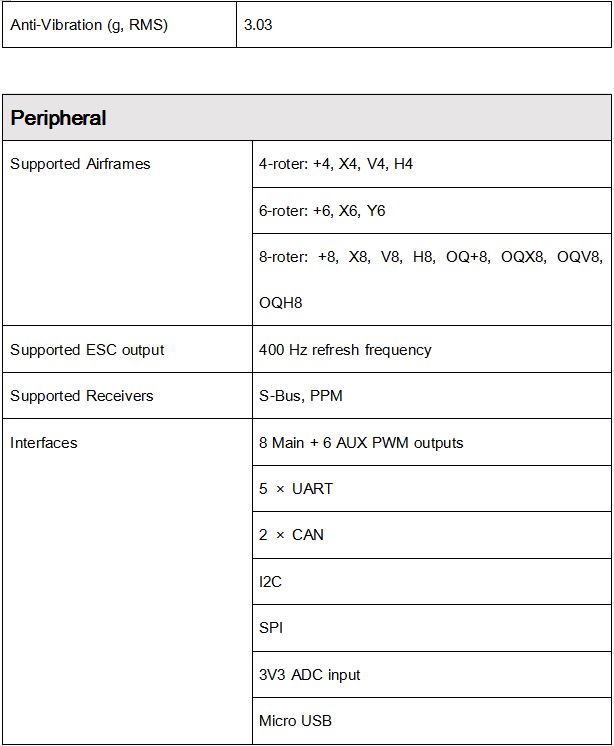

Specifications:








Package Included (It is already assembled and debugged):
1. The whole machine (frame + motor + ESC + propeller + landing gear)
2. Integrated remote control + high-definition PAD + FPV camera, support picture-in-picture function of ground station
3. Han Kun F2 intelligent flight control operating system
4. Standard equipped with electromagnetic flowmeter, ground imitation radar, medicine box filter and vertical spray system
5. High-performance dual-channel charger x 1
6. Flight case x 1

Note:
- It is assembled and ready to use.
- Lithium battery is not included, 18C12S 12000mA lithium battery is recommended.
- We also support function customization (such as imitation, obstacle avoidance, aviation launch, etc.), please contact us.
