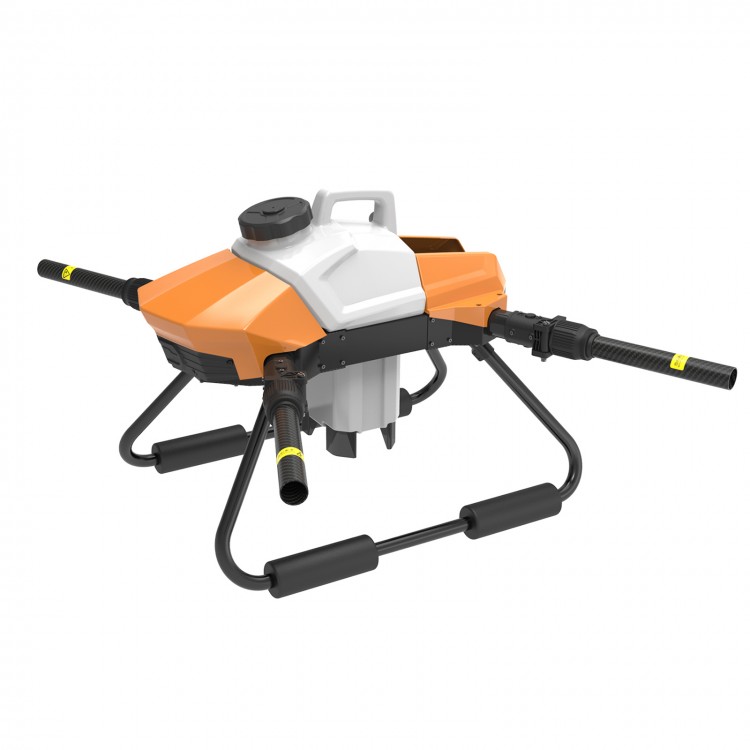

G06/V2.0 4Axis Agricultural Drone Frame Assembled Wheelbase 1172MM 6L Water Tank + Spray System

G06/V2.0 4Axis Agricultural Drone Frame Assembled Wheelbase 1172MM 6L Water Tank + Spray System

Features:
- Integrated Body: G06 adopts integrated design of fuselage, which greatly reduces the number of parts, and has higher strength and better waterproof performance.
- Three-section Compact Body: The G06 adopts a three-section body layout design. The structure is exquisite and the shape is unique.
- Rectangular Layout Scheme: G06 adopts a flat rectangular layout scheme, extend arms to both sides to extend the nozzle spacing to increase spray width.
- Quick-release Tank: Quick-release tank can realize quick change the tank, which is easy to operate and saves time and effort.
- Small body can be quickly folded: The G06 has a compact frame and can also be quickly folded for easy transit transportation.
- Optional extension rod nozzle: The extension rod nozzle can effectively reduce the drift of droplets, and the root is connected with soft silicone to avoid the nozzle from breaking when impacted by external forces.
- Optional Fixed-altitude Radar: G06 reserves installation position of fixed-altitude radar, and can be equipped with millimeter-wave radar to achieve more accurate height-fixing and ground-like effects.
- Optional FPV Camera: G06 can be equipped with an FPV camera to meet the visual needs of long-distance operations and make flying more assured.
- Modular Design: The whole body of G06 adopts a modular design, and each part can be quickly removed and replaced for easy maintenance.

Product Parameters:
Frame Parameters:
- Wheelbase: 1172mm
- Folding size: 605*640*475mm
- Water tank capacity: 6L
- Frame weight: 4.8kg
- Maximum take-off weight: 17.4kg

Recommended Power System:
- Motor: X6/6215
- Propeller: 23-24"
- ESC: 60-80A FOC
- Power supply voltage: 12S
- Recommended single-axis load: 4-5kg

G06 Drone Frame Tests:
Basic Parameters:
- Wheelbase: 1172mm
- Unfolded size: 1580*1270*475mm
- Folded size: 605*640*475mm
- Water tank capacity: 6L
- Frame weight: 4.8kg
- Frame + spray system weight: 5.8kg
- Frame + power system weight: 8.8kg
- No-load take-off weight: 11.4KG (8000mAh battery 2.6kg) (battery is not included)
- Full load takeoff weight: 17.4kg

Spray Width Test:
- Water pump type: brush water pump
- Nozzle type: silicone long version single nozzle 1.5
- Conditions: height 4.0 meters, speed 5 meters; spray width 4.5 meters
- Conditions: height 3.5 meters, speed 5 meters; spray width 4.0 meters
- Conditions: height 3.0 meters, speed 5 meters; spray width 3.5 meters

Recommended Configuration:
- Power system: Hobbywing X6, 30mm pipe diameter, power cord length: 450mm
- Flight control: for Jiyi K3APRO
- Remote control: for Skydroid T10+mini camera
- Battery: For Zenfon 12S 8000mAh battery (battery is not included)

Package Included:
Frame:
- 1 x Drone Frame + Water Tank
- 4 x Arm Parts
- 2 x Landing Skids
- 1 x GPS Bracket
- 12 x Fixing Screws M3*10 For Landing Skids
- 8 x Fixing Screws M3*12 For Spray Rails
- 10 x Spare Screws M3*10

Spray System:
- 1 x Brush Water Pump
- 1 x Water Pump Speed Controller
- 4 x Spray Rod Parts
- 1 x 6mm Water Pipe
- 1 x 8mm Water Pipe
- 1 x Pneumatic Connector

Note:
- Battery and other recommended accessories are not included.
- It is assembled.
