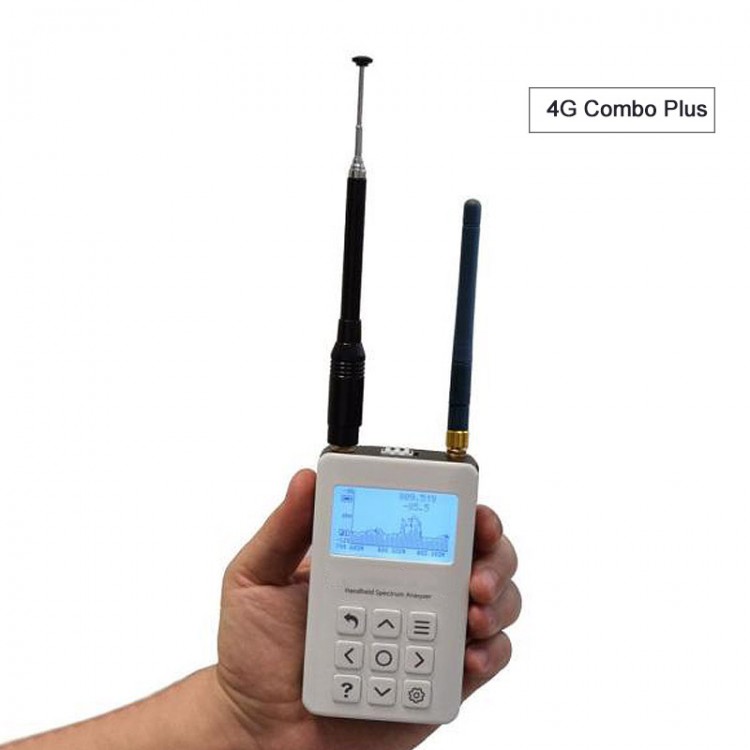

4G Combo Plus Portable Spectrum Analyzer 4G Signal Full Band 50KHz-960MHz & 240-4000MHz

4G Combo Plus Portable Spectrum Analyzer 4G Signal Full Band 50KHz-960MHz & 240-4000MHz

Description:
This is a powerful spectrum analyzer that covers the entire range from 50KHz to 4GHz without any gaps or restrictions. Future firmware license features will enable it to extend the range to 5.1GHz.

Compared to standard 3G Combo model, the new slim design provides an excellent rugged housing, with a sturdy metal body and bright varnish, with higher frequency coverage and power sensitivity, USB connector on the side is more convenient.

What is a spectrum analyzer for RF Explorer?
A spectrum analyzer is a special device designed to detect very sensitive signal radiation, identify signal interference, adjust antenna settings, detect signal leakage and find hidden errors, and many other applications.

Small size, high sensitivity and rugged design make it an ideal instrument for indoor and outdoor measurements.

After connecting to a computer, it can be controlled by free software, which can be downloaded, and has excellent high-resolution graphics, data storage and reply functions.

Specifications:
- Frequency band:
* Left connector: 50KHz-960MHz (0.05-960MHz)
* Right connector: 240-4000MHz
- Frequency resolution: 1KHz
- Single scan frequency span: 2-960MHz
- Internal selectable LNA 25dB gain
- Internal selectable attenuator 30dB and 60dB
- Wifi analyzer for 2.4GHz band
- Graphic LCD 128x64 pixels, high outdoor visibility
- Backlight, high indoor visibility
- Standard SMA 50 ohm connector
- Included broadband 144/433MHz dual-band telescopic antenna
- Comes with UHF 400-900MHz antenna
- Comes with 2.4GHz whip antenna
- Amplitude resolution: 0.5dBm
- Dynamic range: -125dBm to 10dBm
- Absolute maximum input power: +30dBm
- Average noise level (typical LNA): -125dBm
- Frequency stability and accuracy (typical value): ±1.0ppm
- Amplitude stability and accuracy (typical value): ±3dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW): Automatic 2.6Khz to 600Khz
- Support for Windows, Linux and MacOS X

Features:
- An internal LNA amplifier and optional attenuator can handle other power ranges.
- 50KHz low frequency support, covering LF, MF, HF, VHF and UHF
- High frequency support covers all ranges up to 4GHz with no gaps.
- New Help and Settings buttons to improve user interface and preset configuration selection with just two clicks
- Ideal for all available HAM bands.
- Lightweight and pocket size
- Rugged metal casing
- Spectrum analyzer mode with peak maximum and hold, normal, overlay and average modes
- High capacity, can be charged via USB
- Open source software and API library support for multi-platform Windows/Linux/MacOS

Application:
- RF spectrum analysis of FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
- WiFi analysis and fine-tuning
- Interference search
- EMC pre-test
- RF device tuning (signal generator is used to track SNA)

Package Included:
- 1 x Spectrum Analyzer
- 1 x Mini USB Cable
- 1 x Dual Band 144/430MHz Telescopic Antenna
- 1 x UHF 400-900Mhz Antenna
- 1 x 2.4GHz Whip Antenna
- 1 x EVA Box
