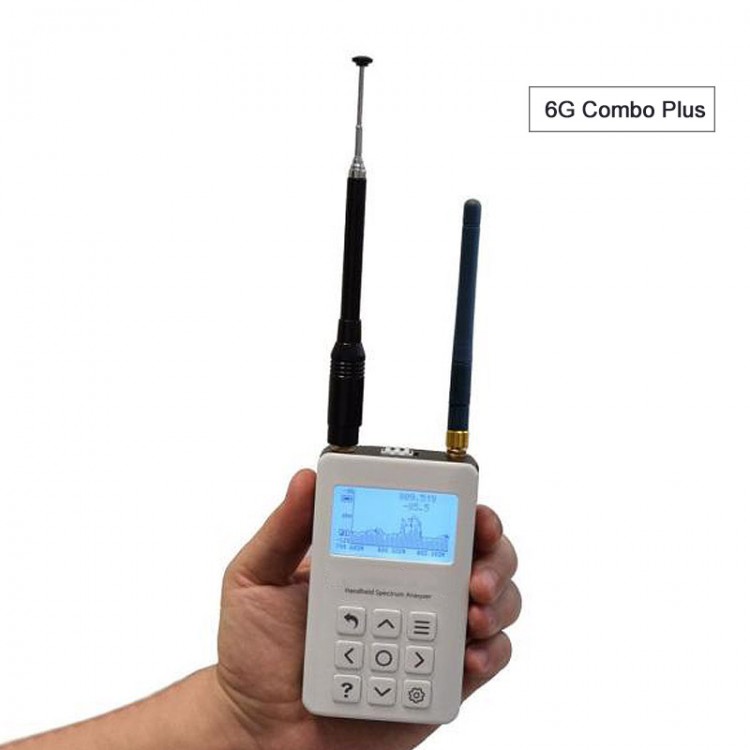

6G Combo Plus Portable Spectrum Analyzer 6G Signal Full Band 50KHz-960MHz & 240-6100MHz

6G Combo Plus Portable Spectrum Analyzer 6G Signal Full Band 50KHz-960MHz & 240-6100MHz

Description:
This is the most powerful spectrum analyzer model, covering full 6GHz range from 50KHz to 6.1GHz without any gaps or restrictions.

Compared to standard 6G Combo model, the new SLIM design provides an excellent rugged case, a sturdy metal case and bright varnish, a more convenient USB connector on the side.

What is an spectrum analyzer for RF Explorer?
It is a special device designed to detect very sensitive signal radiation and identify signal interference, adjust antenna settings, detect signal leakage and find hidden errors, and many other applications.

Small size, high sensitivity and rugged design make it an ideal instrument for indoor and outdoor measurements.

After connecting to a computer, it can be controlled by free software, which can be downloaded, and has excellent high-resolution graphics, data storage and reply functions.

Features:
- An internal LNA amplifier and optional attenuator can handle other power ranges
- 50KHz low frequency support, covering LF, MF, HF, VHF and UHF
- High frequency support covers all ranges up to 6.1GHz with no gaps.
- New Help and Settings buttons to improve user interface and preset configuration selection with just two clicks
- Ideal for all available HAM bands.
- Lightweight and pocket size
- Solid metal casing with high-quality varnish
- Spectrum analyzer mode with peak maximum and hold, normal, overlay and average modes
- High-capacity, can be charged via USB
- Open source software and API library support for multi-platform Windows/Linux/MacOS

Specifications:
- Frequency band:
* Left connector: 50KHz-960MHz (0.05-960MHz)
* Right connector: 240-6100MHz
- Frequency resolution: 1KHz
- Single scan frequency span: 2-960MHz
- Internal selectable LNA 25dB gain
- Internal selectable attenuator 30dB and 60dB
- Wifi analyzer for 2.4GHz and 5GHz frequency band
- Graphic LCD 128x64 pixels, high outdoor visibility
- Backlight, high indoor visibility
- Standard SMA 50 ohm connector
- Included broadband 144/433MHz dual-band telescopic antenna
- Comes with UHF 400-900MHz antenna
- Comes with 2.4/5GHz dual-band antenna
- Amplitude resolution: 0.5dBm
- Dynamic range: -125dBm to 10dBm
- Absolute maximum input power: +30dBm
- Average noise level (typical LNA): -125dBm
- Frequency stability and accuracy (typical value): ±1.0ppm
- Amplitude stability and accuracy (typical value): ±3dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW): Automatic 2.6Khz to 600Khz
- Support for Windows, Linux and MacOS X

Application:
- RF spectrum analysis of FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
- WiFi analysis and fine-tuning
- Interference search
- EMC pre-test
- RF device tuning (signal generator used to track SNA)

Package Included:
- 1 x Spectrum Analyzer
- 1 x Mini USB Cable
- 1 x Dual Band 144/430MHz Telescopic Antenna
- 1 x UHF 400-900Mhz Antenna
- 1 x Dual Frequency 5/2.4GHz Antenna
- 1 x EVA Box
