4K HDMI Extender Over Ethernet Cable Cat5e Cat6 18Gbps with One-Way IR 50M HDC-EDB50C

4K HDMI Extender Over Ethernet Cable Cat5e Cat6 18Gbps with One-Way IR 50M HDC-EDB50C

Description:
The HDMI 18Gbps Extender can extend high definition video / audio signal and one-way IR, and the distance is up to 164ft/50m between transmitter and receiver over a single Cat5e/6 cable. It supports resolution up to 4K 2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equipped with one-way IR pass-through which allows for source control and one HDMI loop output.

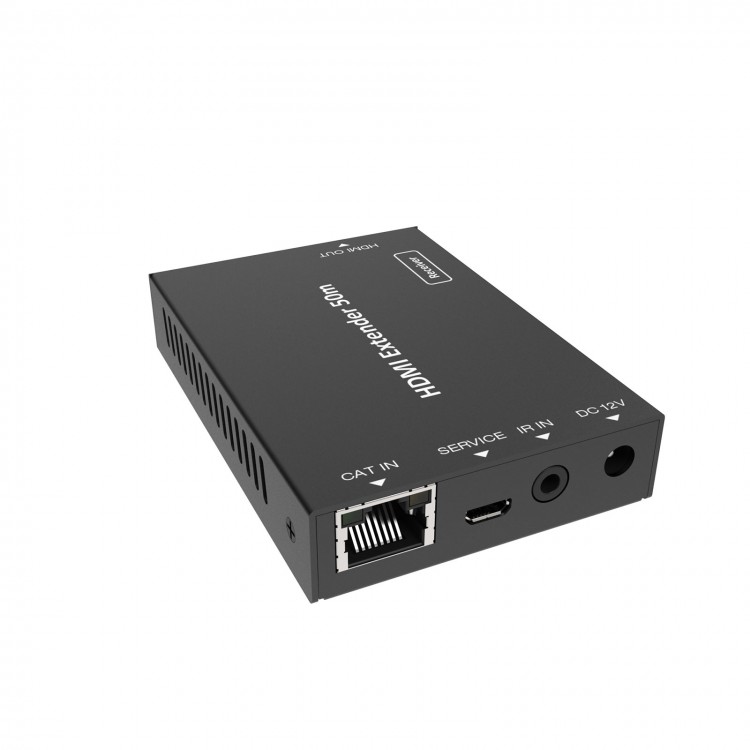

The extender includes two units: transmitter and receiver. The transmitter unit is responsible for catch HDMI input signal and carries the signal via one cost effective Cat6 cable, and emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting IR control signal.

The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.

Features:
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps bandwidth
- Supports input and output video resolution up to 4k 2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters
- Supports one HDMI loop output

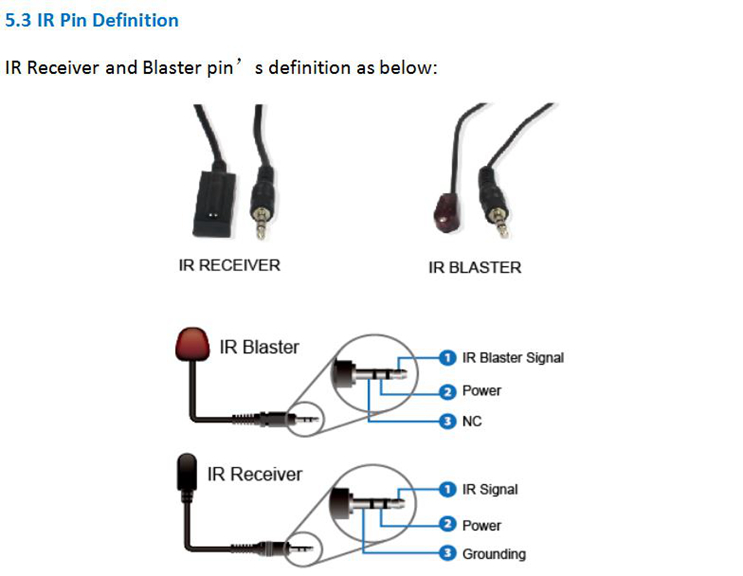

- Supports one-way IR pass-through
- Supports HDR function
- Supports PoC (Power over Cable) function, which means that either transmitter or receiver is powered by 12V/1A power adapter, the other doesn't need power supply
- Supports automatic copy EDID function
- Compact design for easy and flexible installation

Package Included:
- 1 x HDMI 18Gbps Extender (Transmitter)
- 1 x HDMI 18Gbps Extender ( Receiver)
- 1 x IR Blaster Cable (1.5 meters)
- 1 x 20~60KHz IR Receiver Cable (1.5 meters)
- 1 x 12V/1A Locking Power Adapter
- 4 x Mounting Ears
- 1 x User Manual
