4K HDMI Matrix 4x4 with Audio (Seamless Switching) for Set-top Box Computer Display Device Projector
Features:
* HDMI matrix enables seamless switching
* HDMI 1.4; Four HDMI input and four HDMI output ports
* 4K/30Hz HD transmission: 3840*2160/30Hz resolution, high-definition image output, more delicate color and vivid picture quality
* With stereo and optical audio output
* Anti-static technology: prevent electronic components from being damaged by static electricity
* Anti-surge technology: enhance product stability and prevent surge impact
* 4K*2K/30Hz: you can enjoy HD vision and experience the delicate world
* 3D imaging technology: 3D large-screen viewing and enjoying stereoscopic visual effects
* Compatible with multiple devices. Plug and play. It supports devices such as set-top boxes, desktop PC and laptops with HDMI interface to connect monitors, projectors, etc.
* It supports four inputs and same/different signal sources can be output
* Watch movies on a 3D large screen. It supports 3D stereoscopic imaging technology and you can experience immersive stereoscopic visual effects
* Support systems for Windows series, Mac OS and Linux. No need to install a driver. Plug and play
* Audio separation and synchronous output. With one optical port and one 3.5mm port, it can be connected to speakers and headphones
* Powerful chips: Using high-performance chips, it provides a better experience and avoids undesirable phenomena such as splash screen and snowflakes
* Widely used: It is suitable for home sharing, TV store, advertising display, multimedia teaching, etc.
Specifications:
* HDMI resolution: up to 4K/30Hz
* Support video format: 8/10/12 bit deep color
* Support audio format: for DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
* Max baud rate: 3x3.4Gbps
* Input cable distance: 4K/30Hz ≤ 15m/49.2ft AWG26 HDMI standard cable
* Output cable distance: 4K/30Hz ≤ 15m/49.2ft AWG26 HDMI standard cable
* Input ports: HDMI*4
* Output ports: HDMI*4
* Max working current: 0.6A
* Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
* Operating Temperature range: -15 to +45℃
* Operating Humidity range: 5 to 90%RH (No Condensation)
* Power supply: 12V/1A
* Dimension (LxWxH): 275 x 135 x 25mm/10.8 x 5.3 x 1"
* Weight: 720g/1.6lb

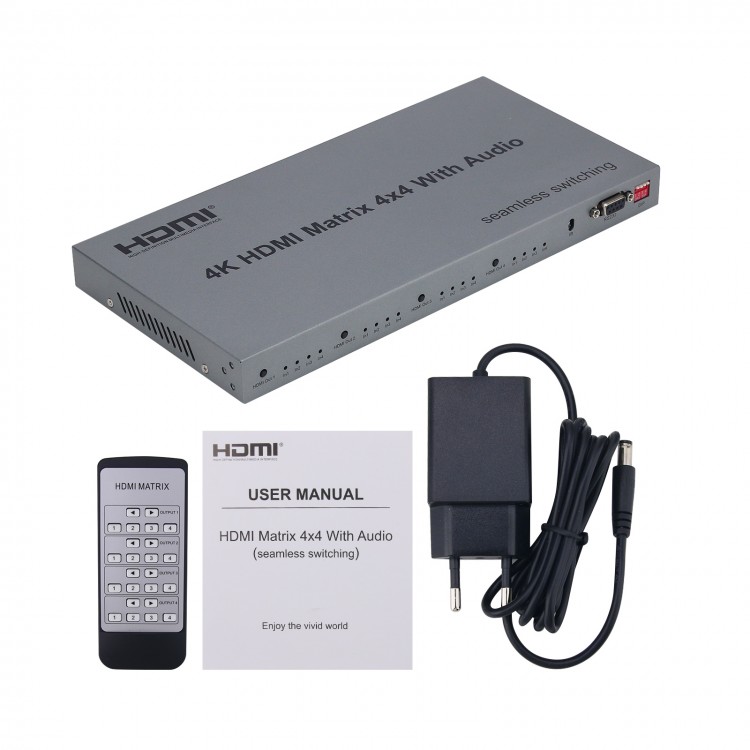

Package Included:
* 1 x HDMI Matrix
* 1 x User Manual
* 1 x IR Remote Control
* 1 x Power Adapter
