4WD Mecanum Robot Car Smart Car Chassis Kit Load Capacity 10KG w/ 80mm Omni Wheels Unfinished

Availability: In stock, usually dispatched in 1 business day

  • Price:$107.76
  • Price in reward points: 1078 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $105.60 $103.45 $100.22 $95.91 Contact US
Quantity:

4WD Mecanum Robot Car Smart Car Chassis Kit Load Capacity 10KG w/ 80mm Omni Wheels Unfinished

Features:

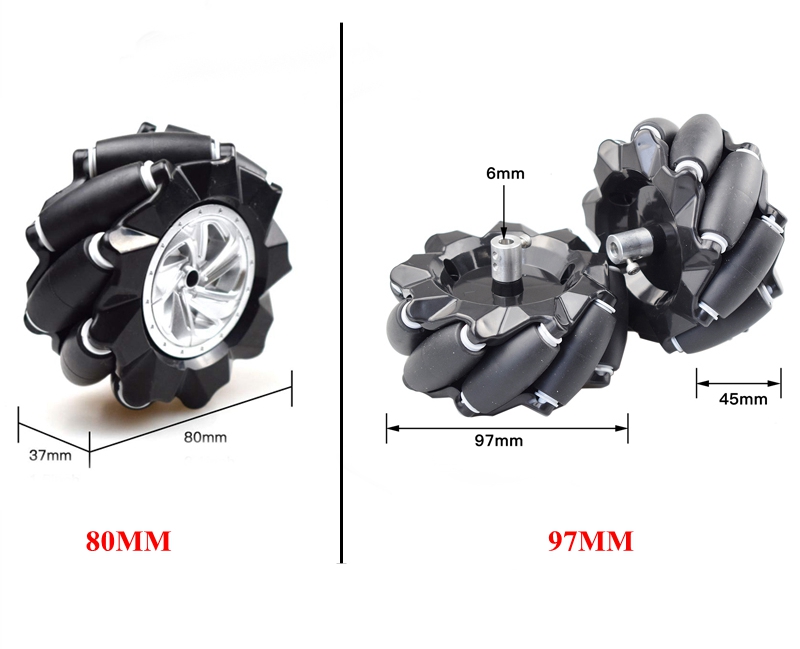

- 4pcs 80mm Mecanum wheels with 6mm hubs
- Metal bottom plate with elegant design
- Sturdy chassis with load capacity of about 10kg
- With hall sensor, 4pcs 12V motors performance stably
- Easy assembling of the unfinished chassis kit
- Unbeatable price

Chassis Parameters:

- Board Material: Metal
- Motor: 12V 330rpm Motors with Hall Encoder
- Load Capacity: About 10kg
- Chassis Weight: 1.3kg
- Speed: 1.2m/s

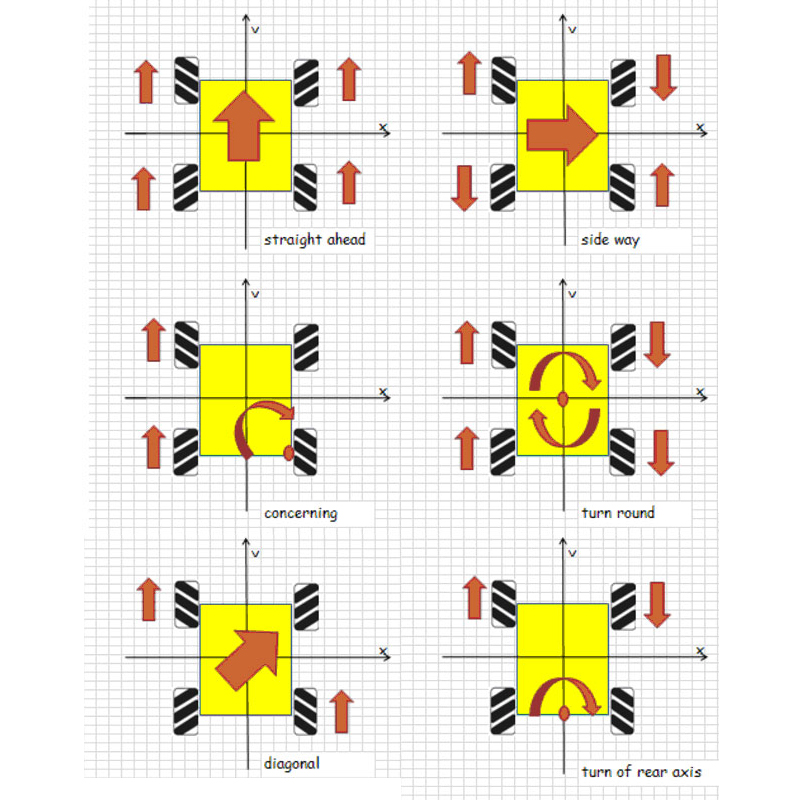

- Turning Radius: 0m
- Mecanum Wheel Material: Hard Plastic
- Motor Power: 7W
- Motor Rated Voltage: 12V
- Reduction Ratio: 1:30
- Encoder: The wheel turns one turn and outputs 360 pulses (the tire can resolve the rotation of 0.23°)

DC Brush Gear Motor:
- No-Load Current: 120mA
- Rated Torque: 3.5kg.CM
- No-Load Speed: 330rpm
- Rated Speed: 280rpm
- Rated Current: 1A
- Max. Torque: 5KG.CM
- Stall Current: 2.3A

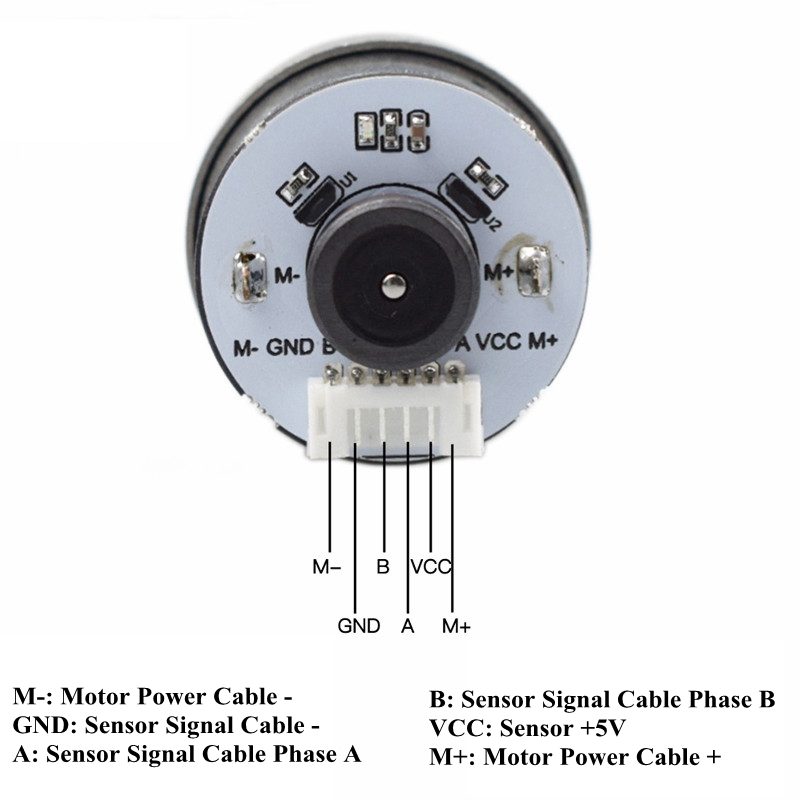

Encoder Parameters:
- Type: AB Phase Incremental Sensor
- Line Speed: 360
- Power Supply: 5V
- Interface Type: PH2.0
- Magnetic Ring: 11 Lines and 22 Levels
- Function: Adjusting Speed

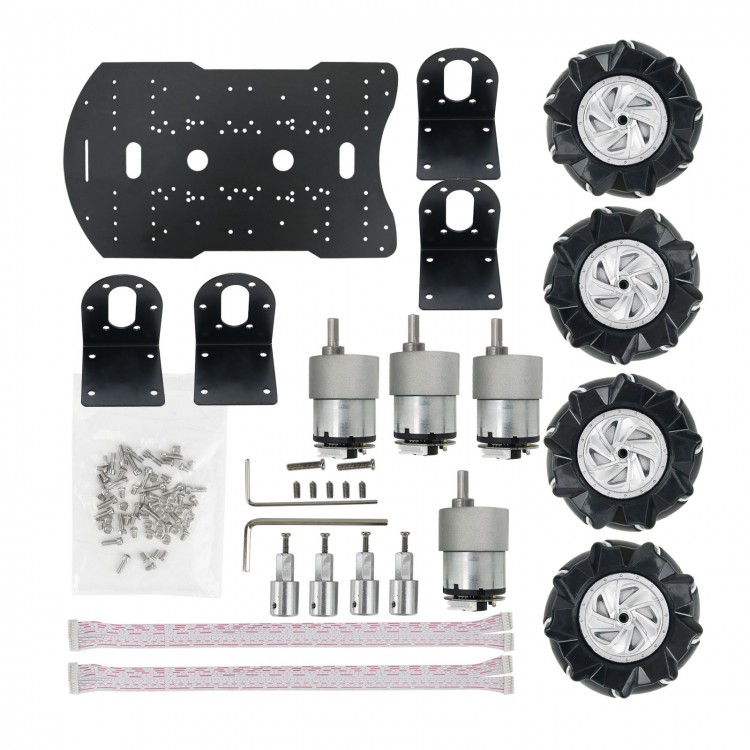

Package Included:
- 1 x Metal Frame
- 4 x 80mm Mecanum Wheels
- 4 x 12V Motors with Encoder

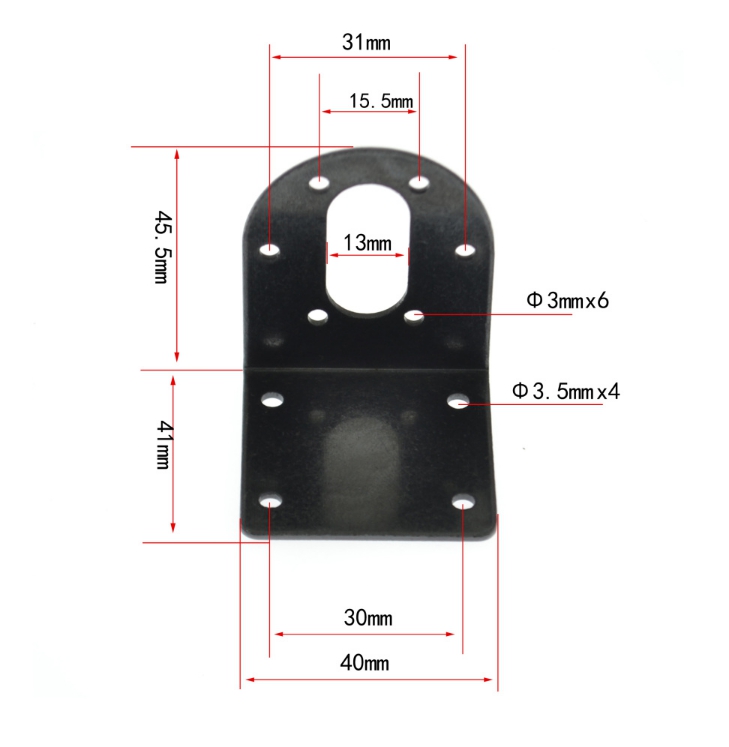

- 4 x Motor Brackets
- 4 x Motor Wires
- 1 x Set of Screws

Note:
- Optional Colors of Metal Plate: Silver, Black. Please choose the color you want when purchasing. Thank you!
- It is unfinished and assembling is needed.
