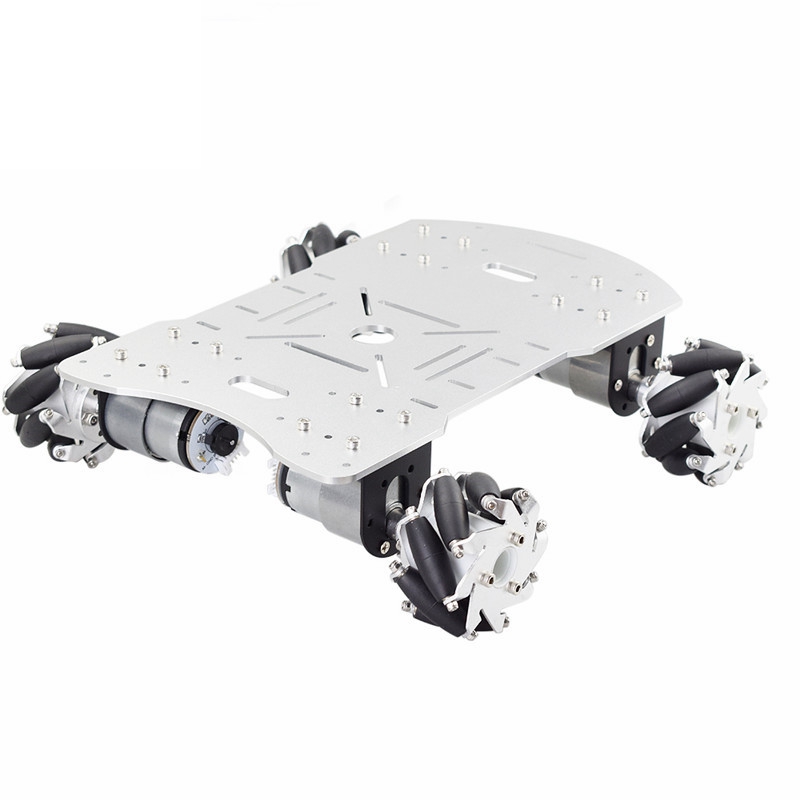

4WD Mecanum Robot Car Smart Car Chassis Kit Load Capacity 10-15KG w/ 60mm Omni Wheels Unfinished

4WD Mecanum Robot Car Smart Car Chassis Kit Load Capacity 10-15KG w/ 60mm Omni Wheels Unfinished

Features:
- 4pcs 60mm Mecanum wheels
- Aluminum bottom plate with elegant design
- Sturdy chassis with load capacity of about 10kg
- With hall sensor, 4pcs 12V motors performance stably
- Easy assembling of the unfinished chassis kit
- Unbeatable price

Chassis Parameters:

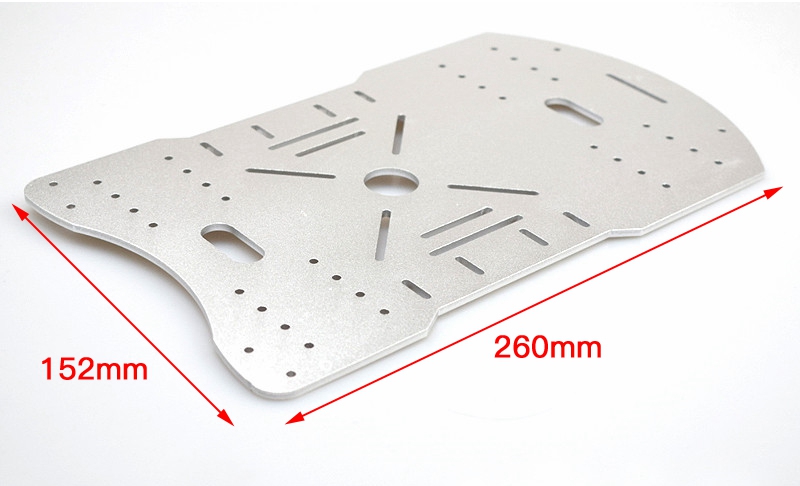

- Chassis Size: 260 x 230 x 65mm
- Plate Thickness: 3mm
- Treatment: Sandblasting Oxidation Treatment

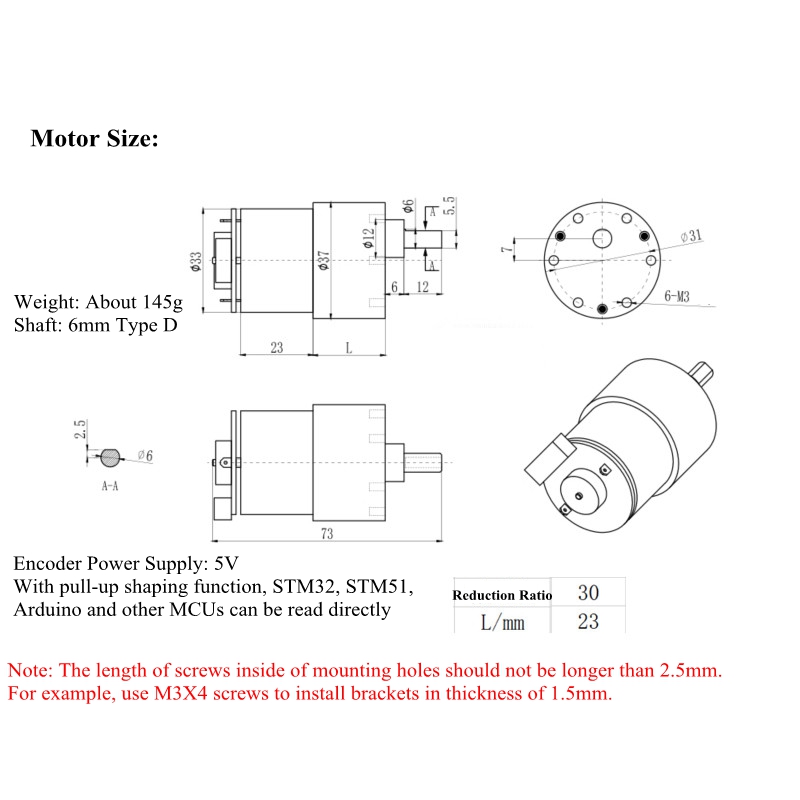

- Motor: 12V 330rpm Motors with Hall Encoder
- Load Capacity: About 10-15kg
- Chassis Weight: 1.5kg

Motor Parameters:
- Speed: 1.2m/s
- Turning Radius: 0m
- Motor Power: 7W
- Motor Rated Voltage: 12V
- Reduction Ratio: 1:30
- Encoder: The wheel turns one turn and outputs 390 pulses (the tire can resolve the rotation of 0.23°)

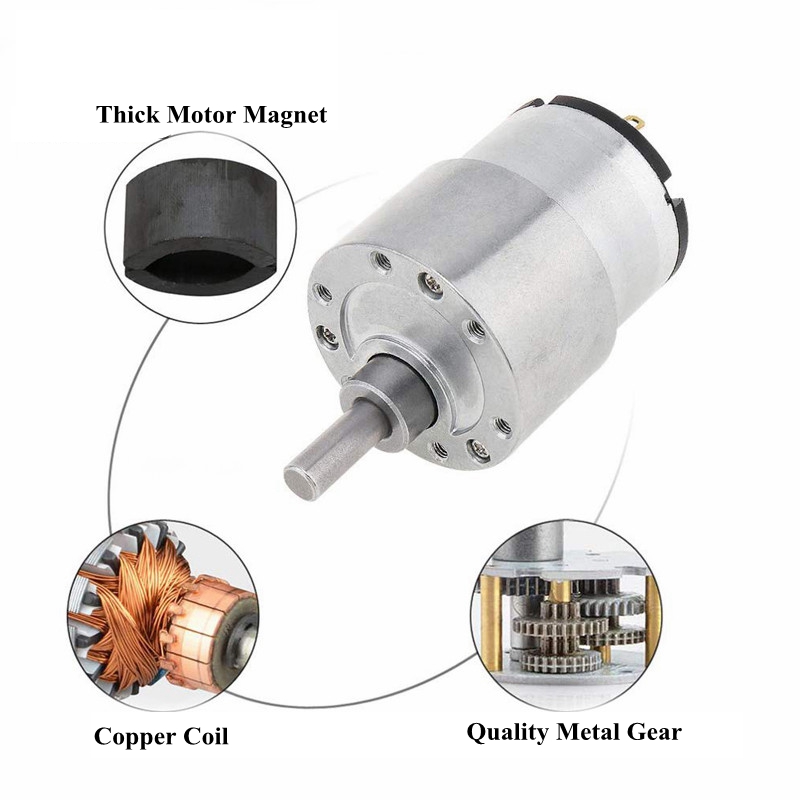

DC Brush Gear Motor:
- No-Load Current: 120mA
- Rated Torque: 3.5kg.CM
- No-Load Speed: 330rpm
- Rated Speed: 280rpm
- Rated Current: 1A
- Max. Torque: 5KG.CM
- Stall Current: 2.3A

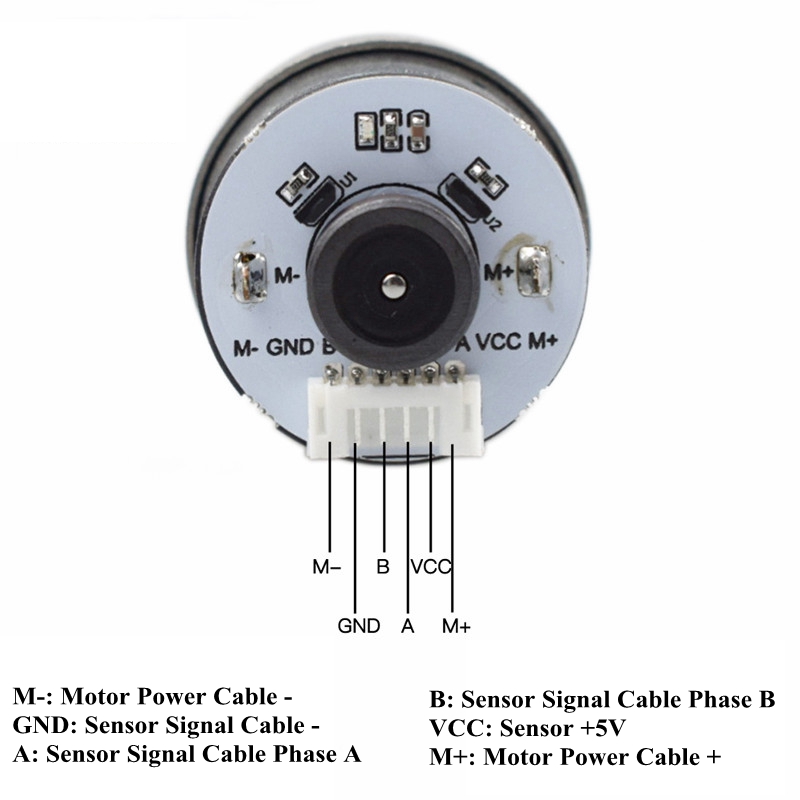

Encoder Parameters:
- Type: AB Phase Incremental Sensor
- Line Speed: 360
- Power Supply: 5V
- Interface Type: PH2.0

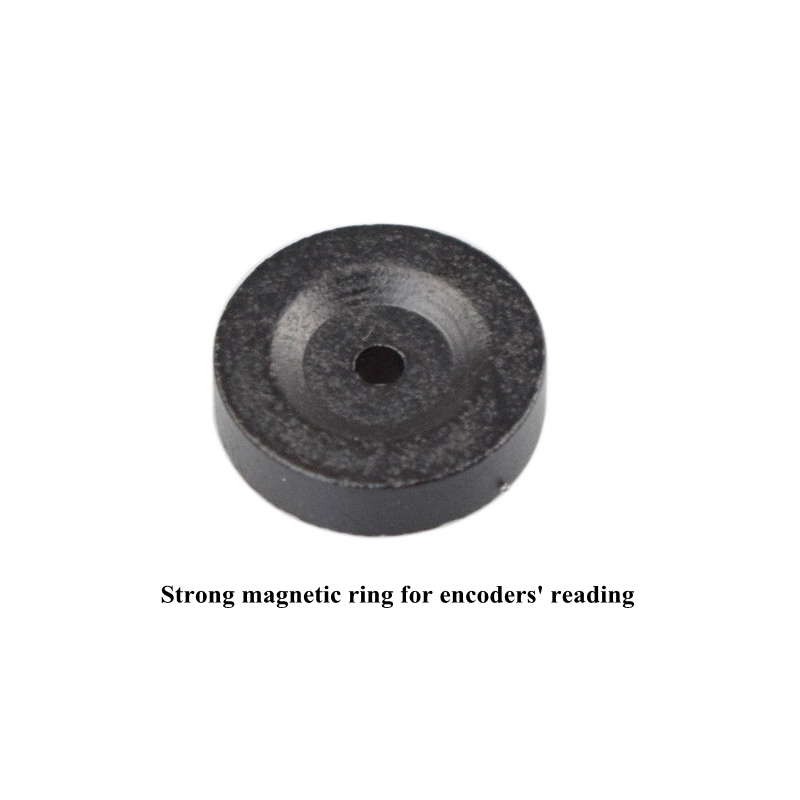

- Magnetic Ring: 11 Lines and 22 Levels
- Function: Adjusting Speed

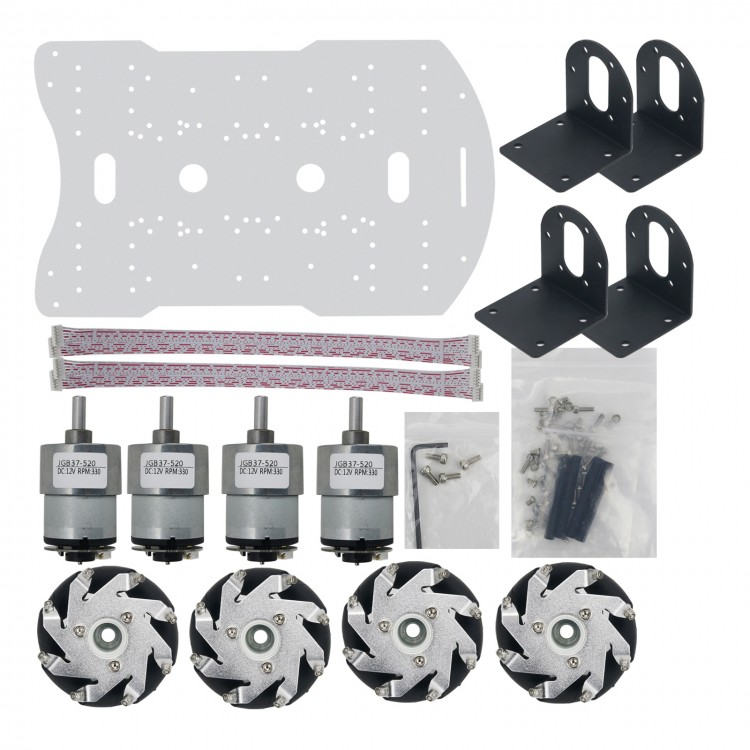

Package Included:
- 1 x Metal Plate
- 4 x 60mm Mecanum Wheels
- 4 x Motors with Encoder
- 4 x Motor Brackets
- 4 x Motor Wires
- 1 x Set of Screws
- 1 x Wrench

Note:
- Electronic control is not included in the package.
- It is unfinished and assembling is needed.
