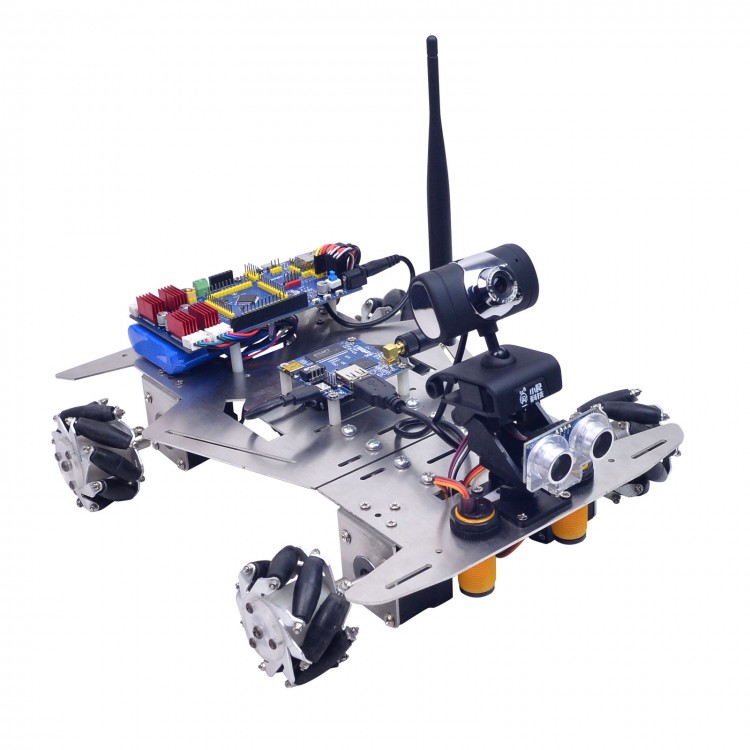

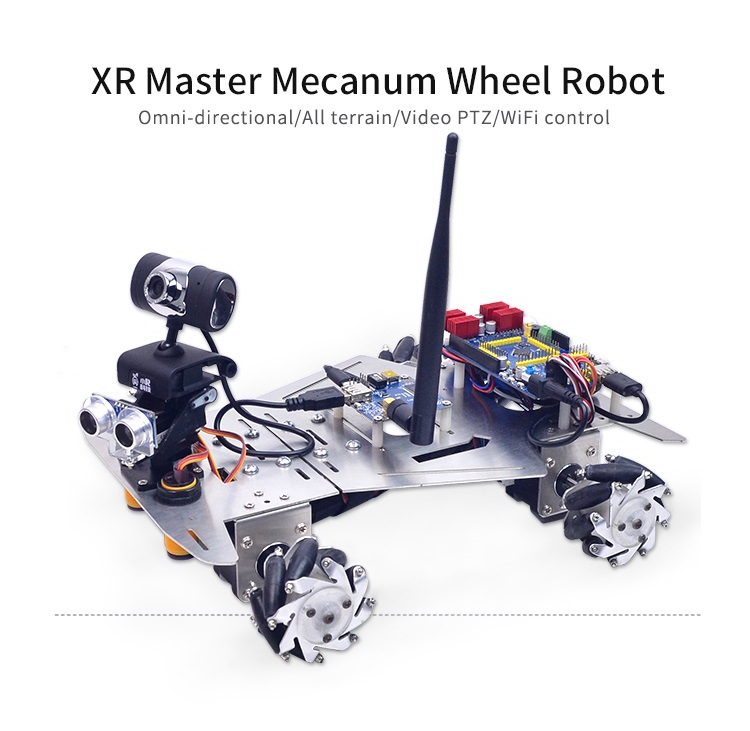

4WD WiFi Smart Robot Car Kit Camera 640*480 60mm Mecanum Wheels Unfinished WiFi + Bluetooth Version

4WD WiFi Smart Robot Car Kit Camera 640*480 60mm Mecanum Wheels Unfinished WiFi + Bluetooth Version

Features:
- Real-Time Video Transmission: 640*480 HD camera is for real-time images. You can adjust it focus manually. And its 2-DOF video PTZ can rotate up to 180°from left to right and up and down.

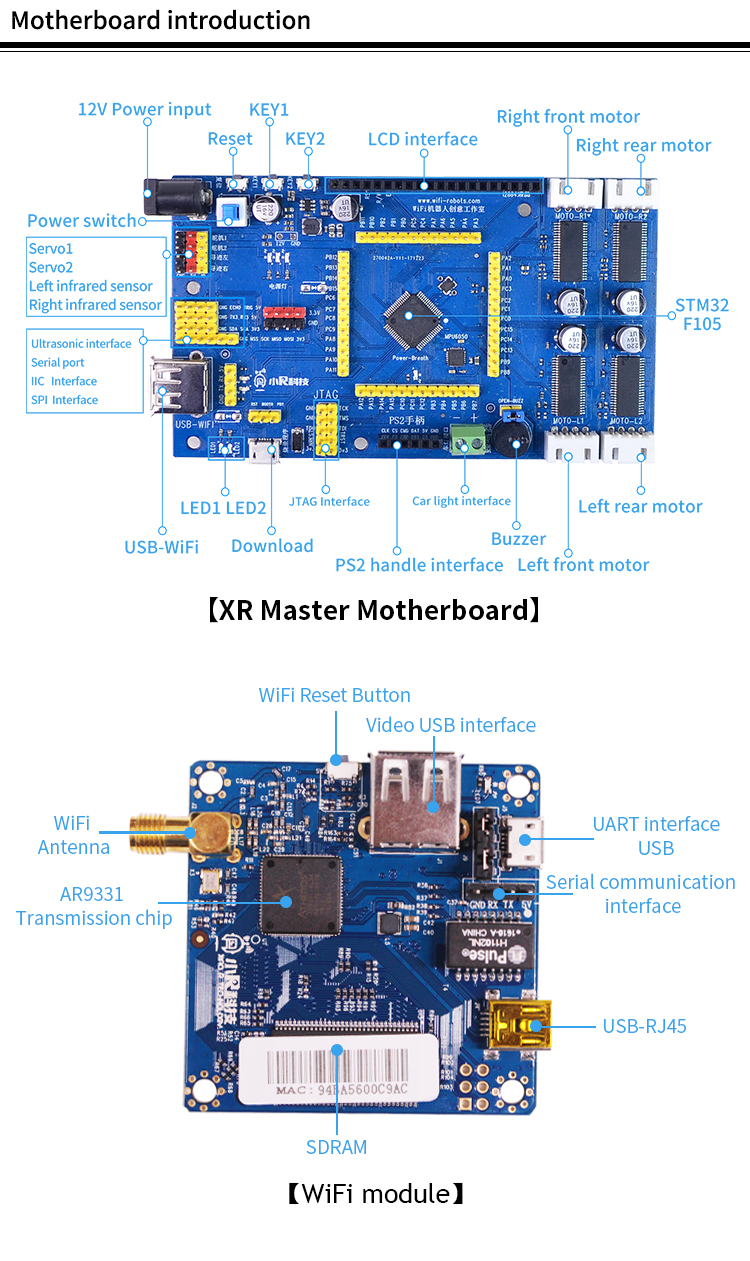

- WiFi & Bluetooth Module: XRbot-LinkV4.0 WiFi module is based on theI 32-bit STM F 105 chip development control board.

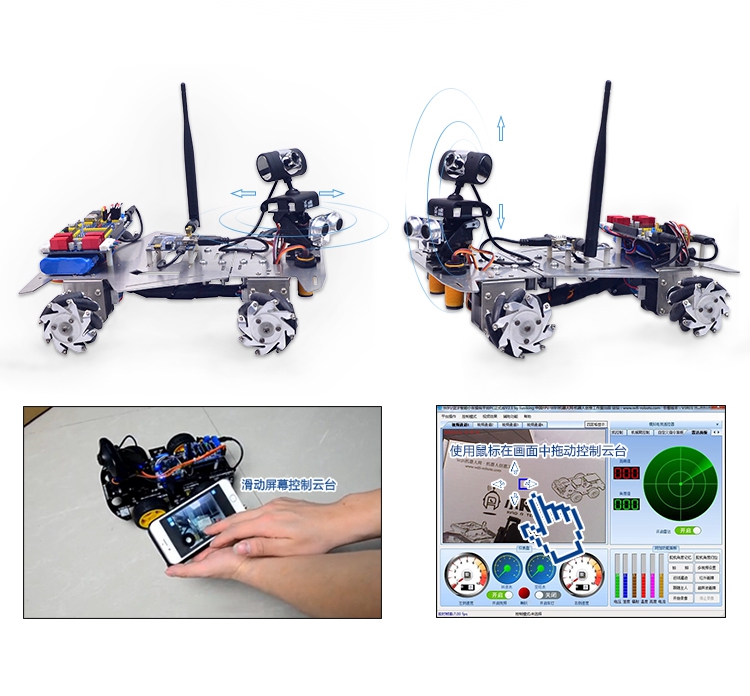

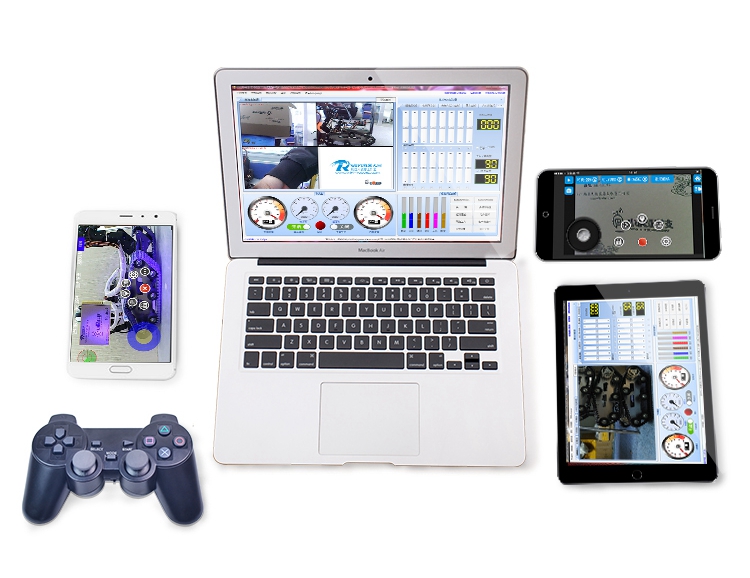

- Multiple Control Modes: You can control the RC car through your smartphone, PC, tablet computer, PS2 joystick, or WEB browser. Its APP supports for Android and iOS systems.
- All-Terrain System: With this coaxial pendulum terrain system, it can make the four wheels of the car effectively contacted the ground at any time to adapt to the uneven ground, so that the movement of the car is smoother.

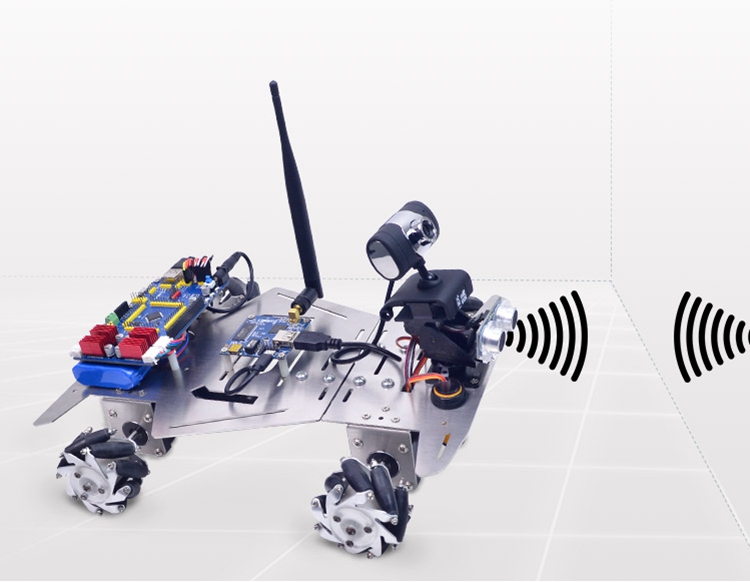

- Ultrasonic Obstacle Avoidance: The XR MASTER adopts a HC-SR04 radar ultrasonic ranging module. And you can use our mobile APP or PC software to make it work. When the robot detects an obstacle in front of it, it will stop immediately.
- Line Tracking: With an infrared sensor, it can track black lines and follow it. Just use our mobile APP or PC software to start.
- High-Gain Antenna: Its external 5dbi antenna is for stable connection, fast signal transmission and further transmission distance. It supports IEEE 802.1N protocol and its maximum speed is up to 150Mbps.
- Premium Mateirals: Our robot car kit uses 4WD motor to drive, 60mm aluminum alloy mecanum wheels, 42 stepping motors and coaxial pendulum suspension system for all terrain.
- Long Service Life: Its stainless steel body with laser process adds extra durability to the robot car.

Basic Parameters:
- Microprocessor: STM32F105
- Control Algorithm: Series PID Control Algorithm
- Input: IR sensor/Ultrasonic Sensor/Button/Camera/PS2 Handle
- Chassis Craft/Material: Laser cutting/304 Stainless Steel
- Programming Language: C Language
- Servo: XR SG90
- Output: Stepping Motor/Buzzer/Car Light/PTZ with Servo
- Power Supply Scheme: AMS1117CD-3.3V
- Motor: 42 Stepping Motor
- Distance Detection Scheme: Ultrasonic Sensor
- Safety Protection: Three-level Over-voltage Protection
- Motor Drive Scheme: LV8731
- Chassis Structure Scheme: All Terrain System
- Remote Control: Support for iOS/Android APP, PC, PS2 Joystick, WEB Browser
- Assembled Size: 380*255*172mm
- Weight: 2.49Kg

Package Included:
- 1 x Chassis
- 2 x Servos
- 1 x Set of Pan & Tilt Kit
- 1 x Main Board
- 1 x Camera
- 1 x WiFi & Bluetooth Module + Antenna
- 1 x Infrared Sensor
- 4 x Motor Cables
- 4 x Extended Cables
- 1 x 12864 LCD Screen
- 1 x Ultrasonic Sensor
- 2 x Dupont Cables
- 1 x PS2 Joystick
- 1 x Receiver & Adapter Board for PS2
- 1 x Bag of Hardware Tools
- 1 x Charger

Note:
- Assembling is needed.
- Battery is not included in this package. Thank you!
