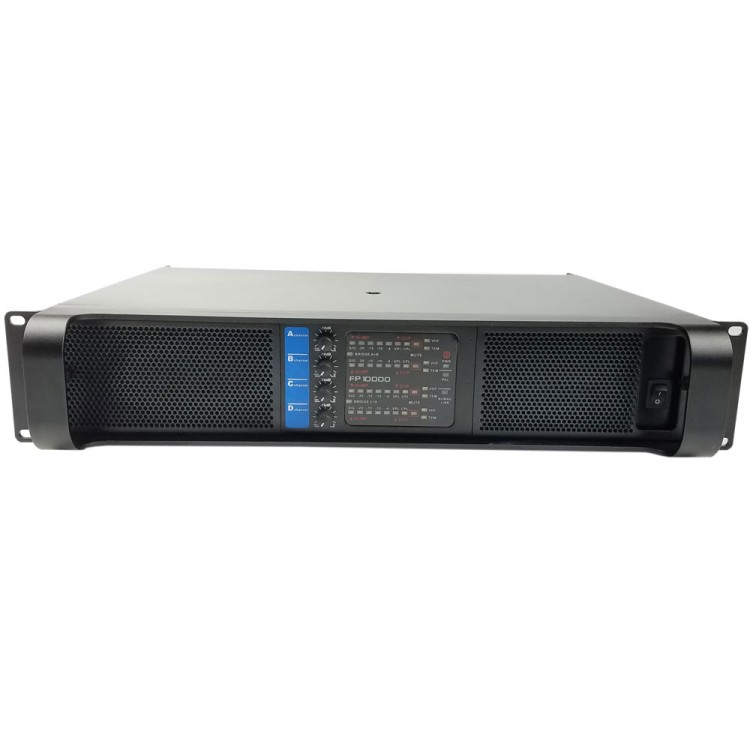

4x2500W Four-Channel Power Amplifier Stage Amplifier Power Amp for Professional DJ Equipment
Description:
It is a high performance switching power amplifier, and each channel is designed with independent adjustable peak output voltage. It is built with intelligent protection circuit, using advanced technology. It can be used in places such as large-scale performances, venues and business senior entertainment clubs.
Furthermore, all the electronic component are from big brand such as connector for Neutrik and transistor for Sanken.
Specifications:
* 8Ω stereo power: 4x1300W
* 4Ω stereo power: 4x2100W
* 2Ω stereo power: 4x2500W
* 8Ω bridge power: 2x4200W
* 4Ω bridge power: 2x5000W
* Frequency response (+0/-0.3dB, 1W/8Ω): 20Hz-34KHz
* Total harmonic distortion 20 Hz-20 kHz 1W: <0.1%
* Signal to noise ratio: >112dB
* Channel separation (crosstalk) 1 kHz: >70dB
* Input connector: XLR female
* Output connector: Speakon socket
* Input impedance: 20KΩ balanced
* Level adjustment: front panel potentiometer, from negative infinity to 0dB
* Cooling method: stepless speed regulation fan, air flow from front to back
* Power amplifier protection methods: short circuit, open circuit, DC voltage, overheating, radio frequency, ultra-low frequency protection
* Chassis size: 396 x 483 x 88mm/15.6 x 19 x 3.5" (LxWxH)
* Net weight: 12kg/26.5lb
Package Included:
* 1 x Power Amp
* 1 x Power Cable
* 1 x User Manual
