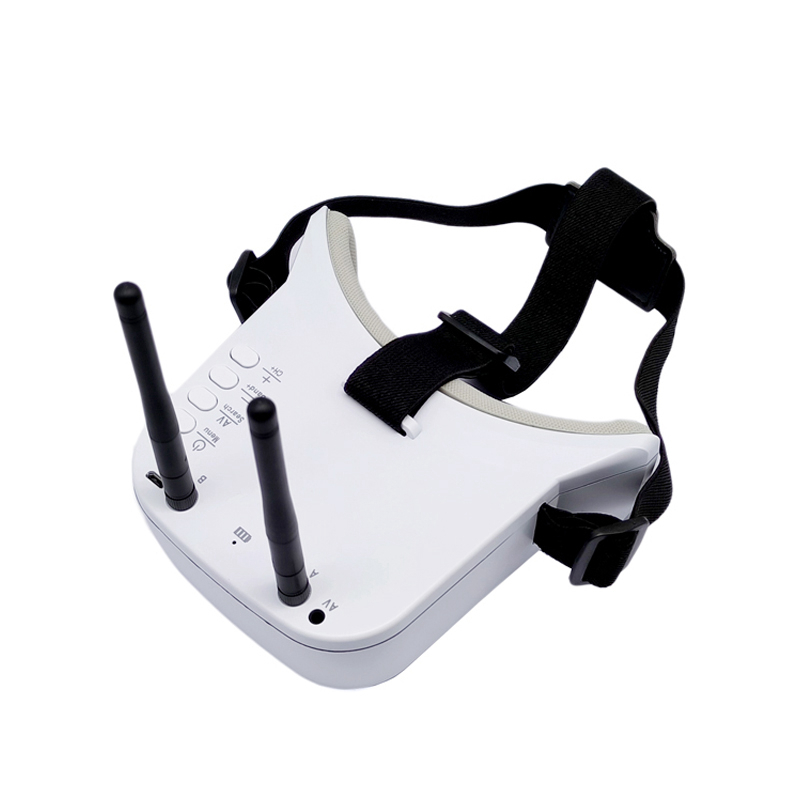

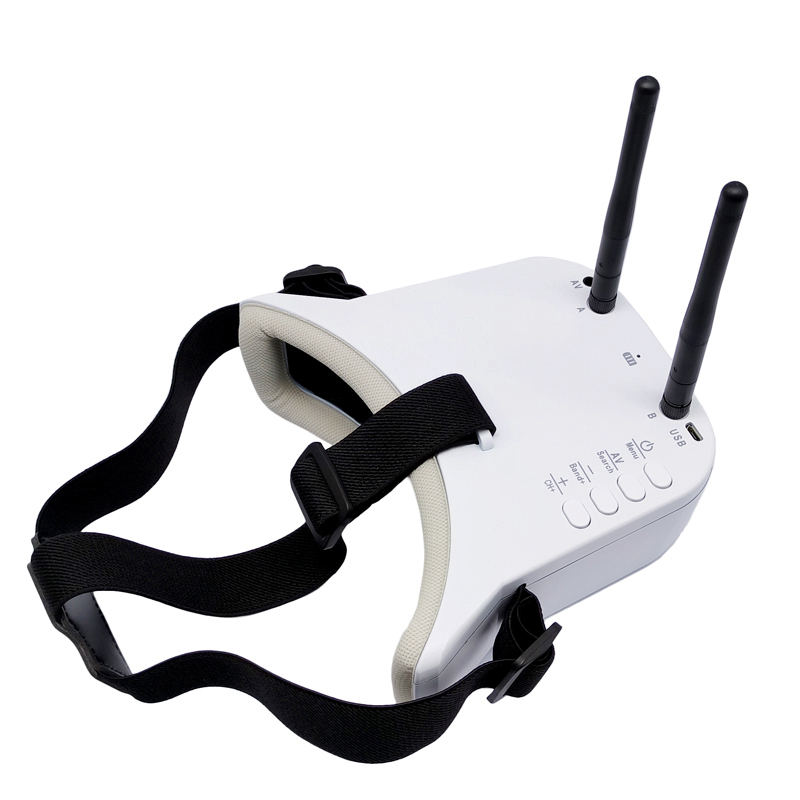

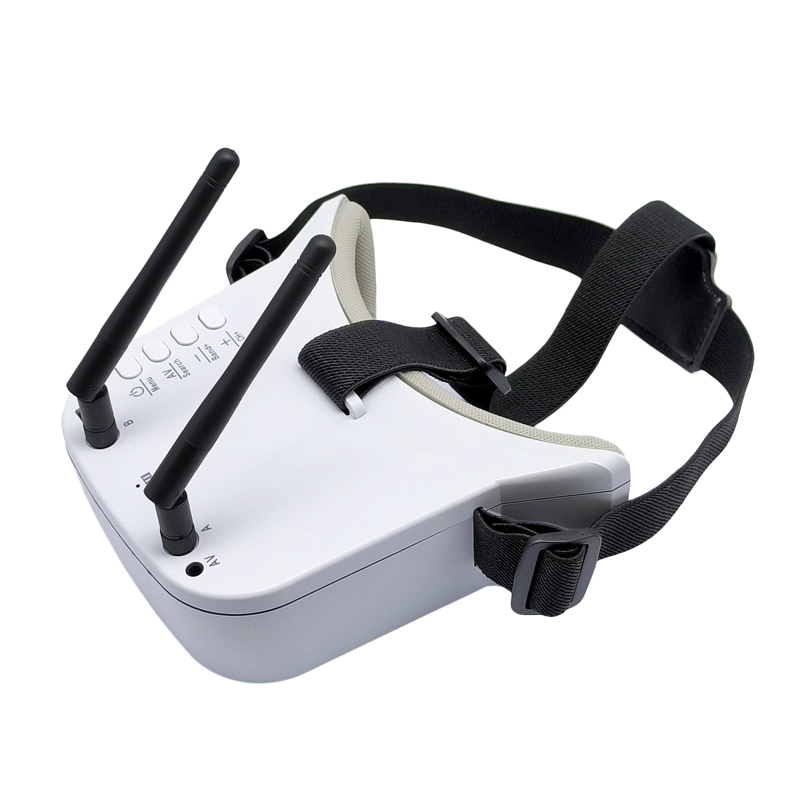

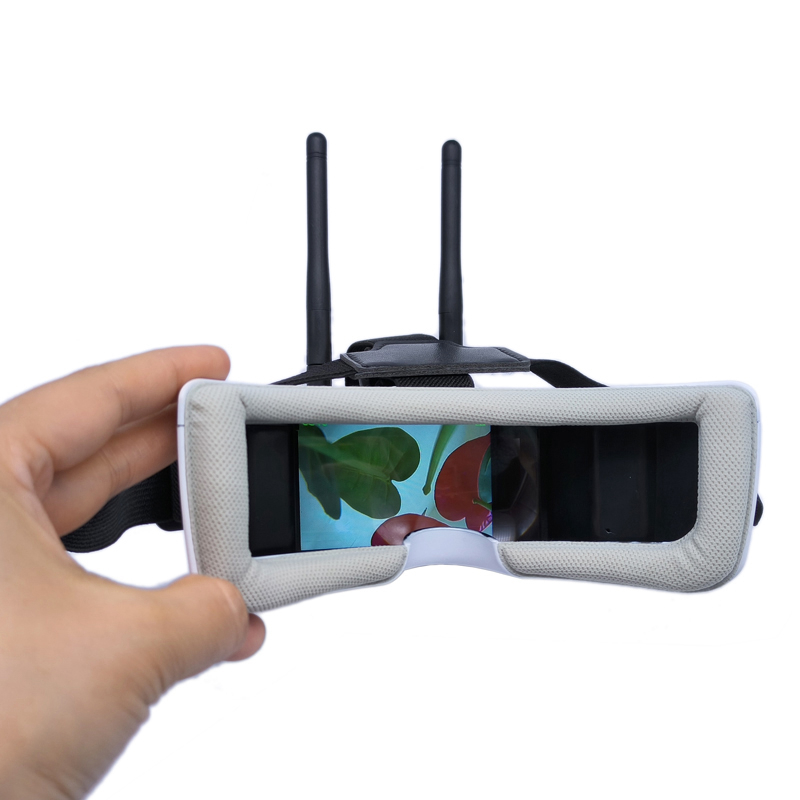

5.8G 48CH 3 Inch FPV Goggles Drone Goggles with Built-In Dual Antenna Battery for FPV Racing Drones

5.8G 48CH 3 Inch FPV Goggles Drone Goggles with Built-In Dual Antenna Battery for FPV Racing Drones

Features:
- Small in size and light in weight
- Dual antenna reception makes the signal more stable
- One-click automatic frequency search. Fast and accurate
- 3" 480x272 LCD screen of high brightness
- Built-in high-sensitivity 5.8GHz 48CH receiver, especially RaceBand.
- Built-in 3.7V/1800mAh polymer lithium battery
- Universal USB charging interface (5V/1.5A)
- Video latency is less than 20MS
- Supports external video signal input
- Supporting AV signal output, it can be connected to external DVR

Specifications:
- Item name: FPV goggles
- Resolution: 480x272
- Screen brightness: 230cd/m²
- TV system: NTSC/PAL switchable (automatic)
- Screen size: 3 inches
- Battery: 3.7V/1800mAh polymer lithium battery
- Working time: 3.5 hours
- Charging time: 3 hours
- Maximum charging current of the battery: 800mA
- Product weight: 236.4g/0.5lb

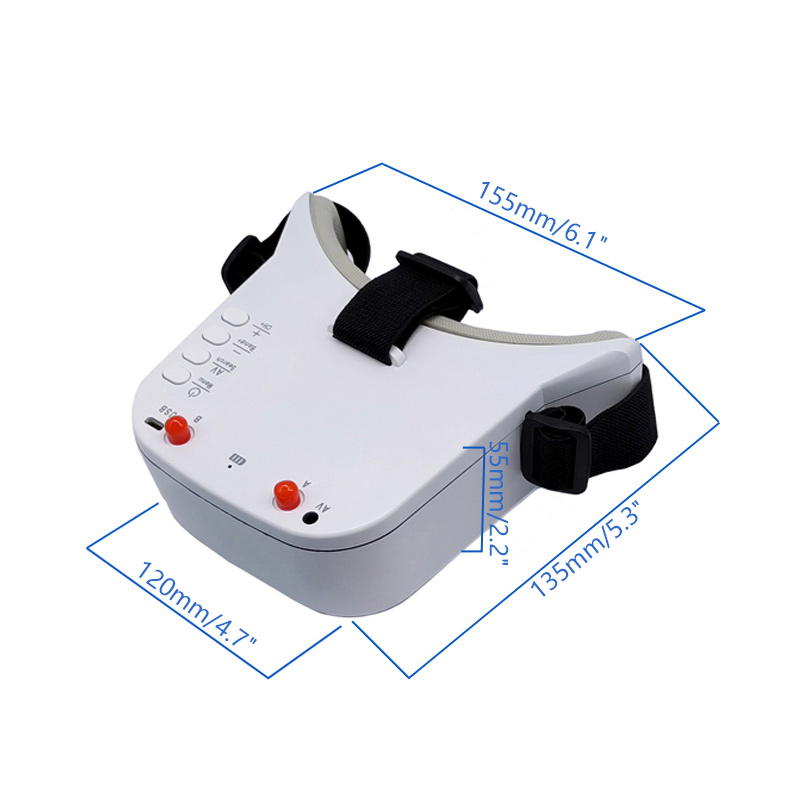

- Product Dimensions (LxWxH): 15.5 x 13.5 x 5.5cm/6.1 x 5.3 x 2.2"

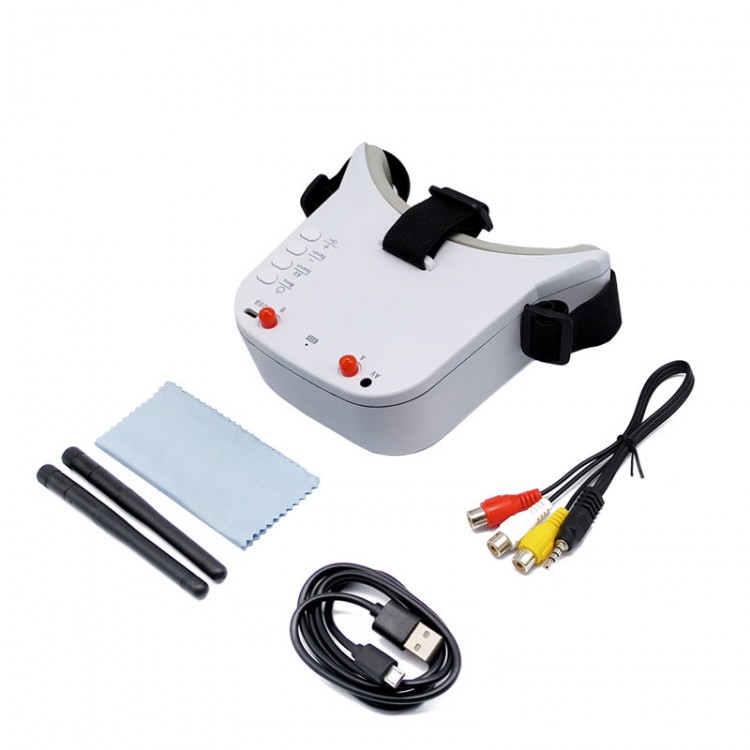

Package Included:
- 1 x FPV Goggles
- 2 x Antennas

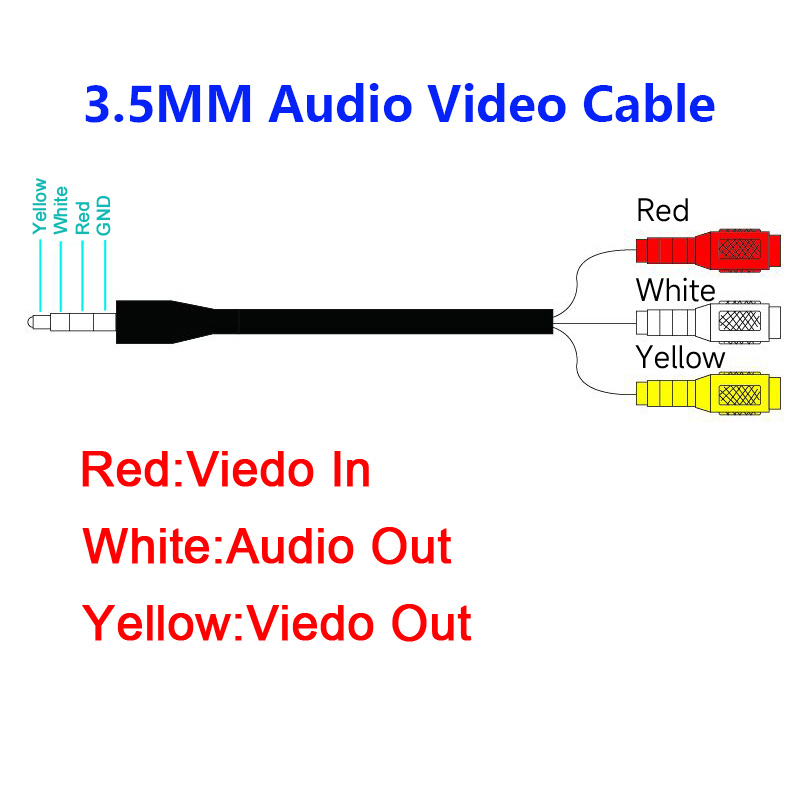

- 1 x Audio Video Cable
- 1 x Micro USB Charging Cable
- 1 x Cleaning Cloth for Goggles

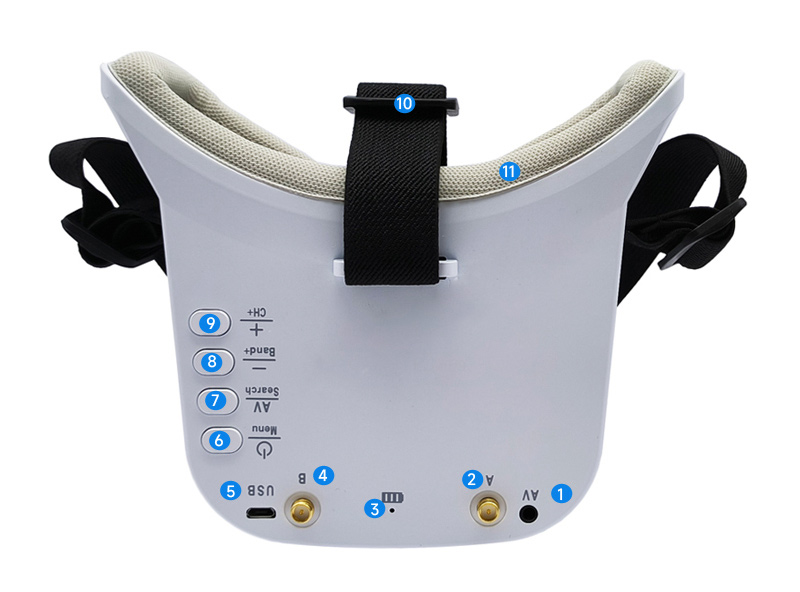

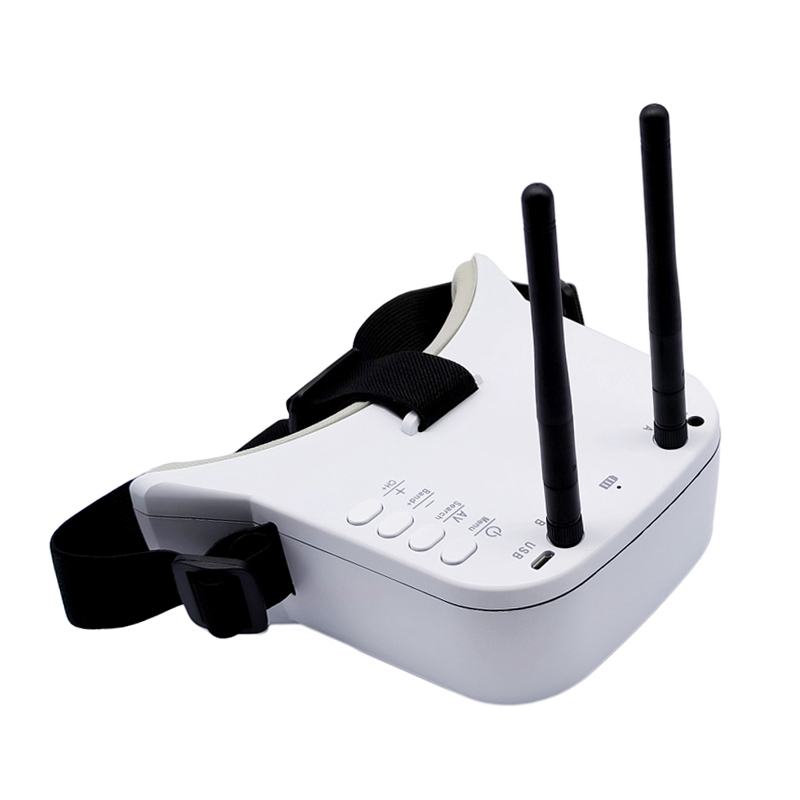

1. AV interface: It can output video signals in RF receiving mode; it can input video signals in AV mode.
2. Antenna A port (SMA male).
3. Charging indicator: The light turns on for charging; it turns off after charging.
4. Antenna B port (SMA male).
5. USB charging port: It supports 5V/1.5A.
6. Switch/Menu button:
* Switch button: ON/OFF. Short press to turn it on. And long press to turn it off.
* Menu button: After it turns on, press this button to enter the menu and set the screen parameters. In the menu interface, short press the button to select brightness, contrast and other parameters. Short press of buttons 8 and 9 to adjust parameters.
7. AV/Search:
* AV: Press and hold this button to switch between FPV video mode (default) and AV external video input mode. The external video input signal must be CVBS, NTSC or PAL.
* Search: Short press to search automatically (automatically select the strongest channel). Before searching, make sure that the antenna is installed at the antenna port. If there is no signal in the environment, it will stay on the A1 channel.
8. - /Band+:
* - (menu parameter - button): Short press the Menu button to enter the menu. After the menu interface is displayed, short press this button to adjust the parameters of the corresponding category to smaller ones.

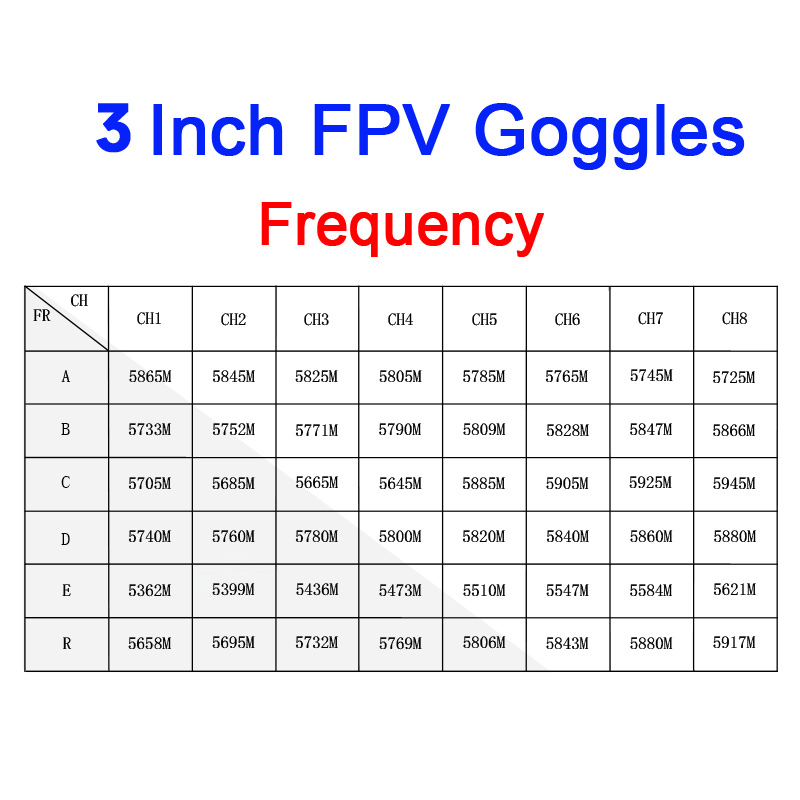

* Band+ (working channel group switching): Short press to cycle through channel group A-B-C-D-E-R.
9. +/CH+:
* + (menu parameter + button): Short press the Menu button to enter the menu. After the menu interface is displayed, short press this button to adjust the parameters of the corresponding category to larger ones.
* CH+ (working channel number switching): Short press to cycle through the adjustment of channel number 1-2-3-4-5-6-7-8.
10. Head band.
11. Sponge.
