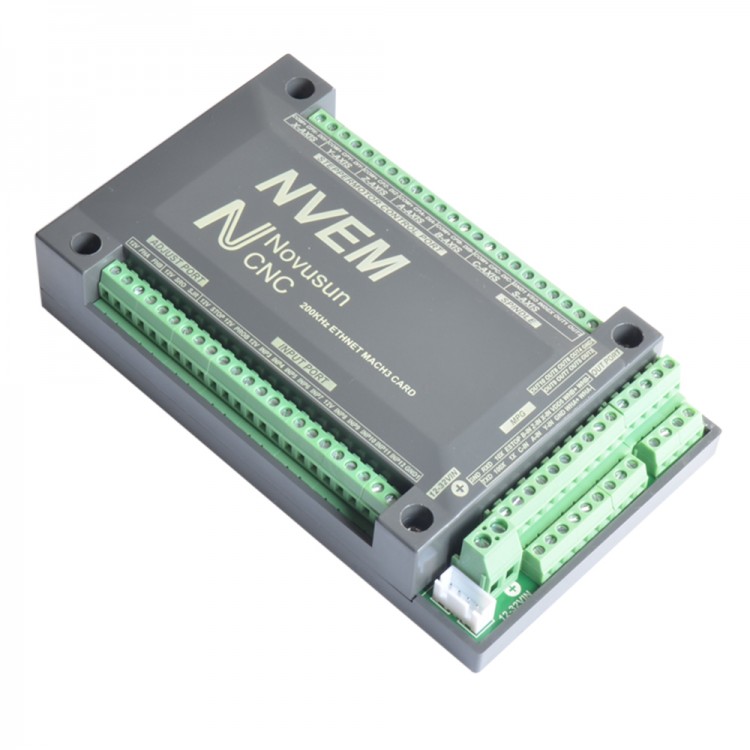

5 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$125.91
  • Price in reward points: 1259 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $123.39 $120.87 $117.10 $112.06 Contact US
Quantity:
Buy it now Add cart

You might like

4 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

4 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

$102.51

(0)
3 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

3 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

$79.51

(0)
6 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

6 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

$152.91

(0)
3-Axis Mach3 Motion Controller 2MHz Ethernet Breakout Board MK3-V + 4-Axis MPG Handwheel Pendant

3-Axis Mach3 Motion Controller 2MHz Ethernet Breakout Board MK3-V + 4-Axis MPG Handwheel Pendant

$240.63

(0)
New Quality CNC 200KHZ 6 Axis USB MACH3 Breakout Interface Board CNC Controller Board for Router Milling Machine

New Quality CNC 200KHZ 6 Axis USB MACH3 Breakout Interface Board CNC Controller Board for Router Milling Machine

$66.35

(0)
MK6-ET Mach3 6-Axis CNC Controller Board Ethernet Motion Card CNC Breakout Board of High Quality

MK6-ET Mach3 6-Axis CNC Controller Board Ethernet Motion Card CNC Breakout Board of High Quality

$220.89

(0)
MACH3 MK3Z-ET 3-Axis CNC Motion Controller Card Ethernet Interface CNC Control Board with 30 Inputs and 12 Outputs

MACH3 MK3Z-ET 3-Axis CNC Motion Controller Card Ethernet Interface CNC Control Board with 30 Inputs and 12 Outputs

$212.06

(0)
4 Axis CNC Kit USB MACH3 4Axis Breakout Board Nema23 Stepper Motors DM542 Stepper Motor Drivers

4 Axis CNC Kit USB MACH3 4Axis Breakout Board Nema23 Stepper Motors DM542 Stepper Motor Drivers

$295.55

(0)

5 Axis 200Khz CNC Ethernet Controller Card Breakout Interface Mach3 Board for PWM Spindle Motor CNC

Feature:
- Can control 5 stepper motor
- with 12 channel programmable input port,can set it for emergency function
- with 10 channel programmable output port,can set for water colling devices
- with 1 channel standard handwheel pendant MPG port
- Spindle PWM output control
- Support MACH3 software
- Ethernet port,support Mach3 Software
- DCDC electrical isolation
- Optocoupler isolation
- Max 200khz stepper motor pulse output,suitable for most CNC milling machine system
- Support extend decoder to adjust FRO,SRO,SJR parameters

NOVUSUN  Instructions: Click here
DDL file download: Click here

Applications:
- for processing various patterns such as embossing plate, sole mould, zipper mould, pattern die and stamping die, instrument mold, glass mold etc..
- for the advertising industry such as: our brand, signs, architectural models, badges, nameplate, panels, logo, numbers, signs, craft decoration, furniture decoration etc..
- for the portrait, landscape, calligraphy lettering, seals and other graphic art sculpture, calligraphy, Basso relievo, etc..
- With the CNC controller, suitable for all kinds of small and medium-sized automation equipment and instruments.
