50KHz-3GHz Vector Network Analyzer Antenna Analyzer w/ Shell S-A-A-2 Shortwave HF VHF UHF NanoVNA V2
Description:
This second-generation NanoVNA vector network analyzer is based on S-A-A-2 design for OwOComm, and its performance is greatly upgraded.
Specifications:
- Measuring frequency range: 50KHz-3GHz
- System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (to 3GHz)
- S11 noise floor (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
- Scan rate: 100 points / second
- Number of scanning points (on device screen): adjustable, maximum 201 points
- Number of calibration points (maximum number of USB scanning points): 1024 points
- Power supply: USB, 400mA
- RF port: SMA (not RP-SMA!)
- USB interface: Micro USB
- Display screen: 2.8-inch TFT (320 x 240)
- Battery: Battery is not included. You can use 1000-1800mAh 3.6V/3.7V lithium battery, 6 * 40 * 60 mm, XH 2.54 connector
- Port 2 return loss: > = 13dB (to 3GHz), 20dB (to 1.5GHz)
- Display tracking: 4, mark: 4, save settings: 5
- Computer software compatible: For Linux, Windows (7+)
User Manual:
https://pan.baidu.com/s/1EAF8CnHzW_AiGJiQVqvjWA Password: z8mi
Software Download:
https://pan.baidu.com/s/1TdoDTAESUUU6yvAWM5UFKA Password: kss9

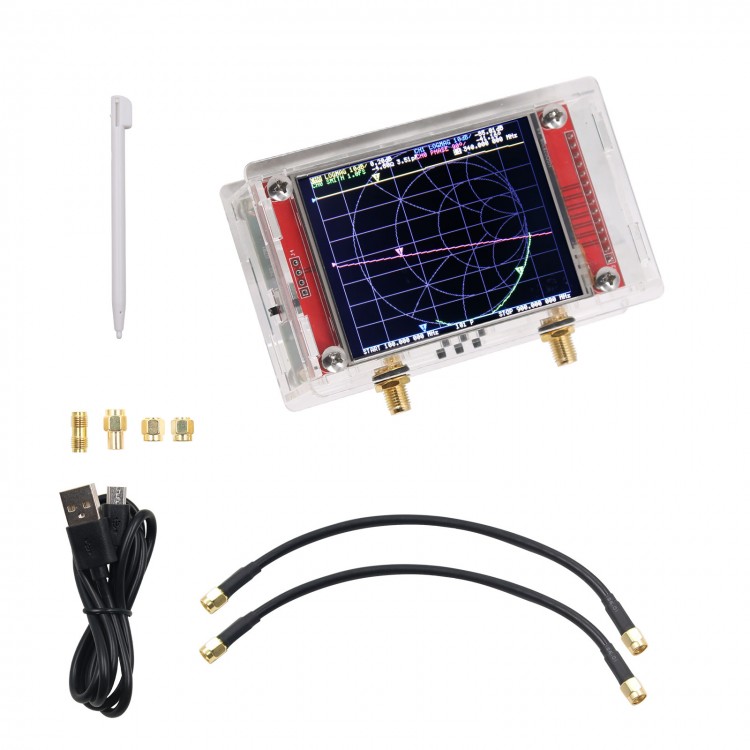

Package Included:
- 1 x Set of Vector Network Analyzer with Shell
