50K-3GHz NanoVNA Vector Network Analyzer Antenna Analyzer For Shortwave HF VHF UHF
Description:
This vector network analyzer is based on the license agreement for LGPL, based on the design for OwOComm. This portable analyzer is for measuring higher frequency.
It uses a user interface similar to NanoVNA, but uses a different technical architecture. The initial calibration data is not loaded at startup, and the calibration data will not be automatically inserted after users change frequency. Each time the startup and frequency change, calibration data must be recalibrated or calibration data must be recalled. Please read the instruction manual carefully before use to avoid damage to the device.
VNA-QT Software Download: https://github.com/nanovna/NanoVNA-QT/releases
Nanovna-saver: https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2
User Guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf
Specifications:
- Frequency range: 50kHz-3GHz
- System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
- S11 background noise (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
- Scanning speed: 100 points/second
- Display: 2.8 inches, 320 x 240
- USB interface: Micro USB
- Power supply: USB, maximum charging current 1A
- Maximum scan point (on device screen): 201
- Maximum scan point (USB): 1024
- Port 2 return loss (1.5GHz): 20dB typ
- Port 2 return loss (3GHz): 13dB MIN
- VNA-QT software compatible system: For Linux, Windows (7+), Mac OS planned

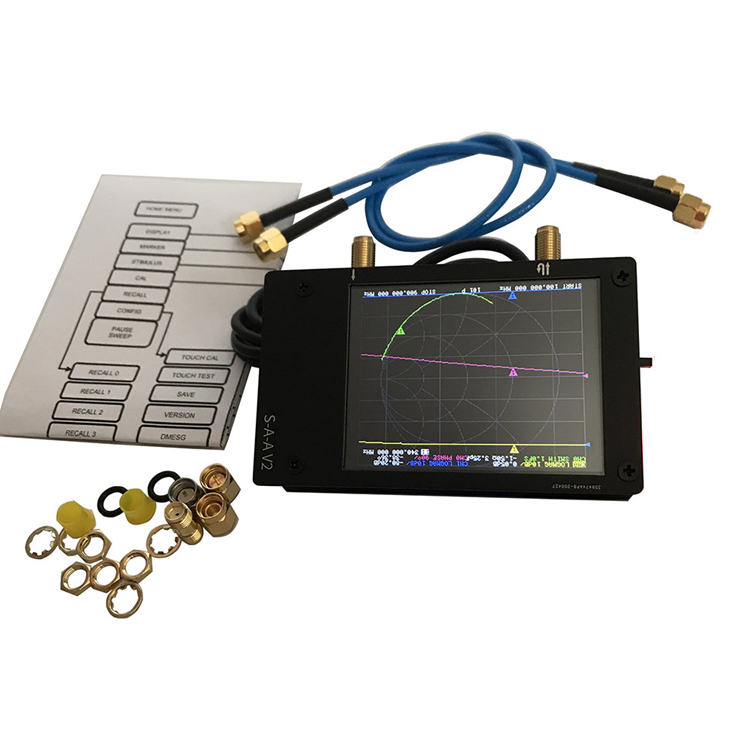

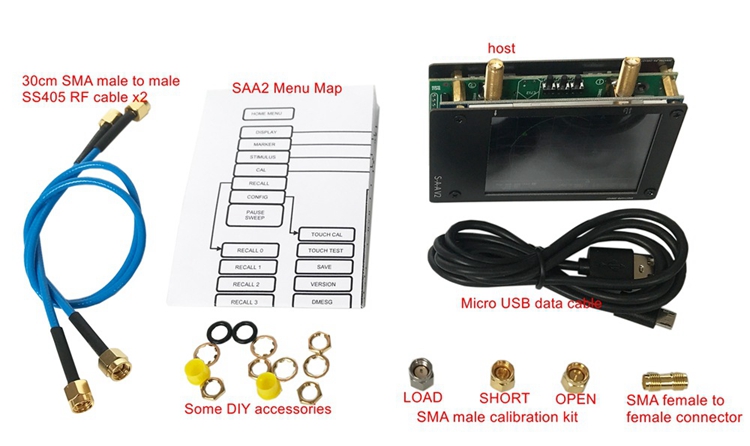

Package Included:
- 1 x Host
- 1 x USB Data Cable
- 2 x SS405 RF Cables 30cm SMA Male to Male
- 1 x SMA Simple Calibration Set OPEN
- 1 x SMA Simple Calibration Set SHORT
- 1 x SMA Simple Calibration Set LOAD
- 1 x SMA Female to Female Connector
- 1 x Set of DIY Accessories
- 1 x Menu Map
Test 2.4G Antenna:

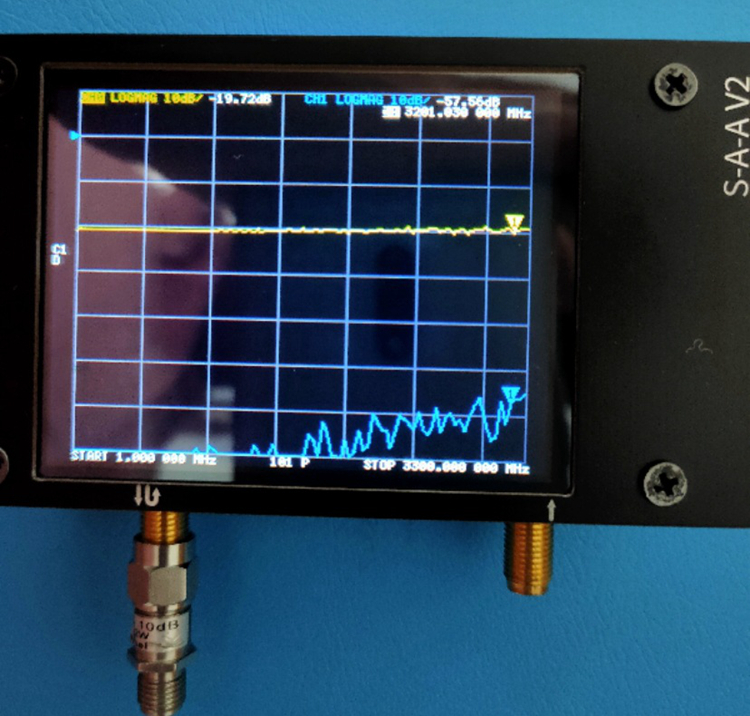

Test 10dB Attenuator Reflection up to 3.3GHz:

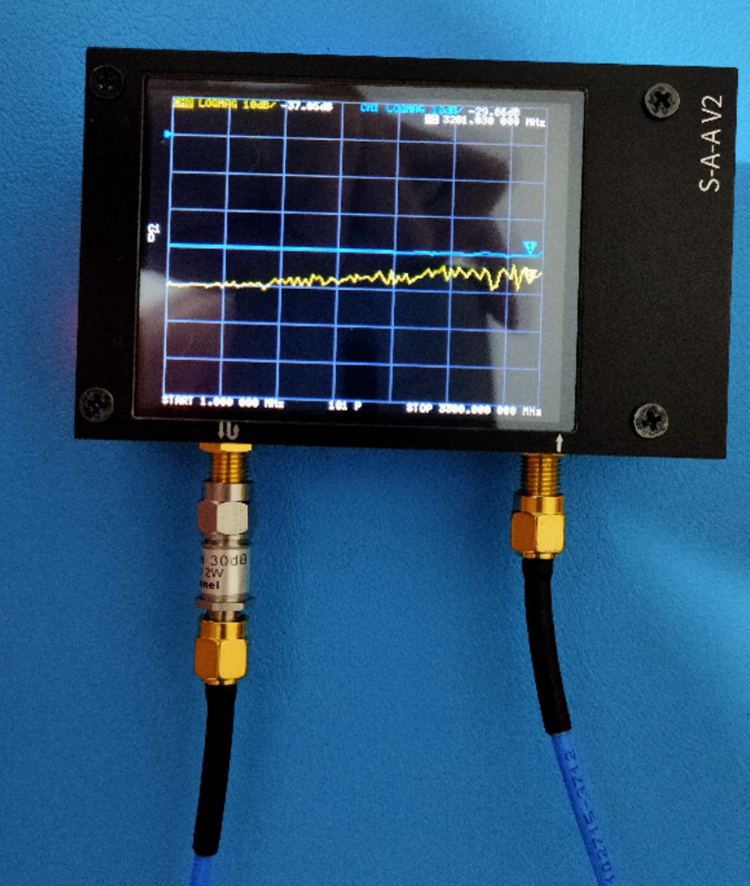

Test 30dB Attenuator up to 3.3GHz:

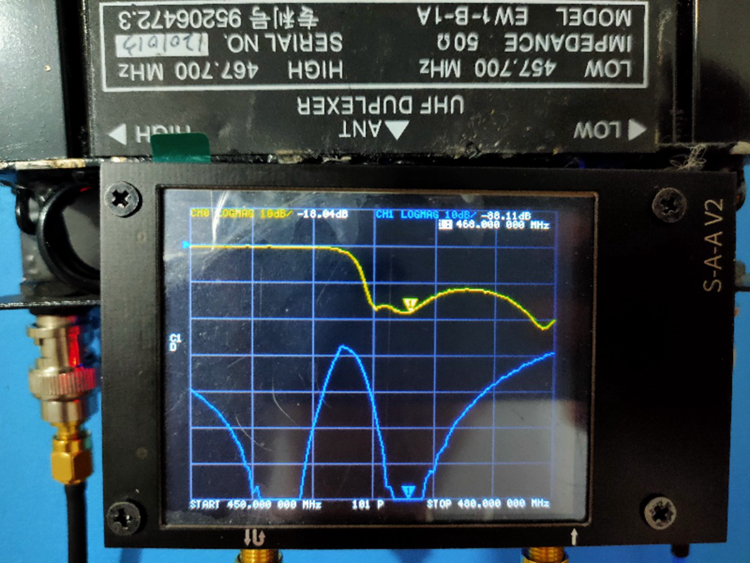

Test UHF Duplexer:

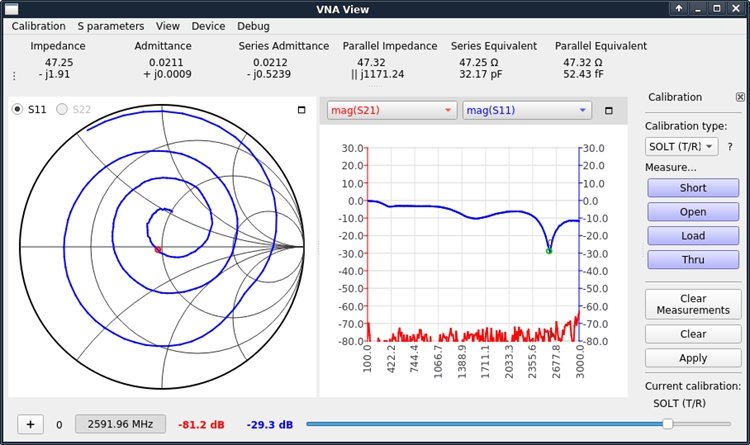

PC Software For Windows/Linux:

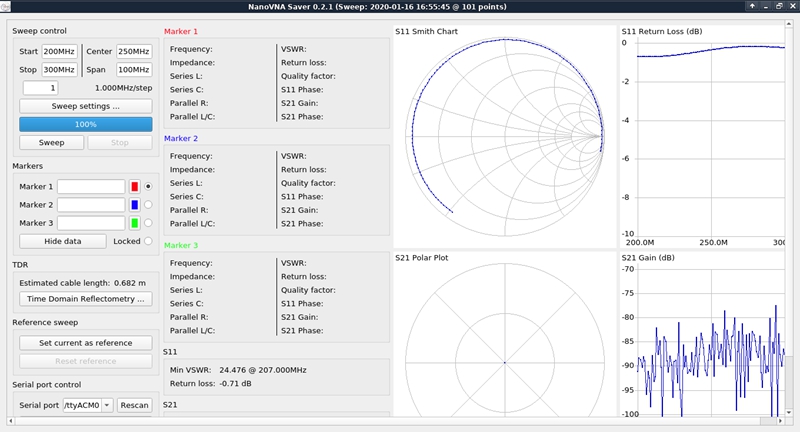

Supports NanoVNA-Saver Software For Linux: https://github.com/nanovna/nanovna-saver-v2-support
