NanoVNA V2 Plus4 Pro 4G Vector Network Analyzer VNA 50KHz-4GHz Antenna Analyzer High Dynamic Range
Newly Added Functions:
1. Adjustable bandwidth
2. It can measure narrow-band devices such as crystal oscillators
3. The maximum scan speed is faster than that of the old version. Its default parameter is 0.16 seconds per scan, while the speed of the old version is 0.25 seconds
Features:
- 4" TFT display
- 4GHz frequency range
- Scanning speed increased by 4 times (400 points/sec)
- Up to 90dB dynamic range (1GHz)
- Up to 80dB dynamic range (3GHz)
- 1024 scanning points (for NanoVNA-QT software)
Specifications:
- Measuring frequency range: 50KHz-4GHz
- System dynamic range: 70dB (to 3GHz, after calibration, no averaging)
- System dynamic range: 80dB (to 3GHz, after calibration, 5x average)
- System dynamic range: 90dB (to 1GHz, after calibration, 20x average)
- S11 noise level (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
- Scanning rate: 400 points/sec (f ≥140 MHz), 200 points/sec (f <140 MHz)
- Number of scanning points: adjustable, up to 1024 points (up to 201 points on its screen)
- Power supply: USB
- RF port: SMA (not RP-SMA)
- USB interface: USB Type-B
- Display screen: 4-inch TFT (480 x 320)
- Battery: Built-in 3200mAh lithium battery
- Port 2 return loss: ≥15dB (to 3GHz), 20dB (to 1.5GHz)
- Display tracking: 4; marking: 4; setting saved: 7
- Computer software compatibility: For Linux, Windows (above 7) and Mac OS

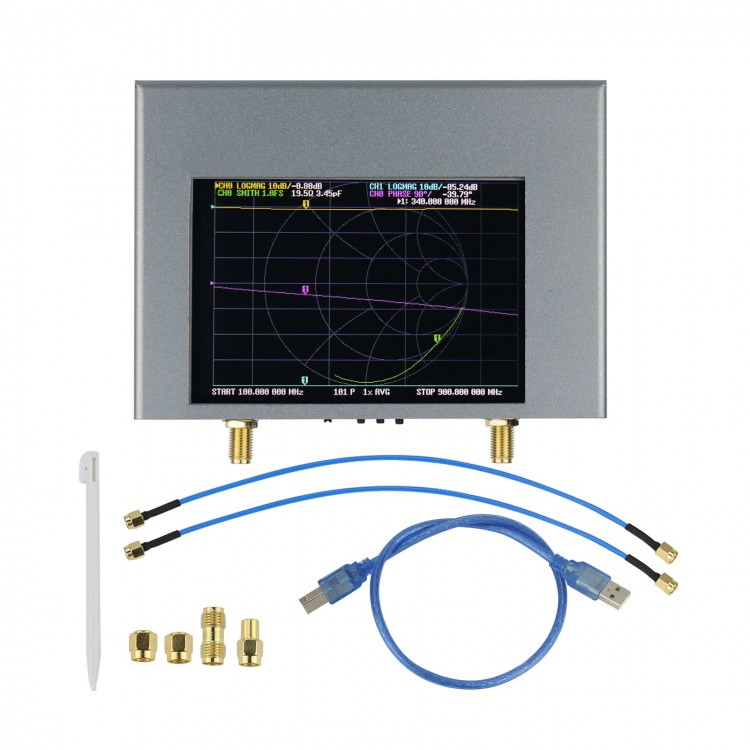

Package Included:
- 1 x VNA Main Unit
- 2 x 30cm/11.8" SS405 RF Cables
- 1 x Bag of SOLT Calibration Parts
- 1 x USB Cable
- 1 x Stylus
Attention:
- To measure amplifiers, it requires attenuators. The attenuation needs to be greater than or equal to the amplifier gain.
More Information:
- Information: https://nanorfe.com/nanovna-v2.html
- Download Software: https://nanorfe.com/nanovna-v2-software.html
- User Manual: https://nanorfe.com/nanovna-v2-user-manual.html
Operation Introduction:
- Tap anywhere on the screen to open menu
- Use menu STIMULUS to set its frequency range
- Use menu CAL> CALIBRATE to calibrate
- For more details, please download and read the user manual
