SV4401A 50KHz-4.4GHz VNA Analyzer Vector Network Analyzer 100DB Dynamic International Version

SV4401A 50KHz-4.4GHz VNA Analyzer Vector Network Analyzer 100DB Dynamic International Version

Features:
- The circuit design and chip of this version comply with international certification standards, and it has FCC and CE certification
- 50KHz-4.4GHz handheld vector network analyzer
- Compact size makes it portable; fast to work in an accurate way
- 1001 scan points: present more measurement details and avoid missing key information
- 7" IPS highlight LCD screen, capacitive touch to control
- 100dB dynamic range: The well-designed RF front-end circuit has an optimized noise floor to ensure accurate and reliable measurements
- Built-in 18650 lithium battery's endurance time reach 4 hours

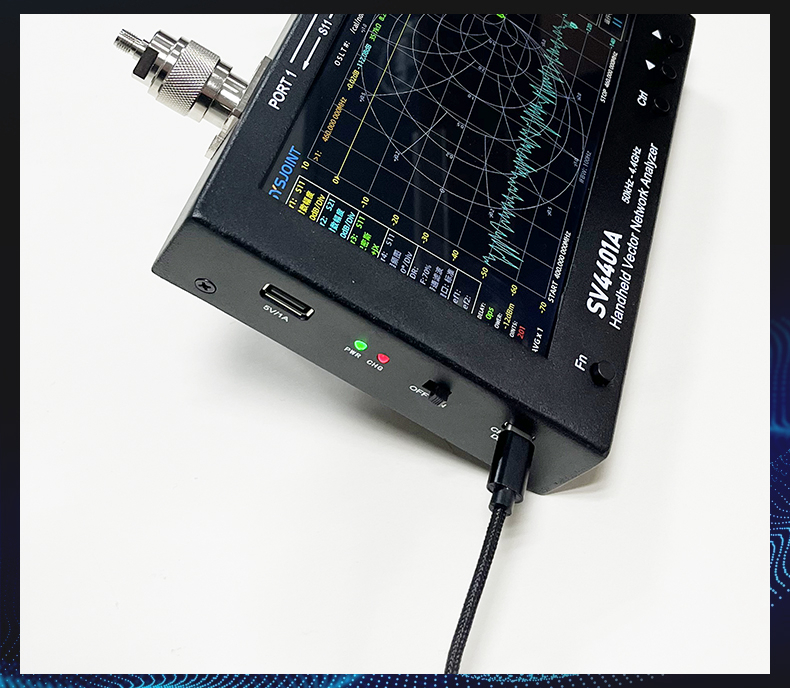

- Powered through USB type-c interface. 5V/2A charger is recommended
- Built-in 8GB memory card to store calibration status, screenshots and snp files
- Frequency range 50K-4.4GHz: Covered frequency bands include MF/LF/HF/VHF/UHF; can measure all kinds of antennas and filters, amplifiers, attenuators, cables, duplexers, couplers, etc.

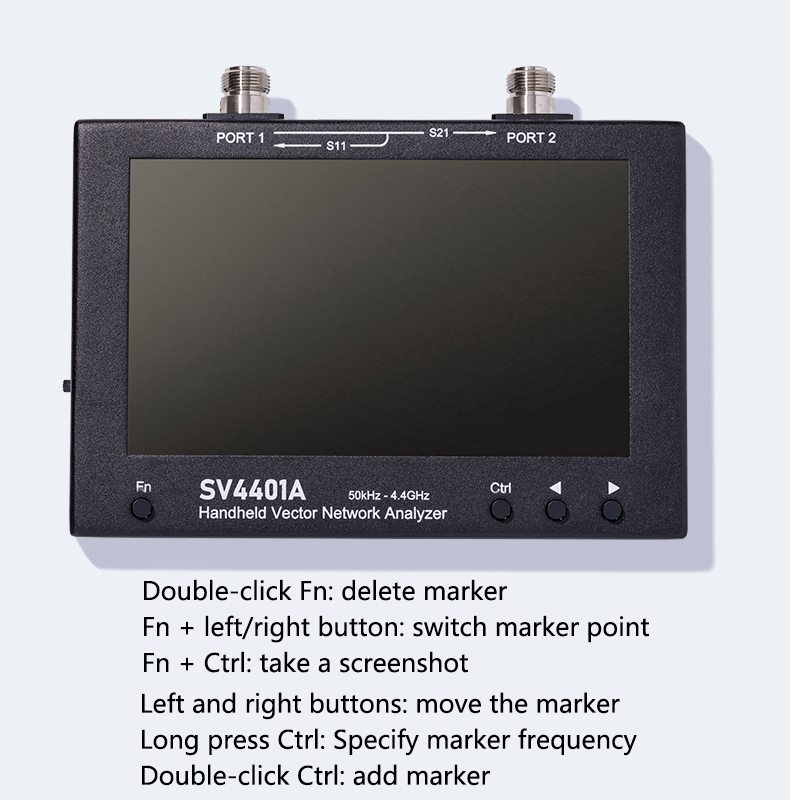

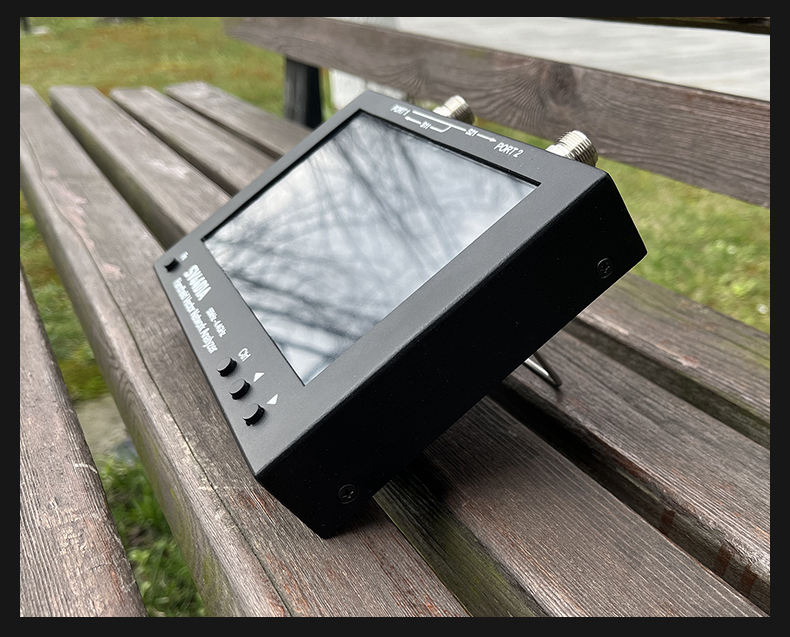

- 4 buttons + capacitive touch to complete all operation. All-metal casing can effectively shield electromagnetic interference

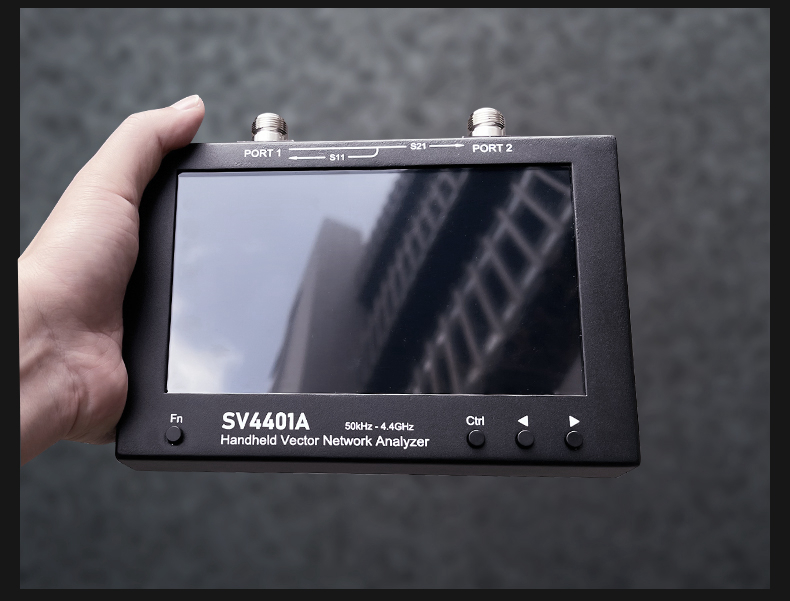

- One-hand operation mode is enabled
- Ergonomically designed with back support
- The excitation power is adjustable from -42dBm to -12dBm. Suitable for measuring the input impedance of amplifiers

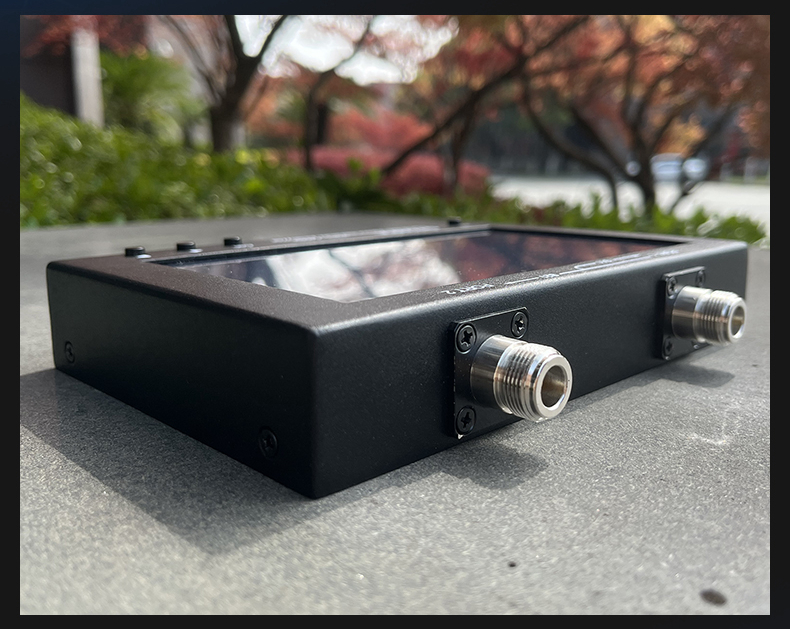

- N-type interface makes the product stable and durable
- With TDR function, this device can be used to measure cable lengths and check cable breaks
- Variable IF bandwidth: 7 kinds of IF bandwidth are available, of which large bandwidth is suitable for fast scanning, and small bandwidth can significantly reduce measurement noise
- Large-capacity storage: Equipped with 12 save/recall slots, which can quickly save/recall the calibration state. It also supports to save the calibration status as a file. The amount of storage is limited only by the capacity of memory card
- Convenient human interface

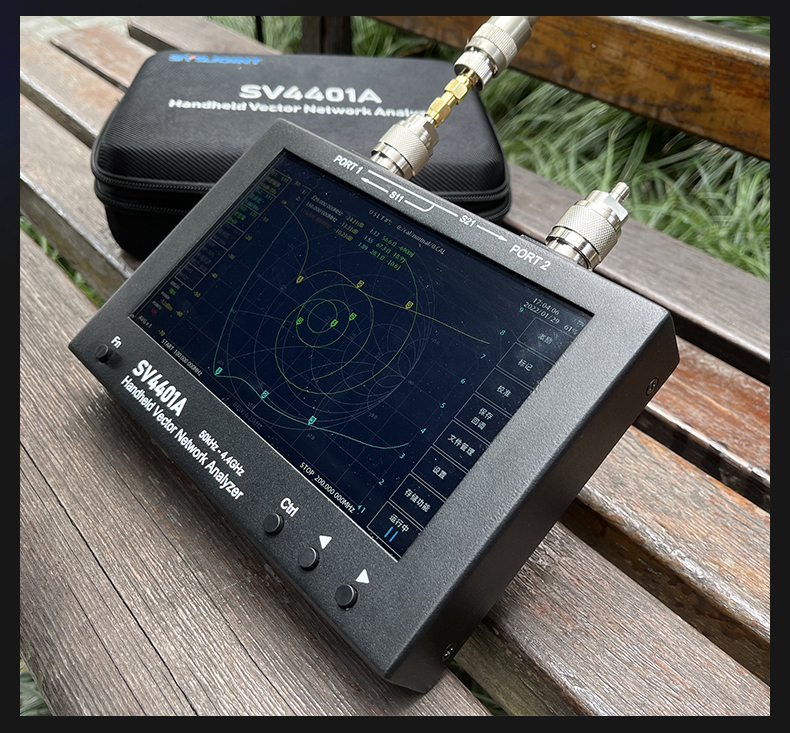

- Support logarithmic amplitude, phase-frequency diagram, group delay, Smith, polar coordinate, linear amplitude, VSWR, real part/imaginary part, resistance/reactance, quality factor and other display formats
- Quickly set start and stop frequencies, electrical delay, excitation power, sweep points and average coefficients
- Virtual U disk function: use a USB Type-C data cable to connect to your computer to access the files in the memory card (cannot take screenshots in this mode). This method can also be used for firmware upgrade
- Powerful host computer
- Product size: 190 x 130 x 30mm/7.5 x 5.1 x 1.2" (without size of RF interface)

Specifications:
- Frequency range: 50kHz~4.4GHz
- RF output power: -42dBm to -12dBm (1dB step)
- RF interface form: N-type female connector (with N to SMA adapter)
- RF input power: 0dBm Max (DC<5V)
- Frequency accuracy: <±1ppm (<140MHz); <±5kHz (>140MHz)
- S21 dynamic range: 75dB (<3GHz); 60dB (>3GHz)
- S11 dynamic range: 50dB (<3GHz); 40dB (>3GHz)
- Scan points: 1001 (can be set to 101-1001)
- Scanning speed: 400 points/second (f>140MHz)
- IF bandwidth: 12.5kHz by default (optional 6.25k/3.12k/1k/300Hz/100Hz/30Hz)
- Smoothing: arithmetic mean (average coefficient: 1~25 times)
- Number of traces: 7 (4 measurement traces, 2 reference traces, 1 TDR trace)
- Number of markers: 8
- Calibration state storage number: 12 groups (supports file storage to internal memory card)
- Storage capacity: Built-in 8GB memory card
- Display: 7" high-brightness IPS LCD screen (resolution: 1024x600)
- Operation mode: capacitive touch + physical button
- Local screenshot: support
- Power consumption: 5W
- Battery life: 4 hours (50% screen brightness)
- Battery: two built-in 18650 lithium batteries (3.6V/3350mAh x 2)
- Charging/Data Interface: USB Type-C
- Charging voltage: 4.7V~5.5V (5V/2A charging recommended)
- Power supply output: USB 5V/1A
- Shell material: iron
- Working temperature: 0℃~45℃
- Dimensions: 190 x 130 x 30mm/7.5 x 5.1 x 1.2" (without size of RF interface)
- Weight of main unit: 1.15KG/2.5LB

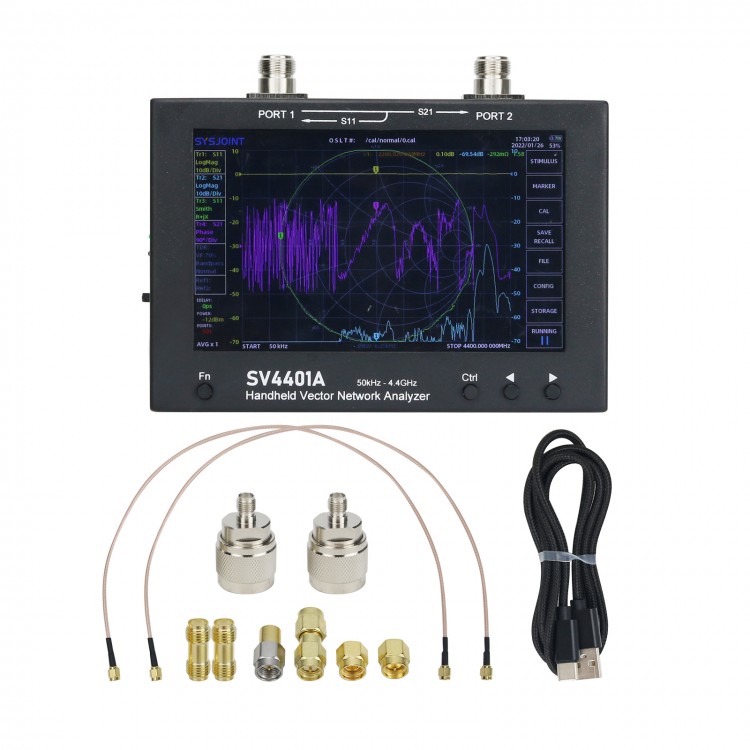

Package Included:
- 1 x SV4401A
- 2 x N to SMA Adapters
- 1 x SMA OPEN/SHORT/LOAD Calibration Kit
- 2 x SMA Double Female Straight Adapters
- 1 x SMA Dual Male Straight Adapter
- 2 x 50cm/19.7" RG316 Cables
- 1 x USB Type-C Data Cable
- 1 x Storage Bag
