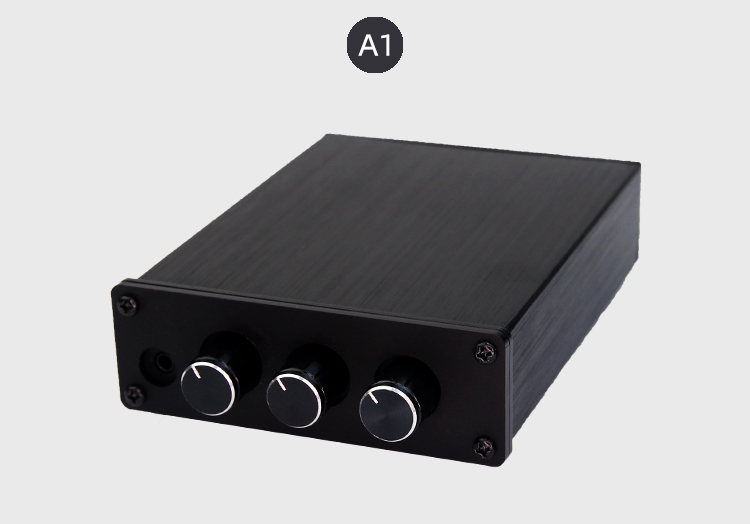

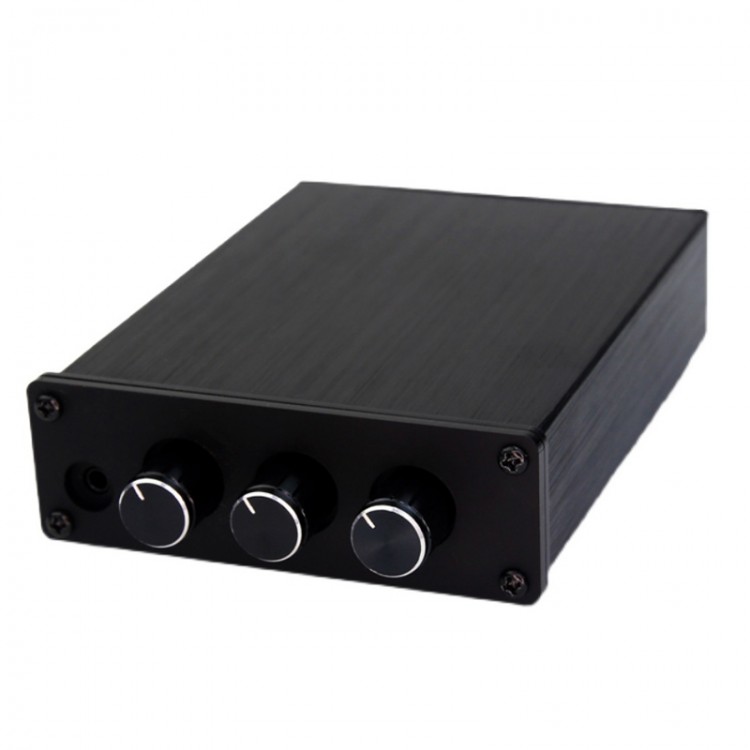

50Wx2 Digital Power Amplifier TPA3116 Hifi-Level Power Amp 2 Channel Amplifier A1a Standard Version
Features:
- Low-distortion digital power amplifier of high power
- No popping sound when powering on and off
- Independent adjustment of treble and bass
- Op amp pre-amplifier circuit
- High-quality gold-plated pure copper RCA socket

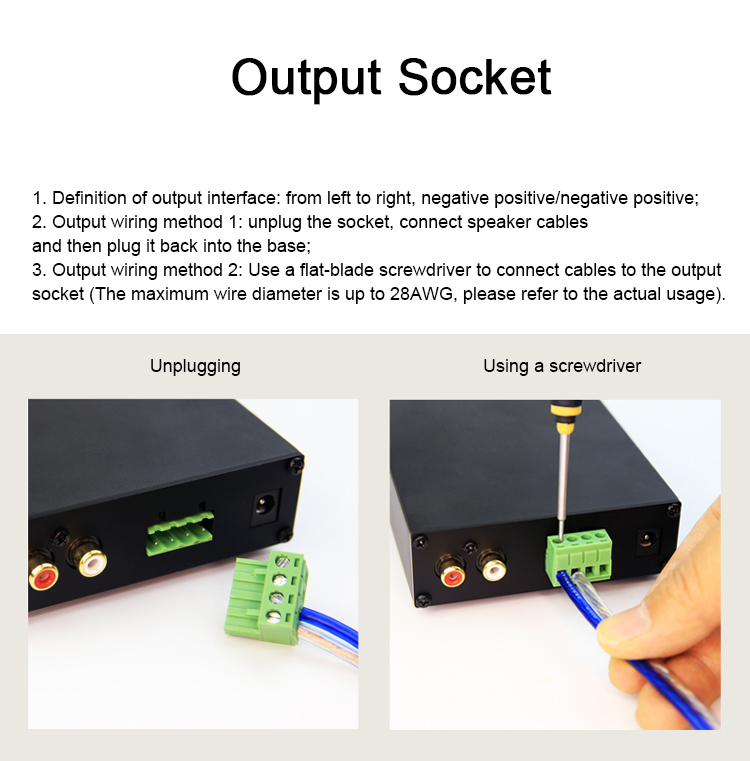

- DD split plug-in pure copper high-power terminal (The maximum wire diameter is up to 28AWG)
- DC power supply DC socket (5.5-2.1) for Foxconn
- Film capacitors for Arcotronics KEMET
- Low dielectric loss angle filter capacitor for ELNA
- Gold-plated IC socket for Nextron; pluggable design for easy replacement of the same type of in-line op amp
- Panel reserved AUX 3.5 analog signal input socket
- High-quality Taiwan RX bass adjustment knob with good damping feel
- Taiwan RX treble adjustment knob with moderate sensitivity
- Taiwan RX master volume adjustment knob (rotate counterclockwise; knob with on and off functions)
- High speed filter capacitor of low internal resistance for Nichicon
- TPA3116D2 digital power amp chip for TI
- High-current film capacitor of low inductance for Siemens EPCOS
- Sealed block inductors for YAGEO specially designed for digital power amplifiers
- MKT series high-voltage film capacitors for Vishay BC
Specifications:
- Power amplifier chip: single TPA3116D2
- Power: 50Wx2 (4Ω)
- Impedance range: 4Ω-8Ω
- Input voltage: 12V-24V (19v recommended)
- Rated power: 100w (4Ω)
- Output Channels: Left and right channels (stereo)
- Signal Input: RCA/AUX (3.5)
- Signal to noise ratio: 92db
- Harmonic Distortion: < 0.08% (1KHz 1W)
- Frequency Response Range: 18Hz-25KHz
- Magnification: 26 times
- Power-on mode: turn it on through the knob on the panel
- Dimensions: 126 x 95 x 30mm/5 x 3.7 x 1.2" (LxWxT)
- Weight: 300g/0.7lb
Package Included:
- 1 x Power Amplifier
Note:
- Power cable and other cables need to be purchased separately.
