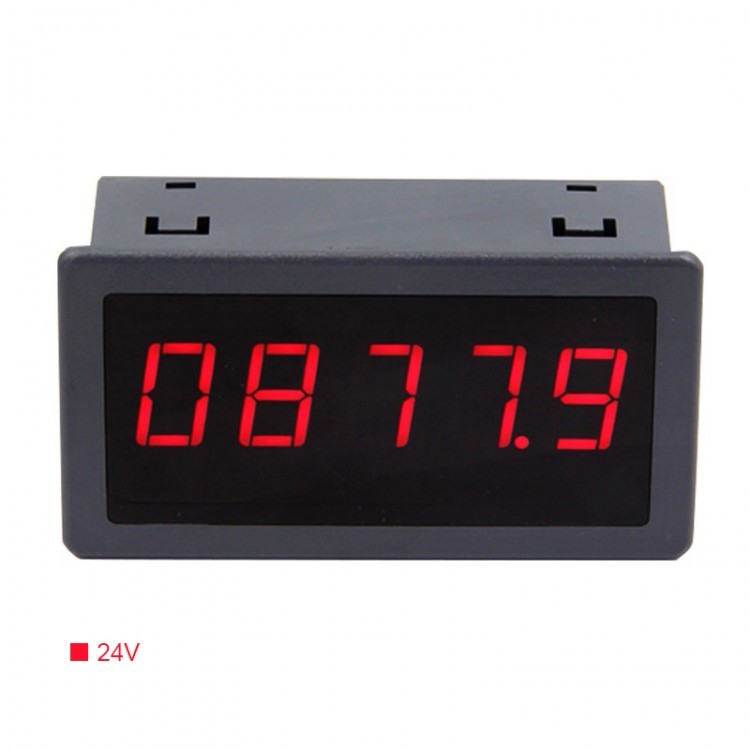

5166FR 5-Digit Frequency Meter With 0.56" LED Display Hall Switch Speed Counter 24V Power Supply

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.75
  • Price in reward points: 138 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.48 $13.20 $12.79 $12.24 Contact US
Quantity:

5166FR 5-Digit Frequency Meter With 0.56" LED Display Hall Switch Speed Counter 24V Power Supply


Parameters:

- Display digits: 5-digit LED digital tube (0.56 inches)
- Display refresh rate: signal frequency>3HZ: 3 times/sec; signal frequency ≤3HZ: approximately equal to the signal frequency.
- Overflow display: "- - - - -"
- Measurement accuracy: 0.1% ± 1digit or 0.01% at 25℃
- Measuring range:
* Frequency meter: 0.15HZ-100KHZ
* Tachometer: 9r-999.9Kr/m
- Input signal:
* Type: dry contact, PNP, NPN, pulse
* Amplitude: 3-30V and 30-300V two gears, short-circuit cap switching
- Measurement method: fully synchronized period measurement method
- Input resistance: 100KΩ/resistive
- Optional power supply: DC5V/DC7-12V/DC24V/AC6V/AC9V/AC12V, 30mA
- Withstand voltage: AC2000V, 1min, between the external terminal and the shell
- Anti-vibration: Vibration number: 10-55HZ, acceleration 50m/s2, X, Y, Z direction each 5minX10
- Operating environment (temperature and humidity): temperature -30℃ to +70℃; relative humidity 25-85% (no condensation)
- Storage temperature: -40℃ to +80℃ (no condensation)
- Dimensions: 79 x 43 x 25 mm (LxWxH)
- Opening size: 75 x 39.5 mm

Package Included:
- 1 x Set of Frequency Counter Meter

Note: If other power supply specifications are needed, please contact us when purchasing. Thank you!
