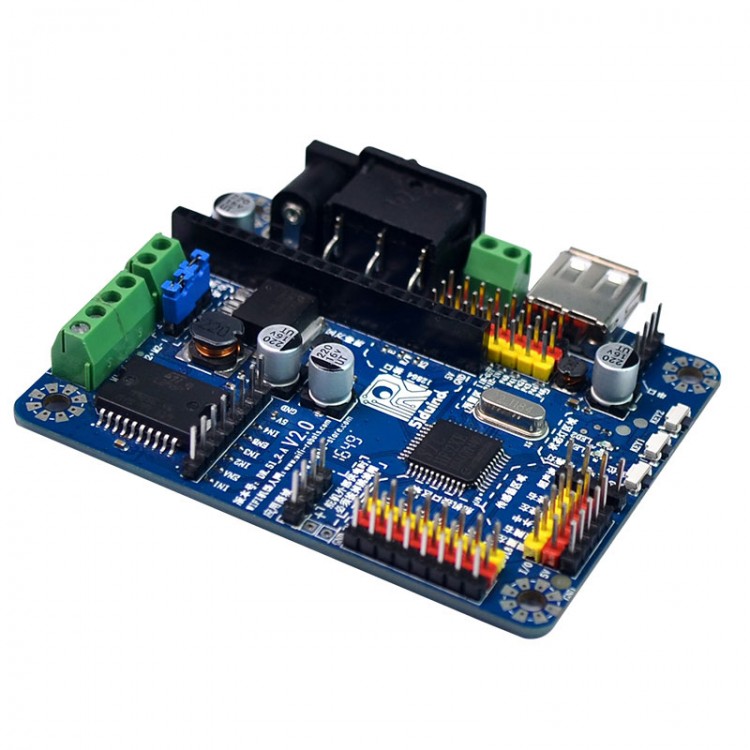

51duino Smart Car Robot Driver Board 51 Development Board for Motor Servo Sensor for Arduino

51duino Smart Car Robot Driver Board 51 Development Board for Motor Servo Sensor for Arduino

Function:
- Two channels DC motor output control
- 8 channel servo actuator PWM output control
- Two channels DC motor speed control (10)
- line patrol (switching command: FF130200FF)
- Infrared obstacle avoidance / anti drop (switching instruction: FF130300FF)
- Follow the object / obstacle avoidance (switching instruction: FF130100FF)
- Ultrasonic obstacle avoidance (switching instruction: FF130400FF)

Features:
- Come with 2 channel power supply voltage regulator system,current is 3A
- The output interface of the two way DC motor can drive 5-12V DC motor.
- Onboard 8 high-precision servo drive interface,can drive the steering gear PTZ etc..
- Main chip all IO ports are open
- Support wide voltage input,power supply can use 7V-15V lithium battery pack.
- With the 5V voltage output port,can access to other external electronic devices.
- Come with a USB powered and TTL serial communication,program recording triple interface,only with a USB data line can be a perfect fit for WiFi module.
- Built-in 51duino optocoupler isolation system,compared with other driving plate products Jerry,stability is not a level
- Standard TTL level serial communication,for WIFI module,Bluetooth module,other TTL serial communication.
- Compatible with all common robot sensor and peripherals,such as infrared,ultrasonic,photosensitive,sound,lattice, 12864,1602,etc.
- Display function

51duino function video

Package List:
- 1 x Driver Board
