Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $48.80 | $47.81 | $46.31 | $44.32 | Contact US |

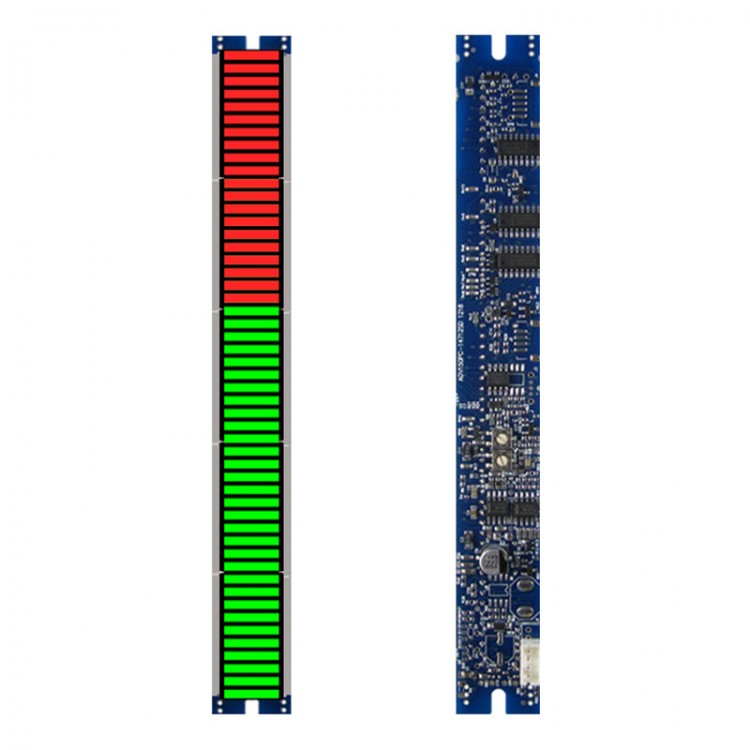

51seg 150mm LED Bargraph Display Meter Two-color Current Voltage Water Level Indicator

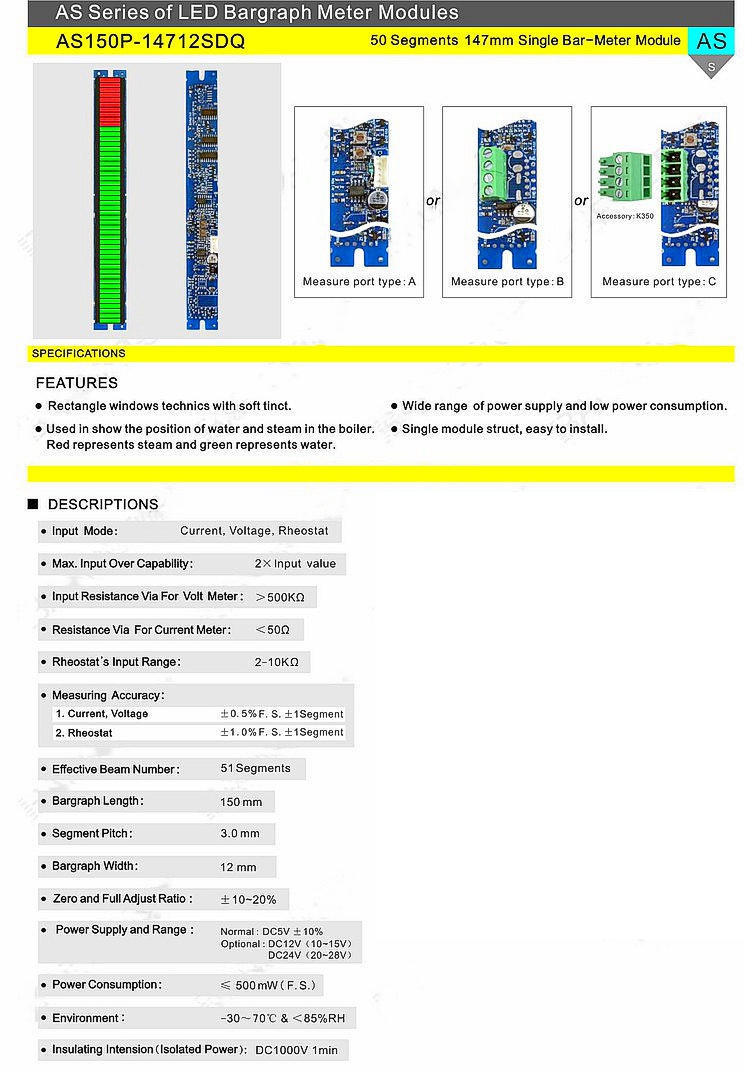

Parameter:
Tested Signal form: current, voltage, rheostat
Input allowed overload: twice the input signal
Input impedance of voltmeter: >500KΩ
Ammeter loop resistance: <50Ω
Effective display segment number: 51 segments
Light column display length: 150mm
Light column display width: 12mm
Segment spacing: 3mm
Optional power supply: DC 5V, 12V, 24V
Typical power consumption: ≤500mW (F.S.)
Measurement accuracy: current, voltage (±0.5% F.S ±1segment); rheostat (±1.0% F.S ±1segment)
Package List:
1 x LED Bargraph Display
Note:
Please leave a message about the power supply you want when purchasing. Thank you!
