57mm Air Cooling DC Spindle Motor ER16 110V 600W+Speed Governor+Motor Mount for CNC Router Engraving Machine

57mm Air Cooling DC Spindle Motor ER16 110V 600W+Speed Governor+Motor Mount for CNC Router Engraving Machine

Motor Specifications:
- Spindle motor: DC Motor NMB bearing
- Working voltage: 24-110V DC
- Power: 600W
- No load speed: 2880-13200r/min
- Torque: 600mN.m
- Insulation resistance: >2 MOhm
- Dielectric strength: 400V
- Motor body diameter: 57mm, output shaft diameter: 9.525mm
- Collet: Blade position 37mm (including nut and filling 47mm)
- Collet: Diameter  20mm
- Motor length: 232mm (including the clamping part and motor)
- Spindle net weight: 1.8KG
- Radial runout: 0.01-0.03.
- Can be used for engraving metal or nonmetal materials.　　

Speed Governor Specifications:
- Speed governor integrated power supply and controller
- Input power (VAC): AC90-260V 50/60Hz
- Output armature voltage range(VDC): 0-48/90/110/180/220
- Output armature current range (A): 8A
- Output excitation voltage range(VDC): 100/200 (Full Bridge Rectification)
- Output excitation current range (A): 1A
- Working frequency: 16KHz
- Given signal mode (V/mA): 0-5V,0-10V,4-20mA, PWM, key
- EN: On/ off
- Soft start: 0-10S
- Soft stop: 0-10S
- Double closed loop PI regulation
- IR torque compensation range: 0-100%
- Over current protection rrange: 0-set point (0 default)
- Over current protection: Display code E1
- Short circuit protection: Display code E0
- Over heating  protection: power tube temperature over 100degree C, display code E2
- Built in digital display module: Display working voltage and current
- Dimension: 140*98*38mm L*W*H
- Working environment: -10~40 degC
- Humidity: <85%

Speed Governor Features:
- Pulse width technique
- With short circuit , over current and over headting protection
- With soft start
- High and low voltage signal is fully isolated

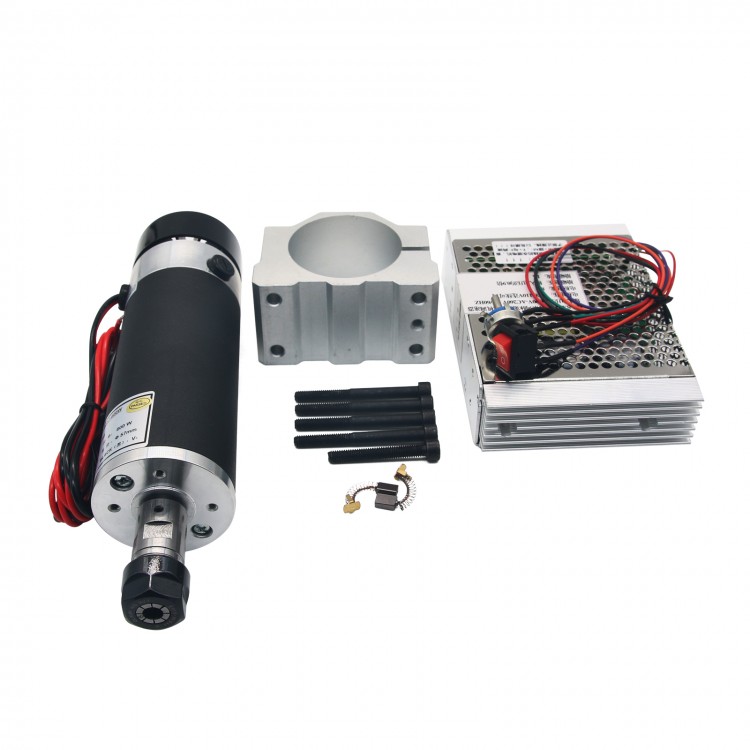

Package list:
- 1 x DC Spindle Motor
- 1 x Speed Governor
- 1 x Motor mount
