Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $145.09 | $142.13 | $137.69 | $131.76 | Contact US |

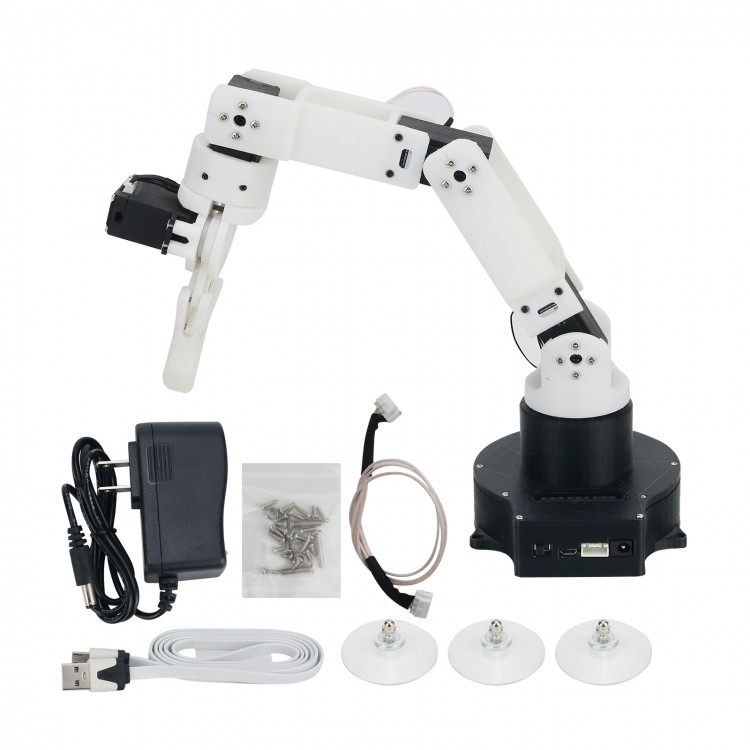

5DOF Robot Arm Mechanical Arm 5Axis Robotic Arm with Claw Open Source Finished Kit Ready to Use
Features:
- Patented Serial Bus Servo: 15kg.cm stalled torque; featuring small size, long lifespan, high precision, and RGB lights; all metal gear for longer service life; imported potentiometer for accuracy; control program is provided for bus servo with Arduino microcontroller.
- Two Control Methods:
1. PC Graphical Programming: First, adjust the angles of servos in PC. Second, save data in the controller via USB cable. Third, control wirelessly via APP for Android. It supports off-line adjustment, downloading action groups, off-line operation, adding MP3 songs. You can set actions manually adjusting the angles of servos.
2. APP WiFi Control for Android Mobile Phone: Control servo separately. Control action groups. Control via voice command. It works within 10m.
- Countless Information Provided:
PC software + APP for Android + Operation Video
Source Code for Open Source Controller + Source Code for Android APP
- Open Source Servo Controller: Source code for open source controller is provided.
- 3D Printing Frame: charming and light structure; optional colors
Parameters:
- Item Name: 3DArm Open Source Robot Arm
- Servos: 5pcs Anti-burning Bus Servos
- Controller: Arduino NodeMcu (ESP8266) Open Source Controller
- Control Ways: PC Graphical Control/ APP WiFi Control for Android
- Secondary Development: Providing source code of the controller and APP source code for Android
- Power Supply: Powered by 7.4V, 2200mAh Lithium Battery (Battery is not included)
- Frame Material: Plastic, 3D Printing Technology
- Age: 14+
- Size: 120 x 120 x 450mm
- Optional Color: Blue, White
- Weight: 0.85kg
Package Included:
- 1 x Finished Robotic Arm
Note: Please tell us the color you want when purchasing. Thank you!
